Fiber Optic MPO Metal Cassete 24cores with MPO to LC adapters

Product application:

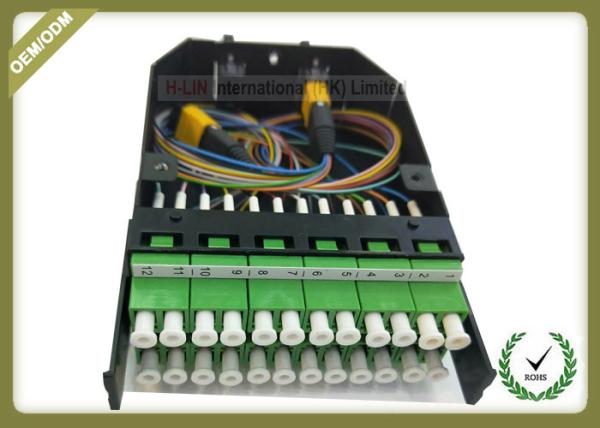

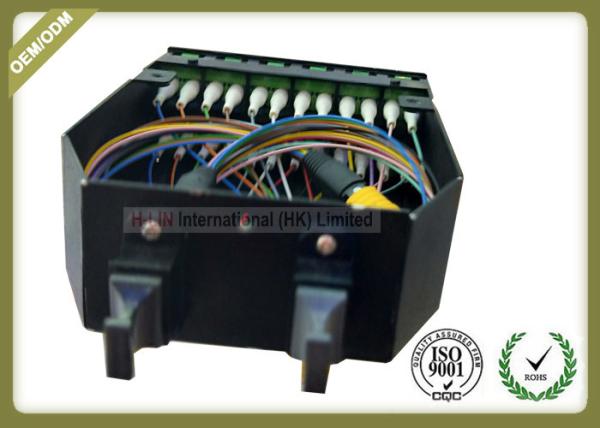

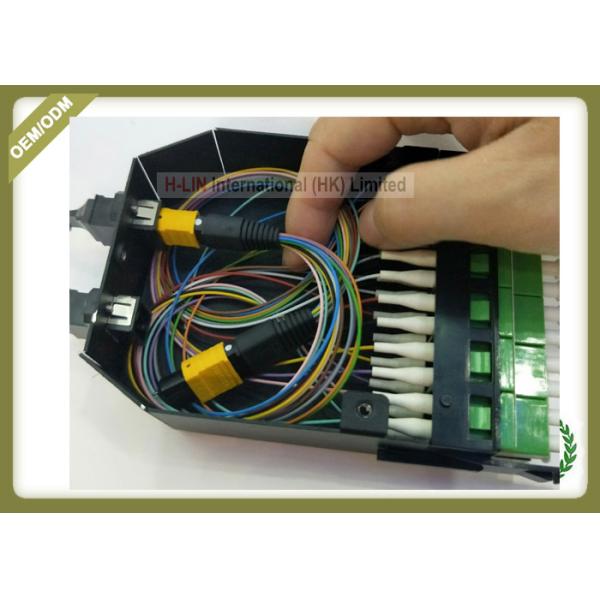

MPO / MTP - LC pre-termination module box, mainly is the trunk cable terminal 12 core MPO connector branch into a dual-core conventional connector. The front end of the module box is the LC adapter (flange) port. Twelve duplex or six quadruple adapters are usually used, and two MPO or MTP adapters are installed on the back. In the module box, the front LC duplex adapter (flange) is directly connected with the back MPO or MTP adapter to form an integral whole for the transfer skipping fiber. Each independent MPO/MTP-LC pre-terminal module box is placed in the fiber optic wiring rack to form a complete MPO/MTP-LC fiber optic wiring rack (box).

Product characteristics:

1, convert the 12 core MPO/MTP connector branch to the LC duplex connector.
2, low loss connection, easy to play the large transmission performance of optical fiber.
3, the front panel is equipped with LC adapters, and the rear panel is equipped with MPO/MTP adapters.
4. The box is designed scientifically, using high-quality engineering plastics and aluminum alloy materials, coated with electrostatic spraying, beautiful and simple appearance, easy to use;
5, all ports are marked on the front end, easy to identify and find.

Product composition

A 24 core distribution box Cassette
Two MTP adapters
Twelve dual core LC adapters (without flanges)
Two 12 core MPO-LC jumpers, optional MPO or MTP type, MPO is male or female designated by the customer.

Product advantages

1. meet international standards IEC-61754-7 and TIA-604-5 (FOCIS5)
2.100% ensure stable performance through FLUKE LINK standard testing.
3. there are no defects or scratches on the surface.
4. if there is any quality problem, we can replace it free of charge.

Product performance

Insertion loss: single mode less than 0.18dB
Return loss: PC > 45dB UPC > 50dB, APC > 60dB; MPO insert more than 500 times, insertion loss variation <0.20dB
Tensile strength: 45Kg (except for 0.9SM fiber)

MPO/MTP high density optical fiber pre termination module box (module)
- cloud computing big data era optical fiber products
