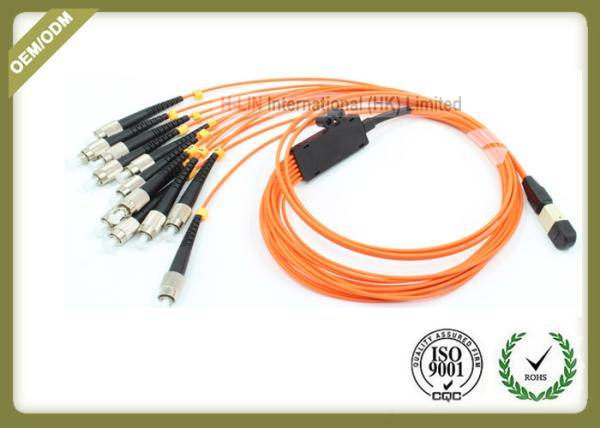

Optical fiber jumper MPO/FC MM 12 core bundle optical fiber jumper MPO switching optical fiber jumper

Product Description:

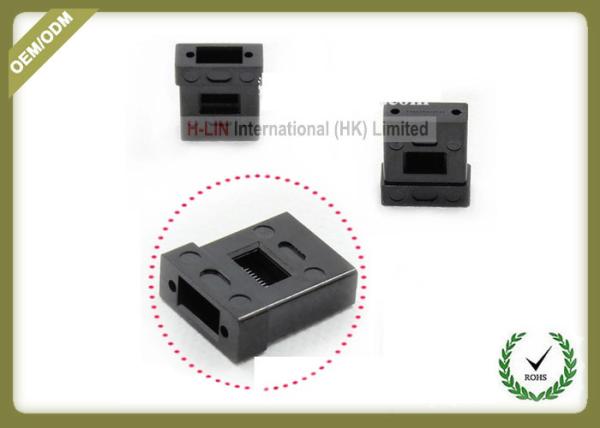

MPO (Multi-fiber Push On) is collectively called MT series connector. The core of MT series connector is precisely connected with the guide pin (also called PIN pin) by two 0.7mm diameter guide holes on the end face of the core. MPO can have 2-12 core design, and can be up to 24 core. At present, the most used connector is 12 core connector. The compact design of MPO makes it have a large number of cores and a small volume. It is widely used in the interconnection of FTTX, 40/100G SFP, SFP + and other transceiver devices in the high density integrated fiber line environment. With 16 years of production management experience, Jiawan can provide a variety of switching and non-switching MPO jumpers. There are many types of switching MPO, such as bands and bundles. Through branching devices (round or square), 2-24 core 0.9 or 2.0 fiber optic cable branches can be switched out. The type of connection head is specified by the customer, and the length and other requirements are optional by the customer. The products meet the requirements of Telcordia-GR-326, IEC and Rohs.

MPO connector also has two methods, with fixed needle male head, and without needle female head, generally not required, the default is the mother head.

According to the connection mode of both ends, the arrangement order of optical fibers has special requirements. The arrangement of optical fibers includes parallel arrangement, cross arrangement, etc. Please confirm the connection mode with the form of drawings.

Specifiaction:

Application:

•Industrial automation and control bus system

•Industrial robots intelligent system and servo system

•Communication exchange system

•Digital multimedia systems

•Medical sensing system

•Power system,ect

MPO/MTP applications, compatibility is extensive, derived from high quality, MPO/MTP 1U 12 core 24 core 2U48 core 96 core wiring rack integrated module perfect fit connection, 10G 40G 100G fiber network card, 10 Gigabit fiber optic equipment seamless compatible transmission smoothly

Ordering option:

MPO/MTP-LC,SC,FC,ST Three types method,if without special requriement,it will be Method A as usual
