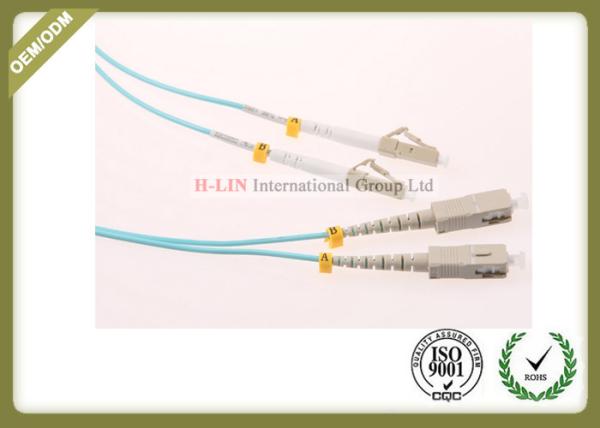

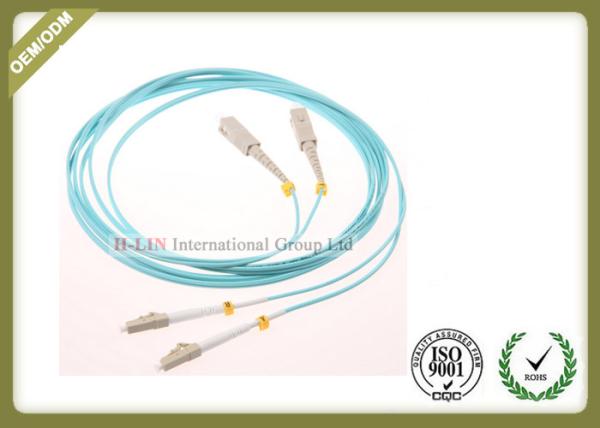

LC - SC OM3 Fiber Optic Patch Cord Multimode Duplex 30m 50/125 10Gb Aqua
LC - SC OM3 Fiber Optic Patch Cord Multimode Duplex 30m 50/125 10Gb Aqua
LC - SC OM3 Fiber Optic Patch Cord Multimode Duplex 30m 50/125 10Gb Aqua
LC - SC OM3 Fiber Optic Patch Cord Multimode Duplex 30m 50/125 10Gb Aqua
LC - SC OM3 Fiber Optic Patch Cord Multimode Duplex 30m 50/125 10Gb Aqua
LC - SC OM3 Fiber Optic Patch Cord Multimode Duplex 30m 50/125 10Gb Aqua
LC - SC OM3 Fiber Optic Patch Cord Multimode Duplex 30m 50/125 10Gb Aqua
LC - SC OM3 Fiber Optic Patch Cord Multimode Duplex 30m 50/125 10Gb Aqua
Specifications
Brand Name :
H-LIN
Model Number :
LC-SC MM OM3
Certification :
CE/ROHS/IOS9001
Place of Origin :
Shenzhen China
MOQ :
20 Piece/Pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4000 Piece/Pieces per Day
Delivery Time :
5days after payment
Packaging Details :
1 piece in a separate plastic bag, 10pcs or 15pcs for a big plastic bag. With the export standard carton
Cable Diameter :
3mm/ 2mm/0.9mm
Fiber Core :
OM3 50/125um
Polish Type :
UPC/PC/APC
Outer Jacket Material :
PVC/LSZH
Color Code :
Aqua
Operating tempeature :
-40~75°C
Description

LC to SC OM3 Fiber Patch Cable Multimode Duplex

Product Description

A Multimode OM3 50/125um Fiber Patch Cable with Future-Proof Speed and a Reliable Connectivity. This cable provides exceptional transmission performance and low signal losses. It has easy to identify white boots with yellow (A, B) Plastic rings markers and also feature a Removable dust caps for a clean fiber and a great connectivity.


Features

Simplex or duplex or multi fiber assemblies
Riser or Plenum rated, LSZH and RoHS cables available
Low insertion loss, IEC, TIA/EIA, Telcordia compliant
Custom fiber optic cable lengths and jacket colors
Various fiber types and wavelengths, typical 9/125 single mode, 50/125 multimode and 62.5/125 multimode
0.9 / 1.8 / 2.0 / 3.0 / mm outer diameter fiber optic cables
PC, UPC, and APC polish types
Good packing, competitive prices and very fast delivery
100% geometry test anc IEC cleaning test are available
OEM service is avaibable

Maximum Bandwidths and Distance of Different Multimode Fibers

Fiber Type Core Diameter bandwidth 1Gbps Distance 10Gbps Distance
850nm Mhz*km 1300nm Mhz*km @850nm @1300nm @850nm @1300nm
OM1 62.5 µm 200 500 275m 550m 33m 300m
OM2 50 µm 700 500 750m 550m 150m 300m
OM3 50 µm 1500 500 1000m 550m 300m 300m
OM4 50 µm 3500 500 1000m 550m 550m 550m

Specification

Connector LC to SC Jacket OD 2.0mm
Fiber Type 50/125μm Fiber Count Duplex
Polish Type UPC to UPC Jacket Material PVC/LSZH/OFNP
Insertion loss ≤0.3dB Interchangeability ≤0.2dB
Return loss ≥50dB Vibration ≤0.2dB
Minimum Bend Radius 30mm Storage temperature -40~75°C
Fiber Grade G.652.D Polarity A(Tx) to B(Rx)

H-Lin lso provides OEM services, such as length, color, fiber grade, fiber connector, specification, material, package etc.

Applications
1, Telecommunications or Data communications
2, Telecommunications, Military industry, Medical,
3, CATV, LAN, MAN, WAN, Test & Measurement
4, Systems Integration for Railway, Metro and Access Network
5, Fiber to the Indoor (FTTX) Test

Products Show

LC - SC OM3 Fiber Optic Patch Cord Multimode Duplex 30m 50/125 10Gb Aqua
