IP65 Grade NEW DESIGN ABS waterproof terminal Box 8core can be for 1*4 or 1* 8 Splitter

ABS terminal Box 8core for fusion ,split and distribution for end use

Description:

This product integrates fusing, splitting and wiring. It can realize direct fusing and divergence of optical cable. It is suitable for terminal access of client and wiring connection of optical communication equipment. Through the adapter of box, optical signal is drawn out by optical hopping wire to realize optical wiring function. It can also be fused with the household optical cable after the splitting wire is opened and coiled to realize the direct function of the optical cable and meet the needs of the traditional transmission network engineering.

Product characteristics:

A, the product is made of high quality impact resistant plastic, and has a standard user interface.
B, which can accommodate 1x4 or 1x8 PLC splitter.
C, has the function of anti ultraviolet, impact and waterproof.
D, hanging wall or holding pole installation;

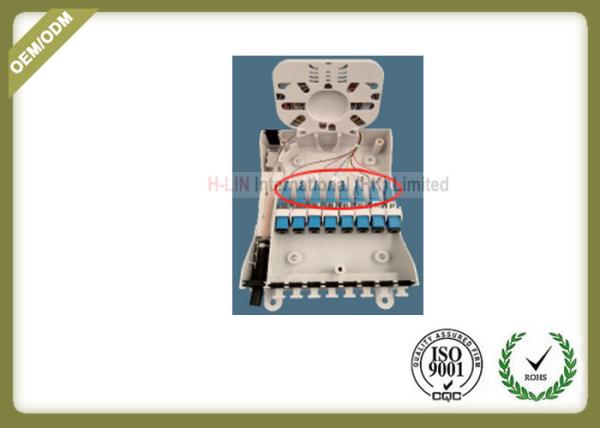

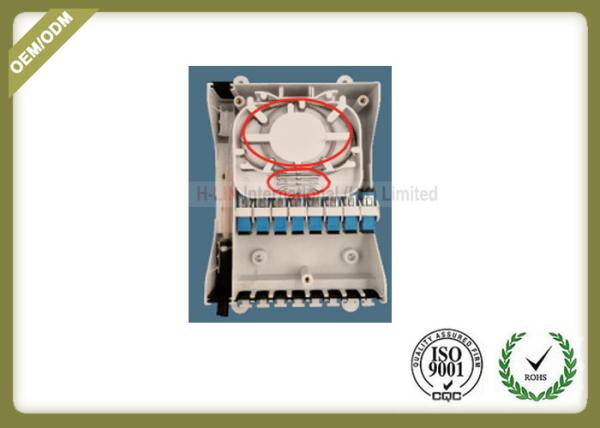

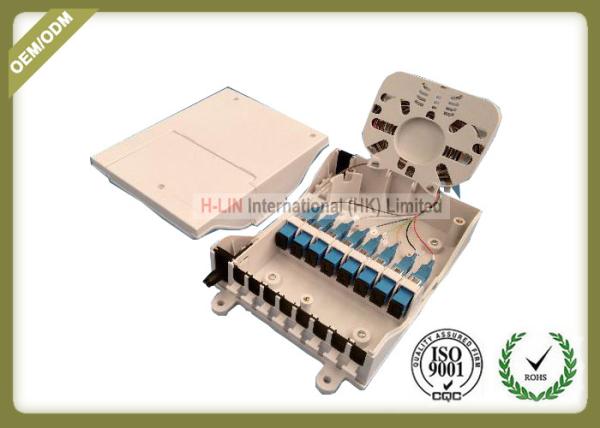

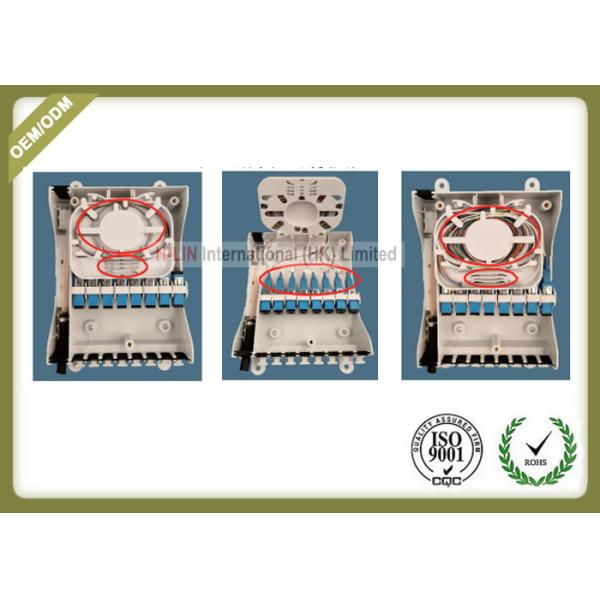

E. Unique flip core, larger fiber space, more obvious weld zone and wiring zone, reduce the line crossing.

Technical indicators

Optical fiber curvature radius: 40mm
Additional loss of fiber optic disc: less than 0.01dB
Temperature range: - 40 C ~ + 70 C
• lateral pressure resistance: greater than 2000N / 10 cm
Shock resistance: greater than or equal to 20N.m
Protection level: IP65

Installation procedure:

1:Install adapter on flange rack.

2. Peel off the fiber optic cable, remove the outer sheath, inner sheath, loosening pipe, clean and remove the oil filling paste in the cable, leaving 0.8-1.2 m fiber length and 30-50 mm steel core; the fiber optic cable passes through the entrance, tighten the fiber optic cable with a tie, and fix the reinforcement core.

3: The optical fiber is introduced into the disc core to be reserved and coiled, and the end is led to the welding groove.

4. The PLC shunt is installed in the core chute, and the tail fiber is arranged by the core and inserted into the bottom box adapter. The end of the tail fiber is led to the weld groove, which is fused with the heat-shrinkable pipe, and the protected fiber connector is clamped into the cloth chute.
(it can also be used as wiring).

5 Button on the box cover, insert the outlet pigtail, pass through the sealing rubber at the exit, and tie the cable out.

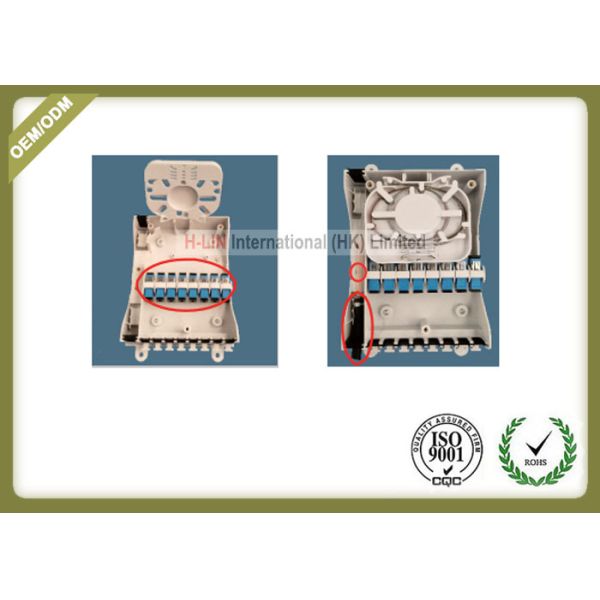

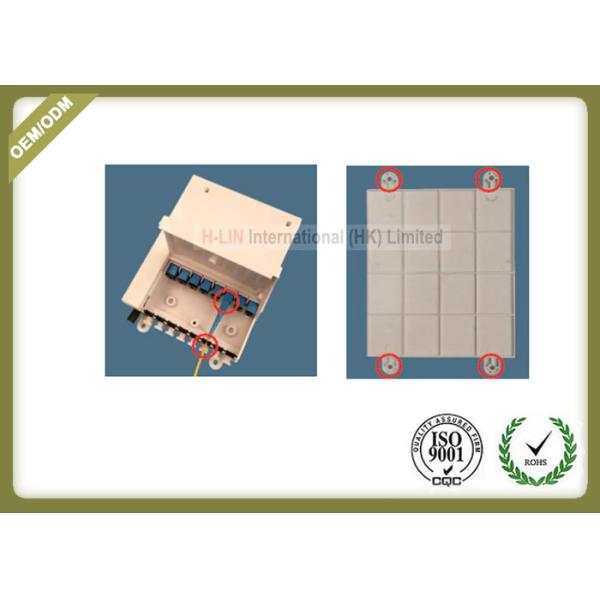

6. Use expansion screws to fix the required positions and install them; install holes: F5
