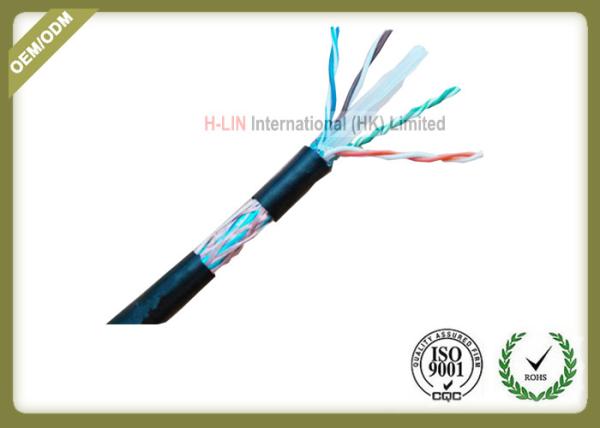

8 Conductors Network Fiber Cable , Cat6 SFTP Cable With 0.58mm Diameter Pass Fluke Test
8 Conductors Network Fiber Cable , Cat6 SFTP Cable With 0.58mm Diameter Pass Fluke Test
8 Conductors Network Fiber Cable , Cat6 SFTP Cable With 0.58mm Diameter Pass Fluke Test
8 Conductors Network Fiber Cable , Cat6 SFTP Cable With 0.58mm Diameter Pass Fluke Test
8 Conductors Network Fiber Cable , Cat6 SFTP Cable With 0.58mm Diameter Pass Fluke Test
8 Conductors Network Fiber Cable , Cat6 SFTP Cable With 0.58mm Diameter Pass Fluke Test
Specifications
Brand Name :
H-LIN
Model Number :
Cat6 SFTP cable
Certification :
UL,ROHS,CE,QC,CCC.
Place of Origin :
Shenzhen China
MOQ :
50 Box/Boxes
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60000 Box/Boxes per Month
Delivery Time :
8days after payment
Packaging Details :
1. Pull out pox 305m/pull out box, 2boxes/outer carton. 2. Plastic reel 3. Wooden reel 4. As client' s request .
Number of Conductors :
8
Conductor :
Solid Copper,Bare Copper,Pure Copper
Jacket Material :
PVC or LSZH
Diameter :
4*2*0.56MM
Color :
Blue,Grey , Black or as request
Length :
305m(1000ft) / Roll or 500m/Roll
Description

Wires cable laptop computer use Cat6 Ethernet SFTP network cable OEM available CE/ROSH/UL

Product introduction:


Name:Six kind of double shielded network line
Model: CAT6 S-FTP 23AWG
Line diameter: 23AWG (single strand 0.57MM)
Material: copper content 99.99% oxygen free copper
Insulation: 0.98MM HDPE (high density polyethylene)
Shielding layer: transparent mare film +0.50MM single copper clad aluminum ground wire
Aluminum foil +96*0.12MM copper clad aluminum woven network
Sheath: PVC environmental protection sheath
External diameter: 6.5 + 0.1MM
Length: 300 meters foot
Packing: high grade color box
Warranty: 50 years (human factors, except natural disasters)
Application: Applicable to home decoration, broadband network construction, intelligent community, commercial office buildings, hotels, transportation departments, campus network and other occasions

Oxygen free copper 99.99%, single crystal oxygen free copper produced by UP-OCC technology, without directivity, high purity, corrosion resistance, and extremely low electrical impedance, makes wire rod suitable for high speed and high quality transmission signal

Transmission performance exceeds TIA/EIA-568B six standards
Impedance: 100ohms + 15, IMHzto 200MHz
Transmission delay: 538ns/100m max.@100MHz
Delay offset: 25ns Max
Bending radius: 1 inches (4 times the diameter of cable)
Conductor resistance: 8.9 ohms max/km
Capacitor: 5.6NF max/100m
DC resistance: less than 7.16 Omega
Pressure resistance: 300 volts AC or DC
Rated rate: 70 nom%
UL/NEC level: CMR
Accreditation: UL listed file no.E138034 ETL verified TAI/EIA-568-B categorg5e
Temperature of working environment: - range from 20 to 75
The temperature of the storage and transportation environment: - between 20 and 80

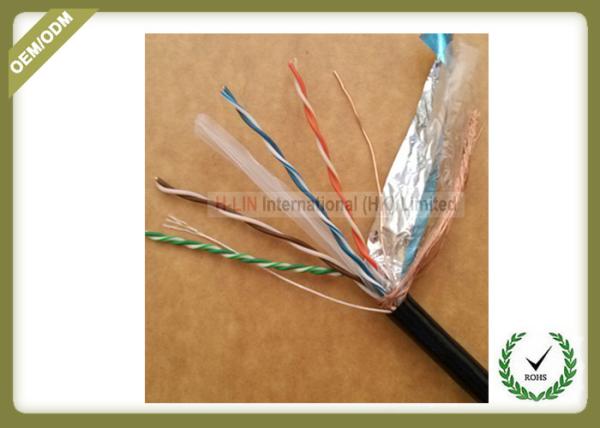

Specification

Inner conductor Material Bare Copper
Diameter 0.57 ± 0.01mm (23AWG)
Insulation(Dielectric) Material Color-coded PE (Polyethylene)
Thickness ≥ 0.21mm
Diameter 1.03 ± 0.01mm
Cross Separator Material Plastic
Shielded Layer First Layer Aluminum Foil
Second Layer Crystal Foil
Third Layer Al-Ma Alloy Braid
Outer Jacket Material PVC
Thickness ≥ 0.65mm
Nominal O.D 6.80mm ± 0.10mm
Color Blue
Twisted pair N/A

Pair 1 : Blue, White / Blue

Pair 2 : Orange, White / Orange

Pair 3 : Green, White / Green

Pair 4 : Brown, White / Brown

No.

Item

Conductor

Pairs No.

Insulation Dia(mm)

Jacket Dia(mm)

 Screening Type

1

FTP CAT6

23AWG

4

1.10±0.02

7.0±0.02

 Foil

2

SFTP CAT6

23AWG

4

1.10±0.02

7.5 ±0.02

 Foil+Braids

8 Conductors Network Fiber Cable , Cat6 SFTP Cable With 0.58mm Diameter Pass Fluke Test

Application as follow:

8 Conductors Network Fiber Cable , Cat6 SFTP Cable With 0.58mm Diameter Pass Fluke Test
