ABS Material Fiber Optic Tools , 2 Cores Fiber Optic Termination Box With SC APC Adapter
ABS Material Fiber Optic Tools , 2 Cores Fiber Optic Termination Box With SC APC Adapter
ABS Material Fiber Optic Tools , 2 Cores Fiber Optic Termination Box With SC APC Adapter
ABS Material Fiber Optic Tools , 2 Cores Fiber Optic Termination Box With SC APC Adapter
ABS Material Fiber Optic Tools , 2 Cores Fiber Optic Termination Box With SC APC Adapter
ABS Material Fiber Optic Tools , 2 Cores Fiber Optic Termination Box With SC APC Adapter
ABS Material Fiber Optic Tools , 2 Cores Fiber Optic Termination Box With SC APC Adapter
ABS Material Fiber Optic Tools , 2 Cores Fiber Optic Termination Box With SC APC Adapter
Specifications
Brand Name :
H-Lin
Model Number :
HL-002C
Certification :
ISO9001
Place of Origin :
Shenzhen China
MOQ :
1 Piece
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000 Piece/Pieces per Week
Delivery Time :
7~10days after payment
Packaging Details :
By carton
Fiber port :
2
Material :
ABS
Suitable for adapter :
SC,LC
Size :
63(W)*76（D)*63(H)mm
Application :
FTTH,Indoor
Color :
white or grey for option
Description

Fiber Optic Terminal Box 2cores ABS material with SC APC adapter

Indoor 2port FTTH Fiber Optic faceplate Distribution Box of Sc connectorIndoor 2port FTTH Fiber Optic faceplate Distribution Box of Sc connector

Product description

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system .The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.

1. Summary:


1, suitable for multi type module installation, applied to the workspace cabling subsystem.
2. Embedded face frame, easy to install and disassemble, with protective door and dustproof. LOGO can be printed according to customer requirements.
3. Optical fiber SC/LG single-work, duplex and other different environments open and dark panel, all module combinations can be configured according to customer choice.
4. All modules are no welding mode.

Two. The scope and use of use:
1. Telecommunication network, metropolitan area network, optical fiber communication system
2. Optical fiber test instrument / instrument
3, optical fiber CATV, fiber sensor
4, fiber optic broadband access network, FTTH fiber entry
5. Optical fiber distribution rack, rack type and wall mounted optical fiber distribution unit.

Technical Parameter

Environmental requirement
Main technical data
Product Name
Indoor 2port FTTH Fiber Optic faceplate Distribution Box of Sc Type
Insertion Loss
≤ 0.2 db
APC return Loss
≥ 60 db
UPC return Loss
≥50 db
Working temperature(℃)
-40~+75
Relative humidity
≤85%
Atmospheric pressure
70kpa~106kpa
Size 2 core
168* 102*32 mm
Size 4 core
186*116*41 mm
Size 6 core
196*116*41mm
Size 8 core
223*180*48mm
Size 12 core
310*224*73mm
Size 24 core
317*237*101 mm
Size 32 core
420*320*132mm

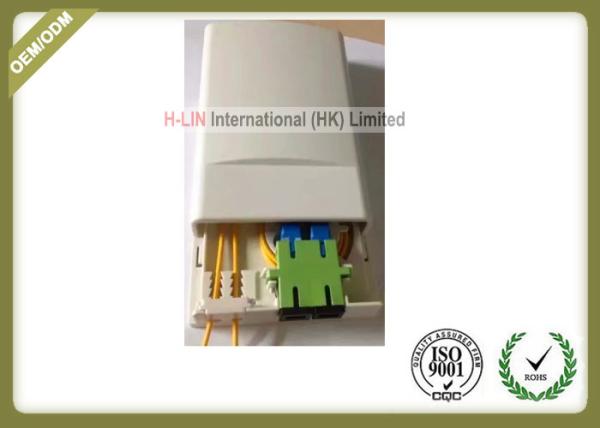

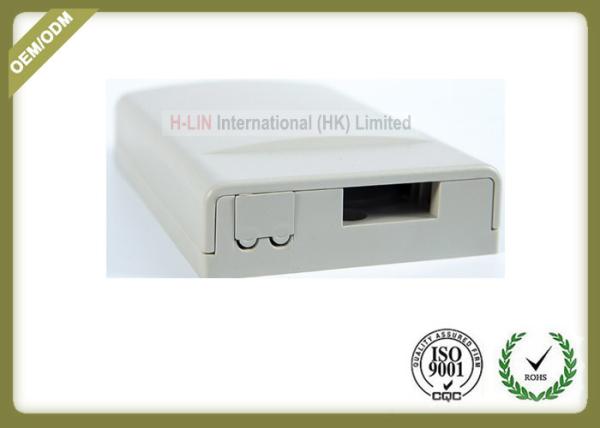

Product show

ABS Material Fiber Optic Tools , 2 Cores Fiber Optic Termination Box With SC APC Adapter

ABS Material Fiber Optic Tools , 2 Cores Fiber Optic Termination Box With SC APC Adapter
