LC / UP Simplex Fiber Optic Patch Cord 1310nm Wavelength With PVC / LSZH Jacket
LC / UP Simplex Fiber Optic Patch Cord 1310nm Wavelength With PVC / LSZH Jacket
LC / UP Simplex Fiber Optic Patch Cord 1310nm Wavelength With PVC / LSZH Jacket
LC / UP Simplex Fiber Optic Patch Cord 1310nm Wavelength With PVC / LSZH Jacket
LC / UP Simplex Fiber Optic Patch Cord 1310nm Wavelength With PVC / LSZH Jacket
LC / UP Simplex Fiber Optic Patch Cord 1310nm Wavelength With PVC / LSZH Jacket
Specifications
Brand Name :
H-LIN
Model Number :
LC/UPC pigtail
Certification :
CE/ROHS/IOS9001
Place of Origin :
Shenzhen China
MOQ :
50 Piece/Pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Piece/Pieces per week
Delivery Time :
5days after payment
Packaging Details :
1 piece in a separate plastic bag, 10pcs or 15pcs for a big plastic bag. With the export standard carton
Connector :
LC/UPC
Fiber Mode :
9/125μm
Fiber Type :
Simplex
Cable Diameter :
0.9mm
Wavelength :
1310nm/1550nm
length :
1m/3m/customized
Description

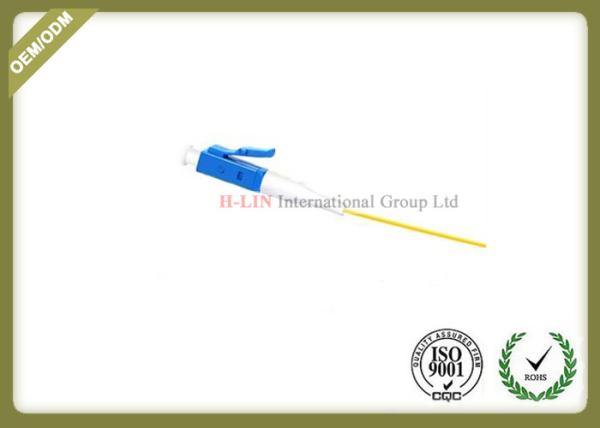

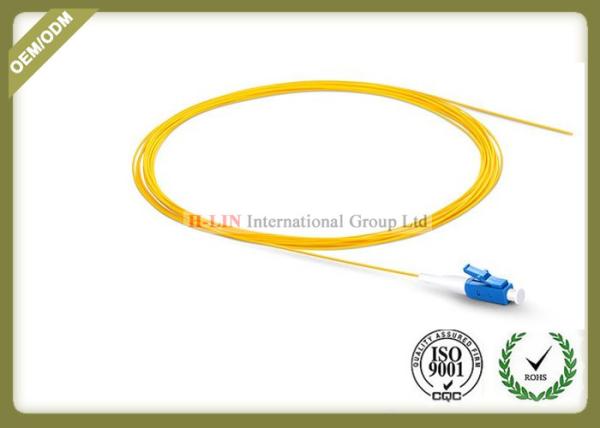

LC/UPC Single mode simplex fiber Optic pigtail 0.9mm PVC Jacket

Product Description
Fiber optic pigtail is only one end has a connector, through the welding and other fiber optic cable core connected, often appear in the fiber terminal box, for connecting fiber optic cable and fiber transceiver (Also used between couplers, jumpers, etc).

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Specifiaction

Connector A LC Connector B Unterminated
Fiber Mode 9/125μm Fiber Type Simplex
Polish UPC Cable Diameter 0.9mm
Jacket Material PVC Jacket Color Yellow
Wavelength 1310nm/1550nm Durability >1000 Times
Insertion Loss ≤0.3dB Interchangeability ≤0.2dB
Return Loss ≥50dB Vibration ≤0.2dB
Operating Temperature -40~75°C Storage Temperature -45~85°C


Features
High credibility and stability
Low insertion loss, high return loss
microscope inspecting
Good in repeatability and exchangeability

Excellent Polished and 100% tested


Applications:

  • Data transmission
  • Telecommunication
  • WBN
  • Testing equipment
  • Optical fiber CATV
  • LAN indoor

LC / UP Simplex Fiber Optic Patch Cord 1310nm Wavelength With PVC / LSZH Jacket

LC / UP Simplex Fiber Optic Patch Cord 1310nm Wavelength With PVC / LSZH Jacket
