Outdoor optical fiber cable GYTS with light armored PE jacket black color

Description:

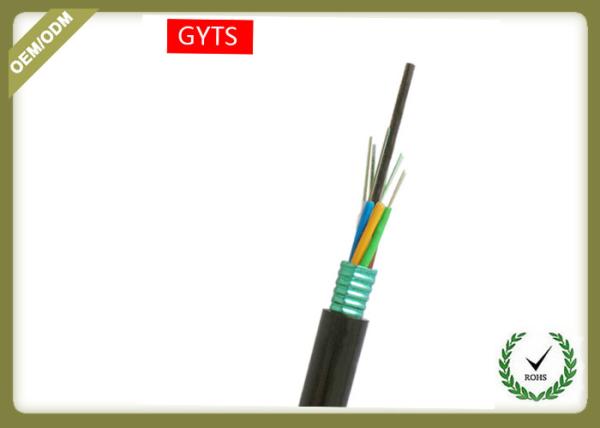

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

Specifications:

Special tube filling compoud ensure a critical protection of fiber

Special design compact structure is good at preventing loose tubes from shrinking

Steel wire used as the central strength member

PSP enhancing moisture-proof

Our High quality PE sheath

High Strength,

Resistance to aging,

easy peel,l

ong working life,

good bending performance

Our Corrugated Steel tape Increased mechanical strength and improve the anti erosion capacity

Technical Parameters:

Characteristic

1. Accurately controlling the excess length of optical fiber ensures that the optical cable has excellent tensile and temperature characteristics.

2. The loose sleeve material itself has good water resistance and high strength. The tube is filled with special ointment, and the fiber is protected critically from pressure and softness.

3. PE sheath has excellent UV radiation resistance and environmental stress cracking resistance.

4, the following measures should be taken to ensure the waterproof performance of the cable.
A) single steel wire central reinforcement;
B) fill the loose tube with special adhesive.
C) 100% cable core filling;
D) GYTA double-sided plastic coated aluminum strip (APL) to improve the anti penetration capacity of optical cable.
E) good water blocking material prevents longitudinal seepage of optical cable.
