Indoor 2 Core FTTH Fiber Optic Drop Cable Single Mode With Messenger Steel Wire
Indoor 2 Core FTTH Fiber Optic Drop Cable Single Mode With Messenger Steel Wire
Indoor 2 Core FTTH Fiber Optic Drop Cable Single Mode With Messenger Steel Wire
Indoor 2 Core FTTH Fiber Optic Drop Cable Single Mode With Messenger Steel Wire
Specifications
Brand Name :
H-LIN
Model Number :
FTTH-GJXFH
Place of Origin :
Shenzhen China
MOQ :
1 Roll/Rolls
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Kilometer/Kilometers per Day
Delivery Time :
3-5Days
Packaging Details :
1km/reel,2reels/carton or Package as per customer request
Certification :
CE/ISO/ROHS
Core number :
2
Jacket :
PVC or LSZH
Mode :
Single mode
Fiber :
G652B,G652D or G657A
Steel messenger :
FRP
Diameter :
3.0*2.0mm
Temperature :
-20 degree-+ 70 degree
Description

Indoor 2 core FTTH drop fiber optic wire cable with messenger steel wire

Product Description
FTTH (Fiber to The Home) is a kind of transmission cable used to connect directly to a home user or a business user. With no limits to its bandwidth, wavelength and transmission technology and being suitable for the application of various new services, FTTH cable is the best solution for the connection between the internet backbone to the user’s desktop.


Purchasing Risk

Many domestic small factories modified electric-wires equipment to produce FTTH cable. They used unqualified fibers which is with very cheap price 3USD/KM to imitate G657 bend-resistant fiber, waste electric-wires and rubber slippers smashed as pvc raw material for the LSZH outer sheath. Those inferior cables will cause many problems such as short transmission distance, low bandwidth, intermittent signal and easy-to-crack of the cable jacket in several months, etc.

Description

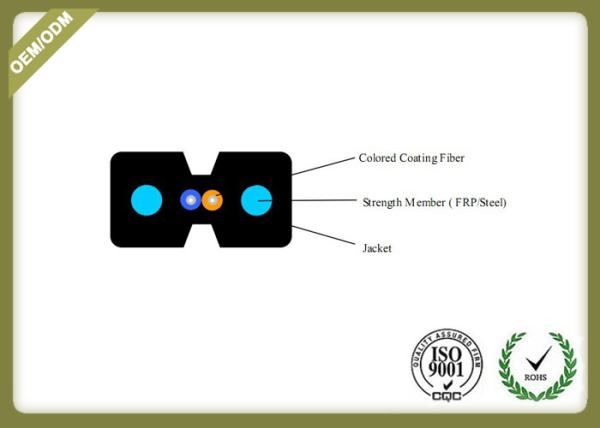

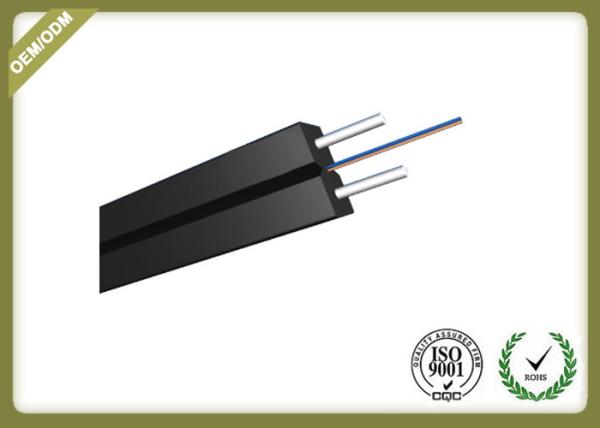

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.then the cable is completed with white LSZH sheath

Characteristics

1 ·Small bending radius, flexible performance can meet the requirement of FTTH

2· Adopt the fiber core excellent than ITU G.657 standard

3 Groove design of 8 type, easy to rip, install and maintain

3· Strength member at both side use as metal or FRP,outer jacket is PVC or LSZH

4· Small diameter, light weight and high practicability;

5: Fiber cores can be 1~12core,as client's request

Application:

No weak current space, no extra space, non suspended ceiling area, from wire distribution cabinet to floor termination box,FTTH , reconstruction of old buildings

Indoor 2 Core FTTH Fiber Optic Drop Cable Single Mode With Messenger Steel Wire

Indoor 2 Core FTTH Fiber Optic Drop Cable Single Mode With Messenger Steel Wire

Packing:
Indoor 2 Core FTTH Fiber Optic Drop Cable Single Mode With Messenger Steel Wire

Production:

Indoor 2 Core FTTH Fiber Optic Drop Cable Single Mode With Messenger Steel Wire

Certification:

Indoor 2 Core FTTH Fiber Optic Drop Cable Single Mode With Messenger Steel Wire

Indoor 2 Core FTTH Fiber Optic Drop Cable Single Mode With Messenger Steel Wire
