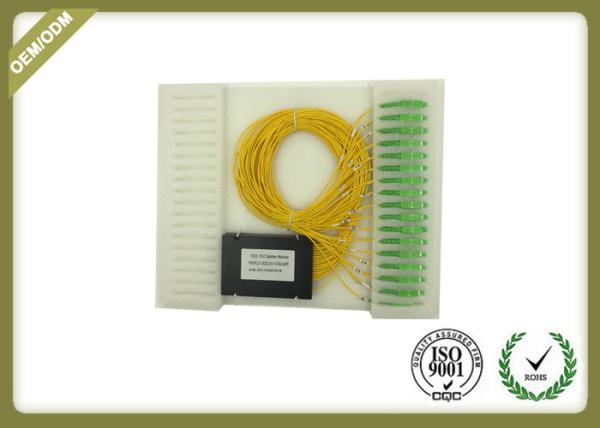

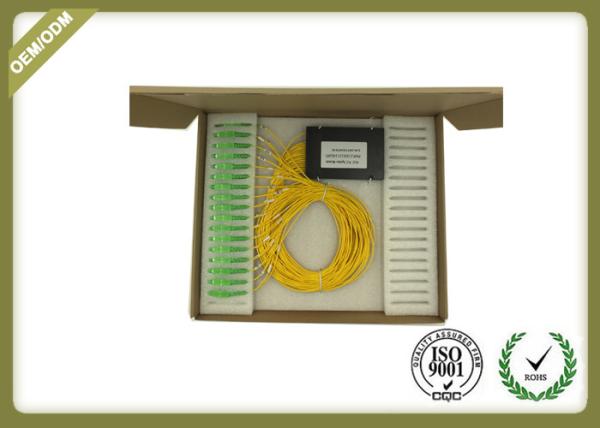

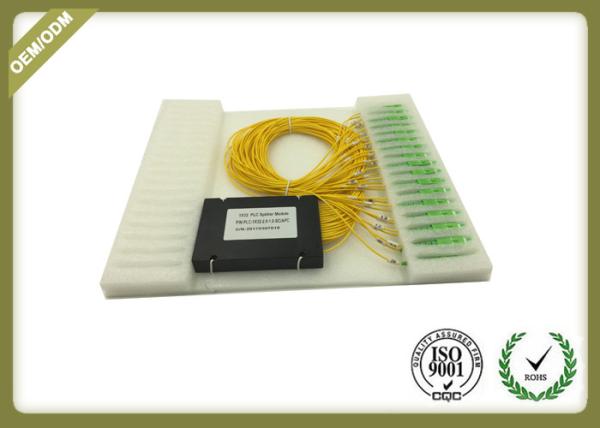

PLC Fiber Optic Splitter With SC FC Connector For Optical Communication
PLC Fiber Optic Splitter With SC FC Connector For Optical Communication
PLC Fiber Optic Splitter With SC FC Connector For Optical Communication
PLC Fiber Optic Splitter With SC FC Connector For Optical Communication
PLC Fiber Optic Splitter With SC FC Connector For Optical Communication
PLC Fiber Optic Splitter With SC FC Connector For Optical Communication
Specifications
Brand Name :
H-LIN
Model Number :
1*32
Certification :
CE/ROHS/IOS9001
Place of Origin :
Shenzhen China
MOQ :
1 Piece/Pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Piece/Pieces per Month
Delivery Time :
3~5 working days after payment
Packaging Details :
1pcs per plastic bag,or as request
Fiber Type :
Corning SMF-28e
Module Dimension (mm) :
140*115*18
Operating Wavelength (nm) :
1260~1650
Connector :
SC, FC, ST, LC, etc
Operating Temperature (℃) :
-40~85
Length :
1~2meter
Fiber size :
0.9mm,2.0mm or 3.0mm
Package type :
Bare, module, rack mount, LGX, tray, insert, wall mount
Application :
GPON
Description

Good quality of 1*32 optical fiber Splitter/ PLC splitter/ Fiber optic splitter for optical communication

Features


Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
High Reliability and Stability
Applications
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. H-LIN provides whole series of 1*N and 2*N splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Typical Usage

1. FTTX Systems

2. FTTH Systems

3. PON Networks

4. CATV Links

5. Optical Signal Distribution

Compliance
Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS

1* N PLC Splitter

PLC Fiber Optic Splitter With SC FC Connector For Optical Communication

PLC Fiber Optic Splitter With SC FC Connector For Optical Communication
