Indoor Steel Armored Fiber Optic Cable Single Mode With Customerized Jacket Color
Indoor Steel Armored Fiber Optic Cable Single Mode With Customerized Jacket Color
Indoor Steel Armored Fiber Optic Cable Single Mode With Customerized Jacket Color
Indoor Steel Armored Fiber Optic Cable Single Mode With Customerized Jacket Color
Specifications
Brand Name :
H-LIN
Model Number :
GJFJV
Certification :
CE/FC/ROHS
Place of Origin :
Shenzhen China
MOQ :
1 km
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000000 Meter/Meters per Day
Delivery Time :
Shipped in 3 days after payment
Packaging Details :
package as per customer's request
Type :
Indoor Single Armored Cable
Application :
Telecommunications
Core number :
1core
temperatuer :
-20 degree~+70 degree
Jacket :
PVC or LSZH
Description

Indoor Single Steel Armored Fiber optical Cable with customerized jacket color(GJFJV)

Characteristics

Good mechanical and environmental characteristics;
· Flame retardant characteristics meets the requirements of relevant standards;
· The mechanical characteristics meet the requirements of relevant standards;
· Soft, flexible, easy to splice, and with big capacity data transmission;
· Meet various requirements of market and clients.

Product Description
Indoor cabling optical cable is applied to cabling in buildings and connection of network equipments. It has good performance of bending, flame retardant, higher transmission speed, clear and stable signal, good anti-interference, huge transmission flow.
Purchasing Risk
Many domestic small factories used inferior or waste optical fibers to imitate A-grade optical fibers, non-woven fabrics as water-blocking tapes, waste electric-wires and rubber slippers smashed as raw materials for the outer sheath of cable. Those inferior cables will cause many problems such as short transmission distance, low bandwidth, intermittent signal and easy-to-crack and water seepage of the cable jacket, etc. For the recent years, there are many cases that many overseas customers who bought such inferior cables from China were frustrated to find that the cables can not be used after constructing. It’s not workable to return them to China as the Chinese government will levy high import duties on optical fiber cables. The customers cannot claim for any compensation and suffered huge losses.

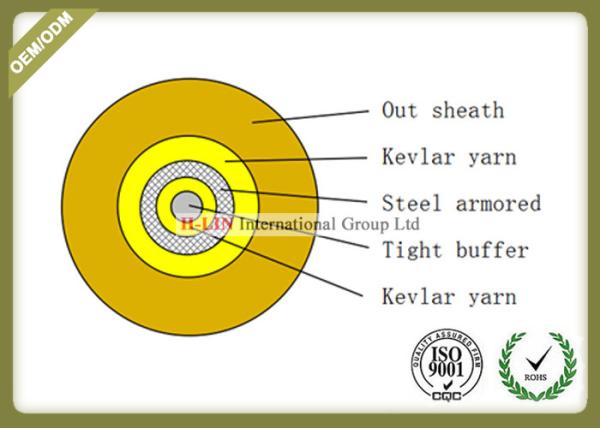

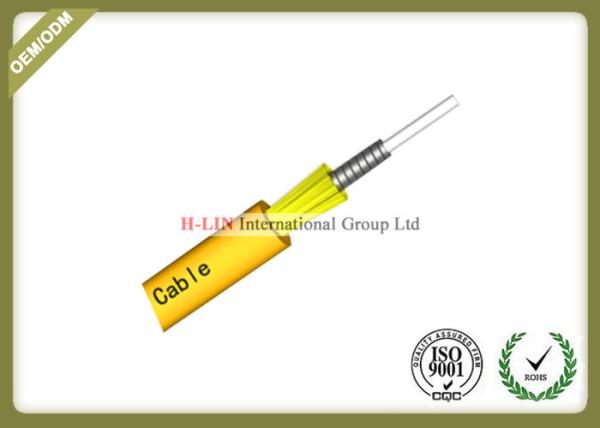

1 fiber, Φ900μm or Φ600μm tight buffer , spiral steel armor, layer of Kevlar yarn, LSZH/ PVC/ OFNR Jacket.

Applications

· Used in pigtails and patch cords;
· Used in optical connections in optical communication equipment rooms and optical distribution frames;
· Used in optical connections in optical apparatus and equipments.

Temperature range

-20℃~+70℃

Optical Characteristics:

Fiber Type G.652 G.655 50/125μm 62.5/125 μm

Attenuation

(+20°c)

 850nm ≤3.0 db/km ≤3.3 db/km
1300nm ≤1.0 db/km ≤1.0 db/km
1310nm ≤0.36 db/km ≤0.40 db/km
1550nm ≤0.22 db/km ≤0.23 db/km
Bandwidth 850nm ≥500 Mhz.km ≥200 Mhz.km
1300nm ≥500 Mhz.km ≥500 Mhz.km
Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off wavelength λcc ≤1260 nm ≤1450 nm

Structure and Technical Specification

Fiber Count

Norminal Diameter

(mm)

Norminal Weight

(kg/km)

Allowable Tensile Load

(N)

Allowable Crush Resistance

(N/100mm)
Short Term Long Term Short Term Long Term
1 3.0 18 200 400 3000 4000
2 3.3 22 200 400 3000 4000

Note:Singlemode fiber cable with yellow color jacket,multimode fiber cable with orange color jacket,or can be customerized.

Packing:

Indoor Steel Armored Fiber Optic Cable Single Mode With Customerized Jacket Color
