Metal Fiber Termination Box 6 Port , Fiber Optic Cable Junction Box For indoor use can be grey color or white color
Metal Fiber Termination Box 6 Port , Fiber Optic Cable Junction Box For indoor use can be grey color or white color
Metal Fiber Termination Box 6 Port , Fiber Optic Cable Junction Box For indoor use can be grey color or white color
Metal Fiber Termination Box 6 Port , Fiber Optic Cable Junction Box For indoor use can be grey color or white color
Specifications
Brand Name :
H-LIN
Model Number :
HL-MOTB-006
Certification :
CE ISO9001
Place of Origin :
Shenzhen China
MOQ :
20Pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500Pieces per Day
Delivery Time :
1week after get payment
Packaging Details :
1pc/box,22pcs/carton,24kg/carton,size;61*37*37cm
Application :
FTTH System
Dimension :
152x107x31 mm
Material :
metal or Cold-roll steel
Capacity :
6cores
Adapters :
max 4pcs ( if pigtails port not used)
Accessories included :
Insulation tape, nylon tie, numbering paper,fixer
Description

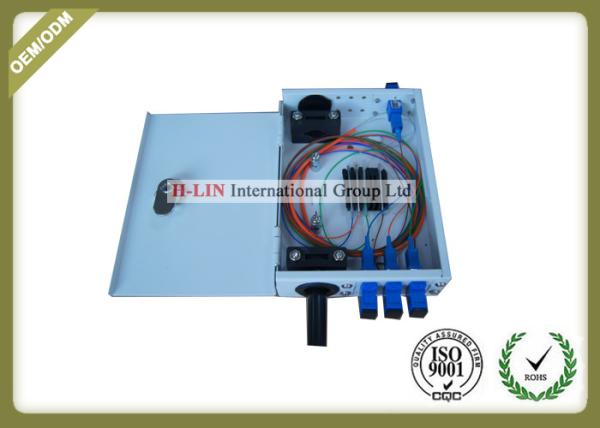

Mini Metal Fiber Optic Termination Box 6 Port for indoor wall mounting use

Description:

Fiber optic terminal box is a FTTH mini optic terminal box,It is used in the end termination of residential buildings andvillas, to fix and splice with Pigtails or connected fast connectors can be installed on the outside wall.

Optical fiber terminal box is a cable terminal,one side is cable, the other side is pigtail, it equals to split cable into a single fiber cable equipment, installed on the wall at the user cable terminal box.Its function is to provide the welding between optical fibers, between fibers and pigtails, and the transfer of optical connectors. And provide mechanical protection and environmental protection for optical fiber and its components, and allow appropriate inspection to maintain the highest standard optical fiber management

Features:
Cold-roll steel, electrostatic painting
Suitalbe for different adapters: FC, SC, ST, LC …
2pcs cable entry/exit ports; 6pcs pigtail entry/exit ports
Splicing module of 6 fibers inside
Max. 4pcs adapters can be loaded
With lock design

Applications:

* widely used in FTTH access network.

* Telecommunication Networks

* CATV Networks

* Data communications Networks

* Local Area Networks

1. provide a protective connection for cable and wiring pigtail.
2. make the metal component of optical cable insulated from the end shell of optical cable, and can easily lead out the grounding
3. provide the location of optical cable terminal and the space of optical fiber storage at the remaining end, so as to facilitate the installation operation.
4. the box body with enough impact strength is fixed, which is convenient for installation in different occasions.
5. may choose the hanging wall installation or directly placed in the groove and other installation methods.

Specifications:

Parameter Value
Size (L x W x H) 152 x 107 x 31 mm
Number of Entry/Exit Ports 2
Splice capacity 6
Splice Method Fusion
Max. Number of pigtails 6
Max. Number of Adapter 3 (4 if pigtails port not used)
Adapter Types Supported FC, SC, ST
Material Metal(cold-rolled steel)
Application In building wall mount or in cabinets.
Accessories provided Insulation tape, nylon tie, numbering paper, and fixer

Production & Packing:

Metal Fiber Termination Box 6 Port , Fiber Optic Cable Junction Box For indoor use can be grey color or white color
