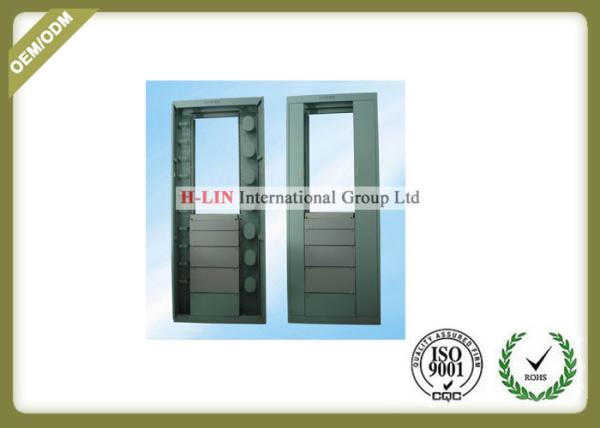

Indoor Optical Telecommunication Distribution Box Cold Rolled Steel Material 576 Cores
Indoor Optical Telecommunication Distribution Box Cold Rolled Steel Material 576 Cores
Indoor Optical Telecommunication Distribution Box Cold Rolled Steel Material 576 Cores
Indoor Optical Telecommunication Distribution Box Cold Rolled Steel Material 576 Cores
Specifications
Brand Name :
H-Lin
Model Number :
HL-MODF-OC576
Place of Origin :
Shenzhen China
MOQ :
1 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 pieces/week
Delivery Time :
1week after payment
Packaging Details :
1pc/carton, 1carton/pallet
Material :
Cold-roll steel
Color Painting :
Grey
capacity of fiber :
576core
Dimension :
220x90x30cm
weight :
230kg
Description

cold-rolled steel 576 cores telecomunication cabinet for indoor use

Fiber optic cabinet is a high-capacity,high-density fiber distribution frame, suitable for the composition and distribution of fibers in optical access network to achieve the fiber optic lines connection, distribution and scheduling.

Features:

With high intensity and anti-erosion performance

Electrolysis sheet/Cold-rolled steel frame, electrostatic spraying in the whole surface, nice appearance.

Capacity can be flexibly customized as required

Built-in direct melt unit capable of providing direct connection functionality

With secure and reliable fastening and grounding protection devices for the optic fiber

Applicable to strap-shaped and non-strap shaped fibers, and inserting installation of SC, FC, ST (additional flange) adapters

The angle between the adaptor and the connecting unit face is 30°, ensuring the curvature radius of fiber and preventing the eyes from being hurted

The holes on top and bottom can meet the upper and lower wiring

Glass front door for your choice, visibility good

Can design according to customers’ request

Material:
Cold-rolled steel

Technical Parameters:
Nominal work wave-length: 850nm, 1310nm, 1550nm
Operating temperature: -5℃-+40℃
Storage temperature: -40℃ +70℃
Relative humidity:≤85%(+30℃)
Atmospheric pressure: 70~106 KPa
Insertion loss: ≤0.2dB
Return loss:≥45dB (PC), ≥50dB(UPC), ≥60dB(APC)
Isolation resistance:≥1000MΩ/500V(DC)
Durability:＞1000 times
Anti-voltage strength: ≥3000V(DC)/1min

Application:

Communications

Networks

Industrial control

Building automation

Feature

  1. Refined outline with top degree quality
  2. Integrated welding structure, high intensity
  3. Cold rolled steel body with electrostatic spraying surface
  4. High ventilation hexagon mesh front door, double opening hexagon mesh rear door
  5. Three point lock with high degree revolve cabinet lock, code lock are selectable
  6. Plastic parts on two sides of front make cable management easily
