4U 72 Ports Rack Mounted Fiber Optic Distribution Box For FTTH / LAN / WAN / CATV
4U 72 Ports Rack Mounted Fiber Optic Distribution Box For FTTH / LAN / WAN / CATV
4U 72 Ports Rack Mounted Fiber Optic Distribution Box For FTTH / LAN / WAN / CATV
4U 72 Ports Rack Mounted Fiber Optic Distribution Box For FTTH / LAN / WAN / CATV
Specifications
Brand Name :
H-Lin
Model Number :
HL-FODF-4U72SC
Certification :
CE/FCC/ROHS
Place of Origin :
Shenzhen China
MOQ :
50 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pieces/week
Delivery Time :
1week after payment
Packaging Details :
1pcs a separate box , 5pcs a Carton
Material :
Cold-roll steel or Aluminum
Painting method :
electrostatic painting
Color Painting :
Black,White,Grey or customized
Port :
12, 24, 36,48, 72 or customized
Dimension :
490x305x89mm
Adapter plate :
SC,FC,ST,LC ,E2000 for option
type :
Rack-mouted fixed type
Description

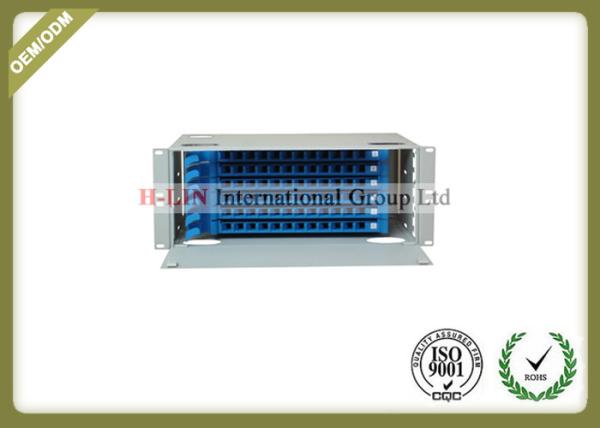

4U 72 Ports Fixed Rack-mounted Optic Distribution Box for SC Simplex Adapter

Rack-mount fiber optic distribution frame is made of cold-rolled steel, modular design, with splice tray units inside and could be pre-installed with various kinds of fiber optic adapters and pigtails.

The proper design controls the bend radius of the cable inside the enclosure to avoid extra optical loss.

Features:

1. Modular design with splicing and distribution function

2. 12 cores distribution and splicing unit has the function of storage for maximum 2m pigtail

3. Splice tray units inside changeable

4. Various panel plates to fit different adapter interface

5. Can be fit for the pigtail or ribbon fan-out pigtail, suitable for 19'' or 23'' standard ODF

6. Standard size, light weight and reasonable structure

7. The mark in the front panel is for the easy identification, easy operation

Application:

• Telecommunications subscriber loop

• Fiber to the home (FTTH)

• LAN/WAN

• CATV
Specification:
Model Core Count Height Dimension(mm) Weight(kg)
HL-FODF-7U144 144 7U 490x305x311.5 17.1
HL-FODF-5U96 96 5U 490x305x222.5 11
HL-FODF-4U72 72 4U 490x305x178 9
HL-FODF-3U48 48 3U 490x305x133.5 7
HL-FODF-2U36 36 2U 490x305x89 5.7
HL-FODF-2U24 24 2U 490x305x89 4.6

Packaging & Shipping:

4U 72 Ports Rack Mounted Fiber Optic Distribution Box For FTTH / LAN / WAN / CATV
