Waterproof Outdoor Armoured Optical Cable Assembly PDLC-DLC patch cord 7.0mm, 2 Cores
Waterproof Outdoor Armoured Optical Cable Assembly PDLC-DLC patch cord 7.0mm, 2 Cores
Waterproof Outdoor Armoured Optical Cable Assembly PDLC-DLC patch cord 7.0mm, 2 Cores
Waterproof Outdoor Armoured Optical Cable Assembly PDLC-DLC patch cord 7.0mm, 2 Cores
Waterproof Outdoor Armoured Optical Cable Assembly PDLC-DLC patch cord 7.0mm, 2 Cores
Waterproof Outdoor Armoured Optical Cable Assembly PDLC-DLC patch cord 7.0mm, 2 Cores
Specifications
Brand Name :
H-LIN
Model Number :
PDLC-LC
Certification :
CE
Place of Origin :
China
MOQ :
10PCS
Price :
$2.00 - $30.00 / Piece
Payment Terms :
T/T, Western Union
Supply Ability :
500pcs per day
Delivery Time :
7~10days
Packaging Details :
Gerenal exported standard package or customerized if quantity more
Model :
PDLC-PDLC
Fiber count :
2
Fiber type :
SM or MM
Outer diameter :
7.0mm
USE :
FTTx Solutions
Outer material :
LSZH
Description

Waterproof Outdoor Armoured Optical Cable Assembly PDLC-DLC patch cord 7.0mm, 2 Cores

PDLC fiber optic waterproof connector mainly used in the RRU terminal from/of HUAWEI&ZTE in the FTTA System, Main advantages of this connector are simplex structure, easy handling and low cost.

Features:

Standard DLC connector,well connected with standard LC adaptor,

The material in the jumer cable are all-weather and UV-resistant

IP67 water and dust protection

• Good mechanical and environmental characteristics;

• Flame retardant characteristics meet the requirements of relevant standards;

• The mechanical characteristics of jacket meet the requirements of relevant standards;

• Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

Application:

Multi-purpose Outdoor,

For connection between distribution box and RRH,

Deployment in remote radio head cell tower applications.

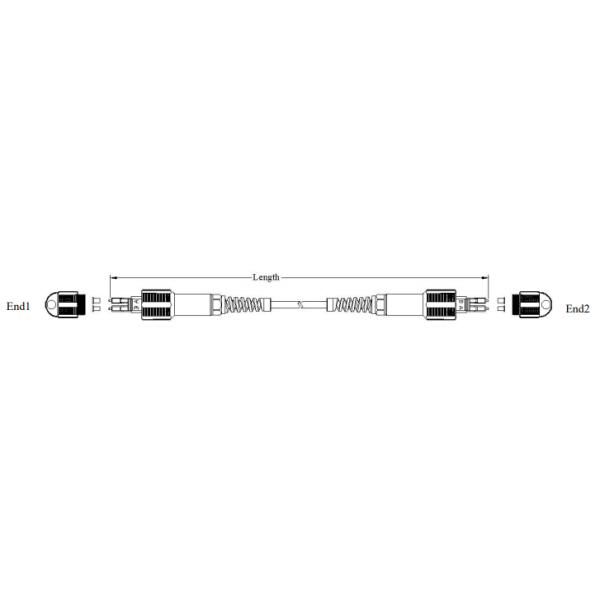

PDLC Outdoor Cable Assemblies

Waterproof Outdoor Armoured Optical Cable Assembly PDLC-DLC patch cord 7.0mm, 2 Cores

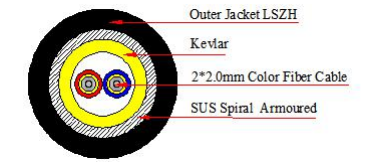

Cable Structure:

Waterproof Outdoor Armoured Optical Cable Assembly PDLC-DLC patch cord 7.0mm, 2 Cores

Cable Parameter:

Fiber Count 2 Fibers
Fiber Type SM G657A, or MM 50/125 or MM 62.5/125
Buffer Diameter 900um±10um
Material LSZH
Simplex cable Diameter 2.0mm±0.1mm
Material LSZH
Color SM: Blue and Yellow
MM: Orange and Grey
Filler Diameter 2.0mm±0.1mm
Material LSZH
Color Black
Strength Member Kevlar
Jacket Diameter 7.0±0.1mm
Material LSZH
Color Black

Optical fiber characteristic:

Item

Unit

Specification

Attenuation

dB/km

1310nm≤0.4

1550nm≤0.3

Dispersion

Ps/nm.km

1285~1330nm≤3.5

1550nm≤18.0

Zero dispersion wavelength

Nm

1300~1324

Zero dispersion slope

Ps/nm.km

≤0.095

Fiber cutoff wavelength

Nm

≤1260

Mode field diameter

Um

9.2±0.5

Mode field concentricity

Um

<=0.8

Cladding diameter

um

125±1.0

Cladding non-circularity

%

≤1.0

Coating/cladding concentricity error

Um

≤12.5

Coating diameter

um

245±10

bending, dependence induced attenuation

1550nm, 1turns,32mm diameter 100rums,60mm diameter

≤0.5 db

Proof test

kpsi

≥100
