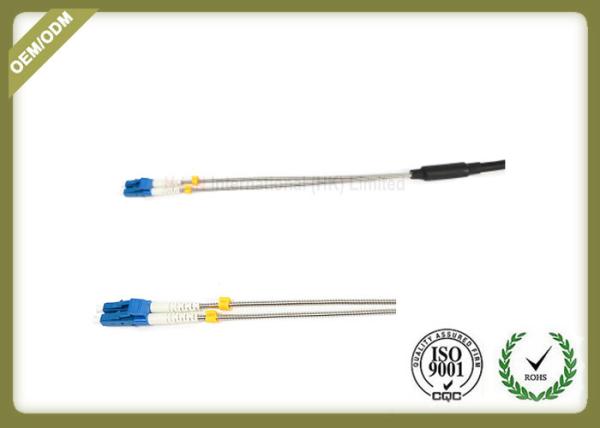

CPRI LC to LC FTTA outdoor fiber optic patch cord duplex 7mm diameter for outdoor use
CPRI LC to LC FTTA outdoor fiber optic patch cord duplex 7mm diameter for outdoor use
CPRI LC to LC FTTA outdoor fiber optic patch cord duplex 7mm diameter for outdoor use
CPRI LC to LC FTTA outdoor fiber optic patch cord duplex 7mm diameter for outdoor use
CPRI LC to LC FTTA outdoor fiber optic patch cord duplex 7mm diameter for outdoor use
CPRI LC to LC FTTA outdoor fiber optic patch cord duplex 7mm diameter for outdoor use
Specifications
Brand Name :
H-LIN
Model Number :
CPRI LC-CPRI LC
Certification :
ISO
Place of Origin :
China
MOQ :
10PCS
Price :
$2.00 - $30.00 / Piece
Payment Terms :
T/T, Western Union
Supply Ability :
500pcs per day
Delivery Time :
7~10days
Packaging Details :
Gerenal exported standard package or customerized if quantity more
Model :
CPRI LC-CPRI LC
Fiber count :
2
Fiber type :
SM or MM
Cable Outer diameter :
7.0mm
Connector type :
LC, ST,FC,SC,ODVA,ODC,FULLAXS,ODLC
Outer material :
LSZH
Description

CPRI LC to LC FTTA outdoor fiber optic patch cord duplex 7mm diameter for outdoor use

CPRI fiber patch cable for the new generation wireless base stations(WCDMA/TD-SCDMA/WiMax/GSM). Such productscan be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditionsand adverse weather conditions. Especially in the 3G, 4G, and WiMax base stations and fiber-optic distributed zoom technology, CPRI fiber patch cable are rapidly becomingthe standard connectorinterface.

Features:

The material in the jumer cable are all-weather and UV-resistant

IP67 water and dust protection

• Good mechanical and environmental characteristics;

• Flame retardant characteristics meet the requirements of relevant standards;

• The mechanical characteristics of jacket meet the requirements of relevant standards;

• Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

Application:

Multi-purpose Outdoor,

For connection between distribution box and RRH,

Deployment in remote radio head cell tower applications.

PDLC Outdoor Cable Assemblies

CPRI LC to LC FTTA outdoor fiber optic patch cord duplex 7mm diameter for outdoor use

Cable Structure:

CPRI LC to LC FTTA outdoor fiber optic patch cord duplex 7mm diameter for outdoor use

Cable Parameter:


Fiber Count

CableDimension

mm

CableWeight

kg/km

Tensile (N)

 Crush(N/100mm)

Min. Bend Radius

(mm)

Range of Temperature
LongTerm Short Term LongTerm ShortTerm Dynamic Static
2 7.0 42 200 400 300 1000 20D 10D -20-+70
2 5.0 24 150 300 300 1000 20D 10D -20-+70

Note:

1. All the values in the table, which are for reference only, are subject to change without notice;

2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;

3. D is outer diameter of the round cable;

Optical fiber characteristic:

Item

Unit

Specification

Attenuation

dB/km

1310nm≤0.4

1550nm≤0.3

Dispersion

Ps/nm.km

1285~1330nm≤3.5

1550nm≤18.0

Zero dispersion wavelength

Nm

1300~1324

Zero dispersion slope

Ps/nm.km

≤0.095

Fiber cutoff wavelength

Nm

≤1260

Mode field diameter

Um

9.2±0.5

Mode field concentricity

Um

<=0.8

Cladding diameter

um

125±1.0

Cladding non-circularity

%

≤1.0

Coating/cladding concentricity error

Um

≤12.5

Coating diameter

um

245±10

bending, dependence induced attenuation

1550nm, 1turns,32mm diameter 100rums,60mm diameter

≤0.5 db

Proof test

kpsi

≥100
