Good quality FTTX network system Wall mountable fiber access terminal optical frame box optical cable terminal box
Good quality FTTX network system Wall mountable fiber access terminal optical frame box optical cable terminal box
Good quality FTTX network system Wall mountable fiber access terminal optical frame box optical cable terminal box
Good quality FTTX network system Wall mountable fiber access terminal optical frame box optical cable terminal box
Good quality FTTX network system Wall mountable fiber access terminal optical frame box optical cable terminal box
Good quality FTTX network system Wall mountable fiber access terminal optical frame box optical cable terminal box
Specifications
Brand Name :
H-LIN
Model Number :
HL-FAT-8T
Certification :
CE ISO9001
Place of Origin :
Shenzhen China
MOQ :
50Pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000Pieces per Day
Delivery Time :
1week after get payment
Packaging Details :
1pc/box 20pcs/Carton
Application :
FTTH System
Dimension(mm) :
24X13X6 cm
Material :
PC+ABS Plastic
Capacity :
8cores
IP Grade :
IP65
Installtion :
Wall mounted
Weight :
0.6kg
Connector :
SC or LC
Description

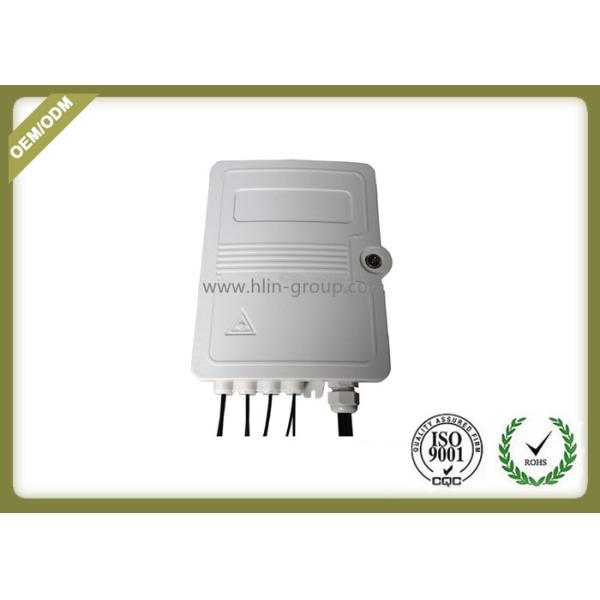

8 Ports Fiber Access Terminal

Introduction:
fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Product Features:

♦Integrated with splice cassette and cable management rods.

♦Manage fibers in a reasonable fiber radius condition.

♦Easy to maintain and extend the capacity.
♦Suitable for the fusion splice or mechanical splice.Fiber bend radius control more than 40mm.

♦1*8 Splitter can be installed as an option.

♦Efficient cable management.

♦8 ports cable entrance for drop cable.

Specification:

ITEM

PARAMETER

Suitable fiber type

3.0*2.0 flat cable

Capacity

8SC/ 16LC/ 1 1*8 PLC

Material

PC+ABS

Size (A*B*C)

235*125*50mm

Weight

0.6kg

Connecting Adapter

SC simplex or LC duplex

Operating temperature

-40~+85C

Color

White

Package:

Carton size:51*29*33CM

Qty:20pcs/carton

Weight:11.00KG/carton

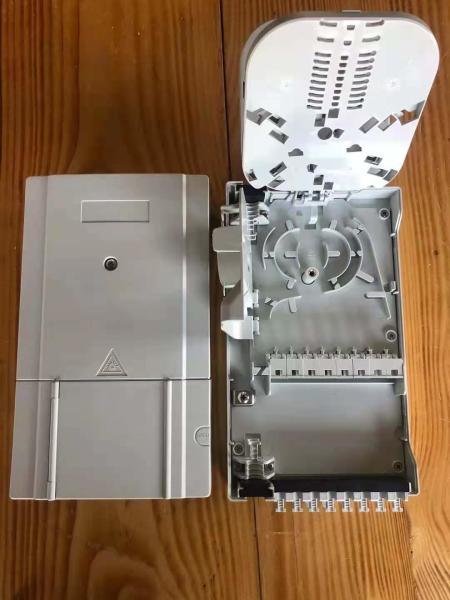

Picture:

Good quality FTTX network system Wall mountable fiber access terminal optical frame box optical cable terminal box
