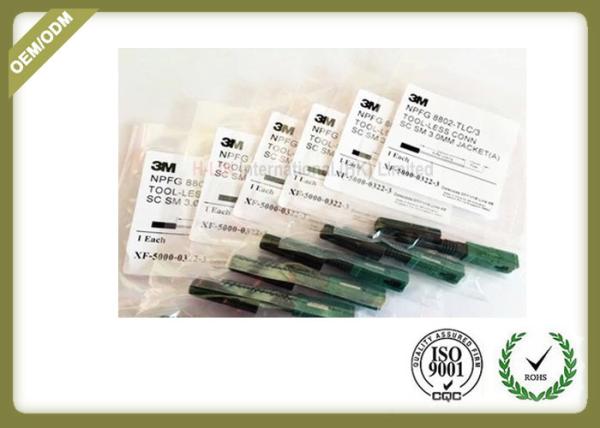

Original Fiber Optic Cable Accessories FTTH 3M 8802 TLC/3 SC APC Fast Connector
Original Fiber Optic Cable Accessories FTTH 3M 8802 TLC/3 SC APC Fast Connector
Original Fiber Optic Cable Accessories FTTH 3M 8802 TLC/3 SC APC Fast Connector
Original Fiber Optic Cable Accessories FTTH 3M 8802 TLC/3 SC APC Fast Connector
Specifications
Brand Name :
H-LIN
Model Number :
3M SC Fast Connector
Certification :
CE/FCC/ROHS
Place of Origin :
Shenzhen ,China
MOQ :
10 Piece/Pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Piece/Pieces per Day
Delivery Time :
4days after payment
Packaging Details :
plastic bag
Model :
8802-TLC/3
insertion loss :
IL<0.2dB
usage :
voice/CATV/Ethernet/NGN
Return loss :
≥60db
Dimension :
9.3*9.3*57.4 mm
Connector type :
Connector Type:
Description

3M 8802-TLC/3 TOOL-LESS CONN SC UPC SM 3.0MM Fiber Optic Fast Connector for fiberhome

Original FTTH 3M 8802 TLC/3 SC APC Fast Connector

model:SC/APC (black+green)

3M™ NPFG 8802-TLC/3 TOOL-LESS SC/APC Connector enables fast, on-site termination of round 2.0 mm to 3.0 mm jacketed cable and 1.6 x2 mm and 2 x 3 mm drop cables.

The SC/UPC compatible connector consists of a factory-polished fiber/ ferrule assembly and a mechanical
splice that can be terminated without an assembly tool. A twist on, hard shell boot clamps onto the
cable jacket and aramid fiber to provide excellent strain relief.

Description:

fiber optic fast connector designed for FTTH. It is a new generation of fiber connector used in assembly. It can provide open flow and precast type, which optical and mechanical specification meets the standard optical fiber connector. It is designed for high quality and high eddiciency for installation, the structure of crimping position is a unique design.

Features:

1.Easy to operate can save time

2.100% qualified, reduce the maintenance cost.

3.Easy to assembling with mechanical splice and no polishing

4.High stablity ,low insertion loss ,high return loss.

Application

1.Telecome network

2.CATV network

3.Ethernet network

4.Optic communication Equipment

Specification:

Item Unit Condition Parameter
Operating Wavelength Nm 1310/1550
Attenuation Range dB 1dB-10dB <0.5
dB 11dB-20dB <1
Return Loss dB PC ≥50
dB APC ≥60
Attenuation Tolerance dB
Working Temperature °C -40~+80
Storage Temperature °C -40~+80

Noted: LC, FC, SC, ST, is available as per customers' drawings.

Specifications
Model # 8802-TLC/3
Cable diameter 2.0, 3.0 mm cable and 1.6x2 mm, 2x3 mm drop cable
Coating diameter 250μm/900μm
Fiber type Single mode
Dimensions 9.3*9.3*57.4 mm (0.37'' *0.37'' * 2.26'')
Insertion Loss (dB) typical 0.3

Reflectance (dB) typical at

room temperature

<-40

Reflectance (dB) over

operating temperature range

 <-35

Operating temperature

range (°C)

 -40°C to 75°C
Storage temperature (°C) -40°C to 85°C
Connector identification blue/white
