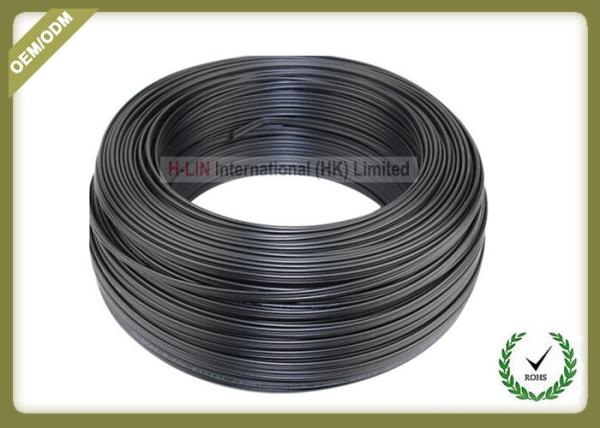

Fiber Optic FTTH Aerial Drop Cable 1 Core Three Steel Wires Special For Outside Use
Fiber Optic FTTH Aerial Drop Cable 1 Core Three Steel Wires Special For Outside Use
Fiber Optic FTTH Aerial Drop Cable 1 Core Three Steel Wires Special For Outside Use
Fiber Optic FTTH Aerial Drop Cable 1 Core Three Steel Wires Special For Outside Use
Fiber Optic FTTH Aerial Drop Cable 1 Core Three Steel Wires Special For Outside Use
Fiber Optic FTTH Aerial Drop Cable 1 Core Three Steel Wires Special For Outside Use
Specifications
Brand Name :
H-LIN
Model Number :
FTTH-GJYXCH-1B6
Certification :
CE/ISO/ROHS
Place of Origin :
Shenzhen China
MOQ :
2km
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Kilometer/Kilometers per Day
Delivery Time :
3-5Days

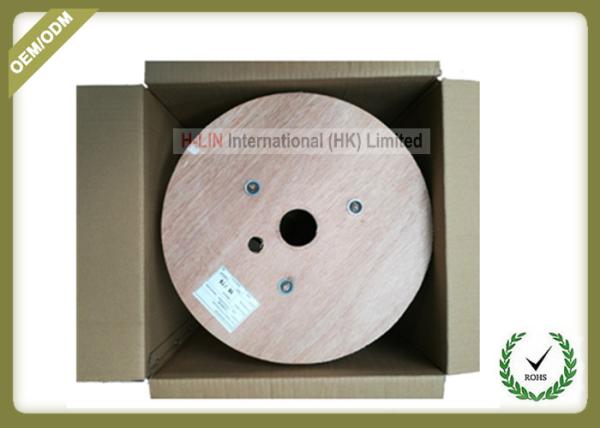

Packaging Details :
1km/reel,or 2km a reel,
Core number :
1
Jacket :
PVC or LSZH
Weight :
20kg
Fiber :
G652B,G652D or G657A
Steel messenger :
Steel wire
Diameter :
5.0*2.0mm
Temperature :
-20 degree-+ 70 degree
Description

Outdoor Fiber Optic Drop Cable 1core with three steel wires Special for outside use


Description

Drop cables are located on the subscriber end to connect the terminal of a distribution cable to a subscriber’s premises. They are typicality small diameter, low fiber count cables with limited unsupported span lengths, which can be installed aerially, underground or buried. As it is used in outdoor, drop cable shall have a minimum pull strength of 1335 Newtons according to the industry standard. Drop cables are available in many different types.

Flat Type Drop Cable, also known as flat drop cable, with a flat out-looking, usually consists of a polyethylene jacket, several fibers and two dielectric strength members to give high crush resistance.

Figure-8 Aerial Drop Cable is self-supporting cable, with the cable fixed to a steel wire, designed for easy and economical aerial installation for outdoor applications.

Round Drop Cable usually contains a single bend-insensitive fiber buffered and surrounded by dielectric strength members and an outer jacket, which can provide durability and reliability in the drop segment of the network.


Features

Good mechanical and environmental characteristics;
Flame retardant characteristics meets the requirements of relevant standards;
The mechanical characteristics meets the requirements of relevant standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.

1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
2.Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
3.Simple structure, light weight and high practicability
4. Novel flute design, easily strip and splice, simplify the installation and maintenance
5.Low smoke, zero halogen and flame retardant sheath

Fiber count
Cable Diameter
(mm)
Cable Weight (kg/km)
Tensile (N)
Long/ Short term
1
(2.0±0.2)×(5.0±0.2)
20
60/120



Specification:

Outdoor model GJYXCH
Jacket PVC or LSZH
Cores available 1 core
Dropping steel mesenger OD 1x1.0mm
Protecting inner wires(or FRP) OD 2x0.45mm
Jacket colors Black,white etc.,
Fiber Type G652D/G657A1/G657A2
Modes Singlemode, Multi-mode
Length 1km/2km/3km each roll


Cable construction details




Fiber Optic FTTH Aerial Drop Cable 1 Core Three Steel Wires Special For Outside Use
