Wholesale compatible 1000BASE-T SFP copper 100m Transceiver Module
Wholesale compatible 1000BASE-T SFP copper 100m Transceiver Module
Wholesale compatible 1000BASE-T SFP copper 100m Transceiver Module
Wholesale compatible 1000BASE-T SFP copper 100m Transceiver Module
Wholesale compatible 1000BASE-T SFP copper 100m Transceiver Module
Wholesale compatible 1000BASE-T SFP copper 100m Transceiver Module
Specifications
Brand Name :
H-Lin
Model Number :
SFP-GLC-T
Certification :
ISO 9001 CE
Place of Origin :
China
MOQ :
10PCS
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Piece/Pieces per week
Delivery Time :
Shipped in 3~ 5 days after payment
Packaging Details :
according to quantity ,we can offer 1 by one in box ,or 10pcs in plastic box or 20pcs. and we can do as required
data rate :
1000Base-T
Distance :
100M
Connector type :
RJ45 Port
Cabling Type :
Cat5
Temperature :
0 ～ 70°C (32 ～ 158°F)
DDM/DOM） :
optional
Device Type: :
SFP (mini-GBIC) transceiver module - LC multi-mode
Weight :
0.03kg
Description

1000BASE-T SFP copper 100m Transceiver Module

Description:

1: SFP Copper Small Form Pluggable (SFP) Transceivers is high performance , cost effective module compliant with the Gigabit Ethernet and 1000 BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data rate up to 100 meters reach over unshielded twisted-pair category 5 cable.

2. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair.

3.The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.

Feature:

Support 1000base-T / 1000base-Tx

Hot-pluggable SFP footprint

Compact RJ-45 connector assembly

RoHS compliant and lead-free

Single +3.3V power supply

10/100base-Tx Fast Ethernet over Cat 5 cable

Ambient Operating temperature: -40°C to +85°C

Specification

General
Parameter Symbol Min Typ Max Units Notes/Conditions
Data Rate BR 10 1,000 Mb/sec

IEEE 802.3 compatible.

See Notes 2 through 4 below
Cable Length L 100 m Category 5 UTP. BER <10-12

Product list

Part Number Data Rate Distance Package Temp.
1000Base-T Copper SFP
HLSFP-GB-P1 1000M 100M(UTP-5) Copper SFP 0~70
HLSFP-FB-P2 10/100M 100M (UTP-5) Copper SFP 0~70
HLSFP-GB-P3 10/100/1000M 100M (UTP-5) Copper SFP 0~70
HLSFP-GB-P4 10/100/1000M 100M (UTP-5) Copper SFP -40~85

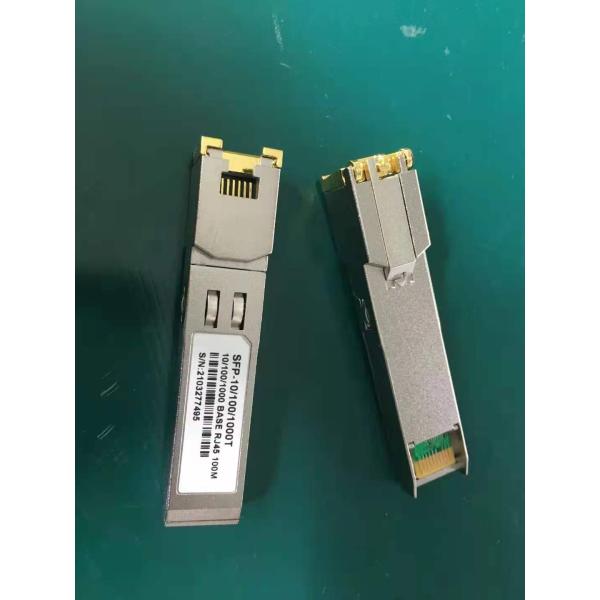

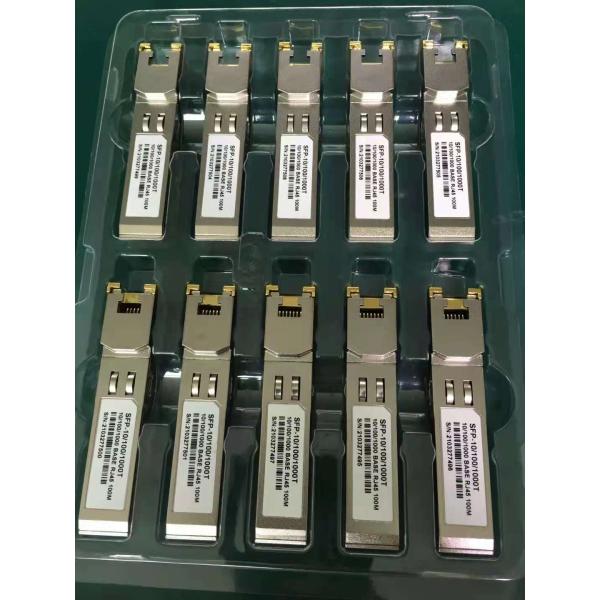

Pictures:

Wholesale compatible 1000BASE-T SFP copper 100m Transceiver Module

Wholesale compatible 1000BASE-T SFP copper 100m Transceiver Module
