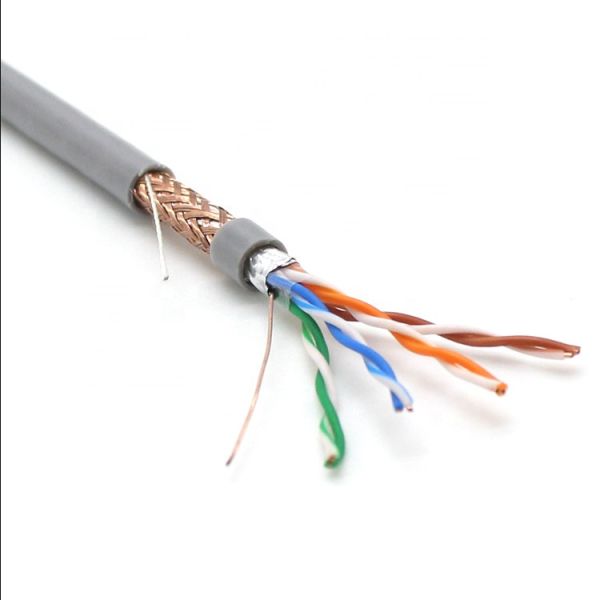

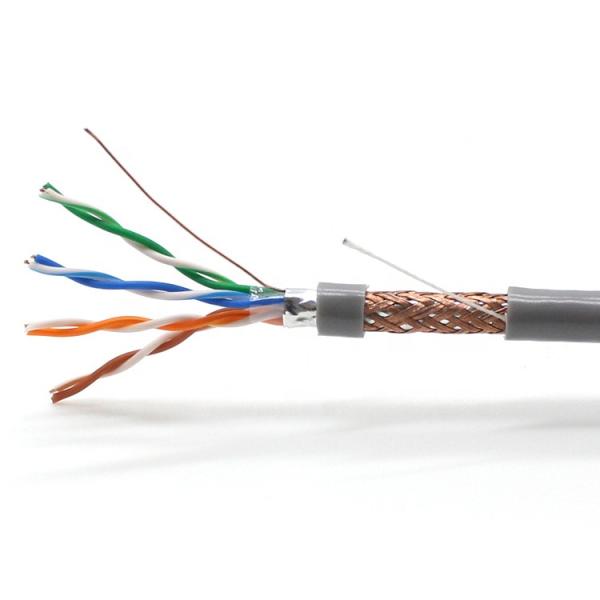

High Speed Solid Bare Copper 24AWG 26AWG 0.5mm FTP Cat5e Cable
High Speed Solid Bare Copper 24AWG 26AWG 0.5mm FTP Cat5e Cable
High Speed Solid Bare Copper 24AWG 26AWG 0.5mm FTP Cat5e Cable
High Speed Solid Bare Copper 24AWG 26AWG 0.5mm FTP Cat5e Cable
Specifications
Brand Name :
OEM/ODM/YUEXIANKE
Model Number :
Cat5E
Certification :
Unilever/ROSH/CE/ANATEL/ISO/CPR/ETL
Place of Origin :
CHINA
MOQ :
15000M
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :
6000box/day
Delivery Time :
7-12 work days
Packaging Details :
305m/Box
Model Number: :
SFTP CAT5E
Conductor :
0.5
insulation: :
HDPE
Structure :
4P Twisted Pair
Jacket :
PVC/HDPE
conductor material :
CU/CCA
Conductor Diameter :
24AWG
Length: :
305M
Description
SFTP 0.5mm Cat5e Indoor 24awg 26awg 2 Pair STP Solid Bare Copper Cat 5e Lan Cable 4 Pair
Product Details

Category 5 cable (Cat 5) is a twisted pair cable for computer networks. Since 2001, the variant commonly in use is the Category 5e specification (Cat 5e). The cable standard provides performance of up to 100 MHz and is suitable for most varieties of Ethernet over twisted pair up to 2.5GBASE-T[1][2][3][4] but more commonly runs at 1000BASE-T (Gigabit Ethernet) speeds. Cat 5 is also used to carry other signals such as telephone and video.

This cable is commonly connected using punch-down blocks and modular connectors. Most Category 5 cables are unshielded, relying on the balanced line twisted pair design and differential signaling for noise rejection.

Specification parameter :
AWG (Gauge)
24AWG
Conductor Material
CCA, CCU, CU
Shiled
U/UTP, F/UTP, SF/UTP
Conductor Material
CCA, CCU, CU
Jacket Material
PVC, LSZH
Color
Grey,Red, White Or Customized
Operating temperatur
-20°C to +75°C
Certification
CE/ROHS/UL//FCC/ISO9001
Fire rating
CMP,CMR,CM,CMG,CMX
Application
PC,ADSL,network Module Plate,Wall Socket,etc

Technical differences
As the category number gets higher, so does the speed and Mhz of the wire. This is not a coincidence, because each category brings more stringent testing for eliminating crosstalk (XT) and adding isolation between the wires.

This does not mean your experiences have been the same. Physically you can use Cat-5 cable for 1 Gb speeds, and I have personally used cable longer than 100 meters, but because the standard has not been tested for it, you'll probably have mixed results. Just because you have Cat-6 cable, doesn't mean you have 1 Gb network speeds either. Every connection in your network needs to support the 1 Gb speed and in some cases, the connection will need to be told in software to use the available speed.

Category 5 cable was revised, and mostly replaced with, Category 5 Enhanced (Cat-5e) cable which did not change anything physically in the cable, but instead applied more stringent testing standards for crosstalk.

Category 6 was revised with Augmented Category 6 (Cat-6a) which provided testing for 500 Mhz communication (compared to Cat-6's 250 Mhz). The higher communication frequency eliminated alien crosstalk which allows for longer range at 10 Gb/s .

Application
Mainly used in the wiring system betweenwork area correspondence leading-out terminal and distribution wiring frames connection.As well as used in the housing synthesis wiring system between user correspondence leading out terminal and patch pannel.

High Speed Solid Bare Copper 24AWG 26AWG 0.5mm FTP Cat5e CableHigh Speed Solid Bare Copper 24AWG 26AWG 0.5mm FTP Cat5e Cable
FAQ
Q1: Are you a factory or trading company?
A:We are a factory specializing in manufacturing coaxial cable,lan cable,speaker cable,alarm cable etc,.And as everyone knows,we are faithful and professional.
Q2: Can I get samples to test before I place an order?
A:Yes ,samples are available,and the samples are refundable after you place an order.
Q3: How do you factory think about quality control?
A: Quality is the most important,and that's why the raw material we choose are of high quality.
Q4:Do you accept OEM order and how long will you shipping after place an order?
A:We can manufacture according to customer's request and usually we can deliver goods 15-20 days after we receive your deposit.
Q5:What is your payment terms?
A:Usually ,we accept T/T,and if you have other payment requirements,you can negotiate with us.
Product tags

solid copper cat6 cable

,

solid copper cat5e cable

,

cat5e solid copper cable
