G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable
G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable
G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable
G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable
G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable
G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable
G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable
G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable
G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable
G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable
G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable
G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable
Specifications
Brand Name :
OEM/ ODM/ YUEXIANKE
Model Number :
GJYXFDCH
Certification :
UL/ CE/ ETL/ ROHS/ ANATEL
Place of Origin :
China
MOQ :
1000 Meters
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :
100000 Meters/Day
Delivery Time :
7~15Work Day
Packaging Details :
1Km/drum , fumigated wooden or iron drum as customer required
Number of Conductors: :
4
Length of Reel: :
1Km/reel
Operating temperature: :
- 40℃~ +60℃
Disk diameter: :
365mm
Sheath material: :
PE/LSZH
Application: :
FTTH & precast pigta
Fiber counts: :
4/6/8
Type: :
Fiber Optic Cable
Description

Outdoor 4 Core FTTH Drop Cable G657A2 Self-supporting Aerial GJYXFDCH Fiber Optic Cable

Product Description

Application:

FTTH & precast pigtail

Product description:

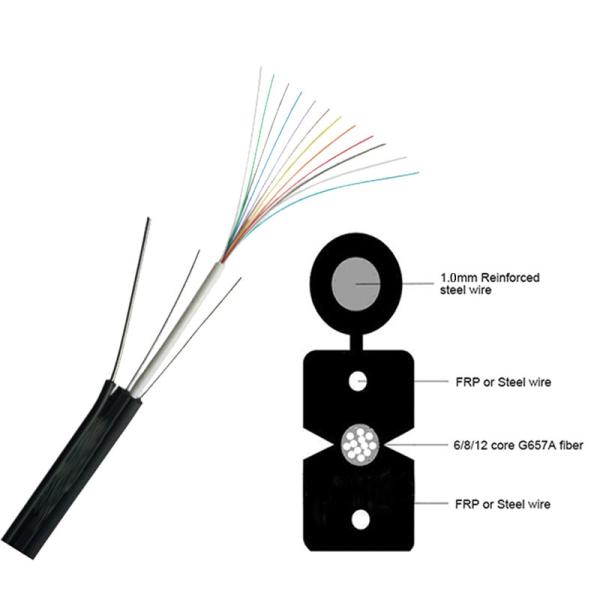

◇Optical fiber(s) in the center, dual paralleled steel wires (or FRP) as strength member, extruded LSZH sheath.
◇ The cable is small size and light with flute design which make cable easily separate the fibers by hands and convenient to be installed.

Operating temperature:

- 40℃~ +60℃
G657A2 Technical parameters
Item
Standard
Unit
Optical attenuation
1310nm
≤0.35
dB/km
1383nm
≤0.33
dB/km
1550nm
≤0.21
dB/km
1625nm
≤0.24
dB/km
Attenuation wavelength characteristic 1285nm～1330nm VS 1310nm
1360nm～1410nm VS 1383nm
1225nm～1575nm VS 1550nm
≤0.03
≤0.05
≤0.02
dB/km
Dispersion
1288nm～1339nm
|D|≤3.4
ps/(nm·km)
1271nm～1360nm
|D|≤5.3
ps/(nm·km)
1550nm
≤17.5
ps/(nm·km)
Zero-dispersion wavelength
1300～1324
nm
Zero-dispersion slope
≤0.092
ps/(nm2•km)
PMD
PMD (single fiber)
≤0.15
ps/√km
PMDQ (links)
≤0.08
ps/√km
Cladding diameter
125±0.7
μm
Cladding non-circularity
≤0.8
%
Core-cladding concentricity error
≤0.5
μm
Coating diameter
242±7
μm
Cladding/coating concentricity error
≤10.0
μm
Cut-off wavelength
1.18～1.33
μm
Macrobend attenuation
Radius
15
10
7.5
mm
Cycle number
10
1
1
1550nm
0.03
0.10
0.5
dB
1625nm
0.1
0.2
1.0
Bending radius
≥5
m
Tensile strength
Wilbur probability level
≥3.14 (15%)
Gpa
≥3.80 (50%)
Dynamic fatigue parameters
≥20
nd
Fiber proof-tested
1.3≤Fmin-max ≤8.9
N
1.0≤Fave≤5.0
N
Temperature cycling test: (-60℃～85℃,3 cycles)
Attenuation @1310nm & @1550nm
≤0.05
dB/km
Watersoak test: (23℃ for 30 days)
≤0.05
dB/km
Damp heat test: (85℃,85 for 30 days)
≤0.05
dB/km
thermal aging test
(85℃ for 30 days)
≤0.05
dB/km
Warm water test
(60℃ for 15 days)
≤0.05
dB/km

G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic CableG657A2 Self Supporting Aerial GJYXFDCH Fiber Optic CableG657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable

Packing & Shipping

G657A2 Self Supporting Aerial GJYXFDCH Fiber Optic Cable

FAQ

Q1: Are you a trading company or manufacturer ?
We are a professional manufacturer that producing communication cable, such as UTP/FTP/SFTP cat5,cat5e,cat6,cat7, patch cord,coaxial cable,power cable,etc. When you have trip in China, feel free to contact us to pick you up in the airport and welcome to visit our factory.

Q2: Why choose us?What is your advantage?
Our factory established in 2011, located in Baiyun district Dongguan City. Produce various cables for more than 9 years experience.You can get quality-assured products and a excellent buying experience from us!

Quality products: High quality raw material
Competitive price: Factory price
OEM service: Offer and welcome OEM service
Thoughtful service : Fast response within 24hours
Quick delivery time: Strict production plan and delivery date.

Q3: Will you accept samples order?
Yes, You are welcome to place sample order to test our superior quality and services.

Q4:Time delivery?
1*20'GP: Within 10 days after receive deposit.
1*40'GP: Within 12 days after receive deposit.
1*40'HQ: Within 15 days after receive deposit.
For Stock items,only 2 days for delivery time.

Q5: Payment term?
T/T, , Money Gram, Paypal, etc.
