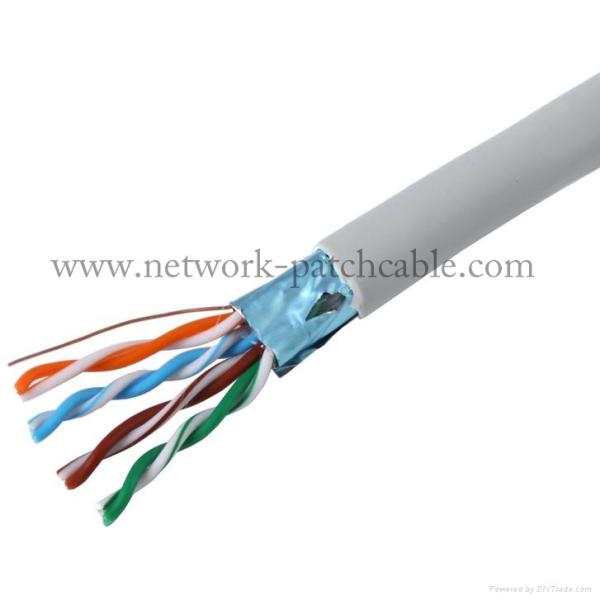

Computer 4P Cat 5e FTP Cable 24AWG LAN Cable IEC60332-1 1000 ft/box
Computer 4P Cat 5e FTP Cable 24AWG LAN Cable IEC60332-1 1000 ft/box
Specifications
Brand Name :
WONTERM
Model Number :
WT5803-F
Certification :
CE/FCC/UL/ROHS
Place of Origin :
China
MOQ :
30pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
2500pcs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
First packed in box and then put two boxes in one carton
Number of Conductors :
8
core pairs :
4 pairs twisted
Nominal Outer Diameter :
5.8mm
Jacket :
PVC(LSZH)
Temperature Rating :
Inatallation:0~+50°C/Operation:-20~+60°C
Test :
Pass Fluke
Description

Computer 4P Cat 5e FTP Cable 24AWG LAN Cable IEC60332-1 1000 ft/box

Specifications:

TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC
Fire protection – IEC60332-1 (CM)
Application: Horizontal communication cable; for indoor installation

CONSTRUCTION

Conductor: Bare Solid Copper
Conductor Dia.:0.51mm±0.005mm (24AWG)
Pair Insulation:Polyethylene
Shielding:Aluminum-Polyester Foil;Mg/Al braid shied
Outer Cable Diameter: 5.8 ± 0.2 mm

Pair Identification: Pair1= Blue/White

Pair2=Orange/White

Pair 3= Green/White

Pair4= Brown/White

Outer Jacket: PVC

Jacket Color:Grey RAL 9002 or as per request

TECHNICAL CHARACTERISTICS

Installation Temperature: 0°C to +60°C
Operating temperature: -20°C to +75°C
DC Resistance Unbalance :5%
Pair-to-Ground Capacitance Unbalance :330 pF/100 m
Capacitance:14pF/ft nominal

Pulling strength: 130 N
Minimum bend radius: 4 outer cable diameters
Dielectric Breakdown:1000 Volts DC Conductor to Conductor
Velocity of Propagation:PE=65%
Maximum Skew:45ns@100 meters

Description:

1.Comply with the UL requirements

2. We can produce network cable as per customer's request.

3. Pin assignment for RJ45 plug according to T568B wiring scheme.

4. Wirde range of Cord colors for selection according to meet different color coding requirement , in compliant with EIA/TIA 606 standard.

5. Cable color: Blue/Green/Yellow/Black/Gray/Red/White/Purple

Applications:

Use In : 1. Connect the router and computer

2. Connect the computer and displayer.

3. Connect the router and laptop.

4. Ues in telecom business.

5. Use in Building.

Competitive Advantage:

1. Strictly conform to CE,ROHS,ISO certificate
2. Well-trained and experienced staffs to answer all your inquires in fluent English.
3. Distributorship are offered for your unique design and some our current models.
4. Your inquiry related to our products or prices will be replied in 24 hours.
5. Quick delivery time(20ft,7~15days)
