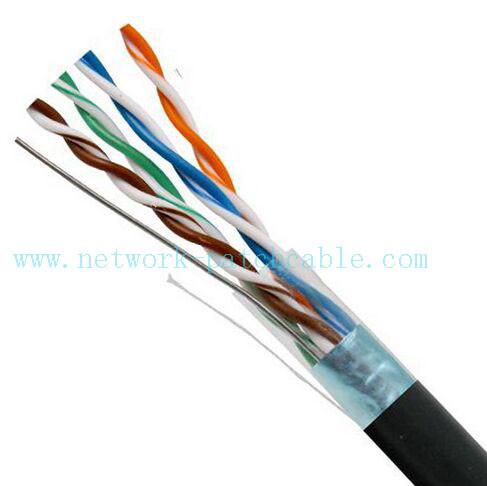

Black 4P Exterior Grade UTP Outdoor Cat5e Cable 100MHz Fire Resistant
Black 4P Exterior Grade UTP Outdoor Cat5e Cable 100MHz Fire Resistant
Specifications
Brand Name :
WONTERM
Model Number :
WT5803-or
Certification :
CE/FCC/UL/ROHS
Place of Origin :
China
MOQ :
30pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
2500pcs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
First packed in box and then put two boxes in one Carton.
Application :
outdoor
Nominal Outer Diameter :
5.0mm
Number of Conductors :
8
Packaging :
2 boxes/carton
Carton CBM(mm) :
42*37*37
Operating temperature :
-20°C to +75°C
Channel Bandwidth :
100MHz
Description

Black 4P Exterior Grade UTP Outdoor Cat5e Cable 100MHz Fire Resistant

Specifications:

FEATURES
TIA/EIA-568B.2-1;ISO/IEO 11801;
Fire protection – IEC60332-1 (CM)
Cable is used for indoor installation
CONSTRUCTION
Conductor: Bare Solid Copper
Conductor Dia.:0.51mm±0.005mm (24AWG)
Pair Insulation:Polyethylene
Outer Cable Diameter: 5.7 ± 0.2 mm		 Pair Identification: Pair1= Blue/White Pair2= Orange/White
Pair 3= Green/White Pair4= Brown/White
Outer Jacket: PE+PVC Compound Jacket
Jacket Color:Black Color
TECHNICAL CHARACTERISTICS
Installation Temperature: 0°C to +60°C
Operating temperature: -20°C to +75°C
DC Resistance Unbalance :5%
Pair-to-Ground Capacitance Unbalance :330 pF/100 m
Capacitance:14pF/ft nominal

Pulling strength: 130 N
Minimum bend radius: 4 outer cable diameters
Dielectric Breakdown:1000 Volts DC Conductor to Conductor
Velocity of Propagation:PE=65%
Maximum Skew:45ns@100 meters
PACKAGING
305m/1000ft Easy pulling box; 500m/wooden reel;1000m/wooden reel
ELECTRICAL CHARACTERISTICS

Frequency, MHz RL Attenuation, dB NEXT, dB PSNEXT, dB ELFEXT, dB PSELFEXT, dB
0.772 - 1.8 67 64 - -
1 20 2 65.3 62.3 63.8 60.8
4 23 4 56.3 53.3 51.7 48.7
8 24.5 5.8 51.8 48.8 45.7 42.7
10 25 6.5 50.3 47.3 43.8 40.8
16 25 8.2 47.3 44.3 39.7 36.7
20 25 9.3 45.8 42.8 37.7 34.7
25 24.3 10.4 44.3 41.3 35.8 32.8
31.25 23.6 11.7 42.9 39.9 33.9 30.9
62.5 21.5 17 38.4 35.4 27.8 24.8
100 20.1 22 35.3 32.3 23.8 20.8

Applications:

Our inquiries:
1. Any inquiries will be replied within 24 hours.

2. Professional manufacturer, 12 years manufacturing experience.

3. OEM/ODM are available
1) Printing your logo on the cable.
2) Printing your logo on the box, making according to your design.
3) Any your idea on cable, packing box are available.

4. High quality, reasonable and competitive price, fast lead time.

5. Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.

6. Faster delivery:
Sample order if have in stock, and 3-7 days for bulk production.

7. Payment:
We can accept payment methods: L/C, T/T, Western Union. Others payment can negotiation.
