Outdoor 2~288 core Optical Fiber Cable GYTY53 Loose Tube Stranding
Outdoor 2~288 core Optical Fiber Cable GYTY53 Loose Tube Stranding
Outdoor 2~288 core Optical Fiber Cable GYTY53 Loose Tube Stranding
Outdoor 2~288 core Optical Fiber Cable GYTY53 Loose Tube Stranding
Specifications
Brand Name :
OEM
Model Number :
GYTY53
Certification :
CE/FCC/UL/ROHS
Place of Origin :
China
MOQ :
3pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
100pcs per month
Delivery Time :
15 working days after received your payment
Packaging Details :
Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer's requirements are also welcomed
Jacket :
PE
fiber count :
4fibers
Struture :
stranded loose tube
core :
2~288 core
mode :
single mode /muilt-mode
Description

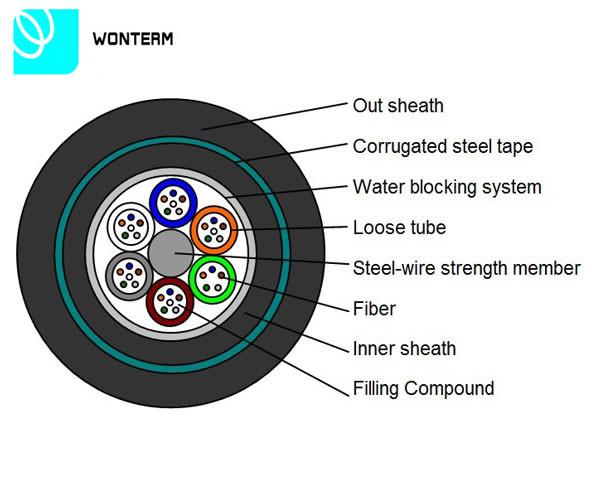

Outdoor 2~288 core GYTY53 Loose Tube Stranding optical fiber Cable

Characteristics:

• Special tube filling compound ensure a critical protection of fiber
• Crush resistance and flexibility
• Steel wire as the central strength membe
• Loose tube filling compound
• 100% cable core filling
• APL moisture barrier
• Water-blocking material

Application:

• Adopted to Outdoor distribution.
• Suitable for aerial duct and buried method.
• Long distance and local area network communication

Technical Parameters

Cable Count Out sheath
Diameter		 Weight Minimum allowable Tensile Strength
(N)		 minimum allowable Crush Load
(N/100mm)		 Minimum Bending Radius
(MM)		 Storage
temperature
(MM) (KG) short term long term short term long term short term long term (°C)
24 12.0 155.00 3000 1000 3000 1000 20D 10D -40+60
36 12.0 155.00 3000 1000 3000 1000 20D 10D -40+60
42 12.0 155.00 3000 1000 3000 1000 20D 10D -40+60
48 13.0 155.00 3000 1000 3000 1000 20D 10D -40+60
60 13.0 185.00 3000 1000 3000 1000 20D 10D -40+60
72 13.0 215.00 3000 1000 3000 1000 20D 10D -40+60
96 14.5 215.00 3000 1000 3000 1000 20D 10D -40+60
144 18.3 275.00 3000 1000 3000 1000 20D 10D -40+60

Packing and Shipping:

Normal cable factory length: from 2000m to 5000m or other required.
All cables will be delivered on drums with protection of both ends of the cable.
Each drum will have a waterproof mark, with clear factory name, date, cable type, cable length in unit gross weight, cable outer diameter, cable weight and so on and will be provided the length of all fibers in each drum.
