Copper 23 American Wire Gauge category 6 utp cable 0.5mm PVC 305m
Copper 23 American Wire Gauge category 6 utp cable 0.5mm PVC 305m
Copper 23 American Wire Gauge category 6 utp cable 0.5mm PVC 305m
Copper 23 American Wire Gauge category 6 utp cable 0.5mm PVC 305m
Copper 23 American Wire Gauge category 6 utp cable 0.5mm PVC 305m
Copper 23 American Wire Gauge category 6 utp cable 0.5mm PVC 305m
Specifications
Brand Name :
WONTERM
Model Number :
WT6803
Certification :
CE/FCC/UL/ROHS
Place of Origin :
China
MOQ :
30pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
30000m per month
Delivery Time :
10 working days after received your payment

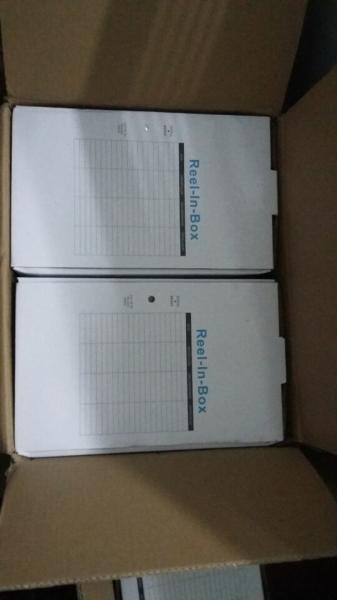

Packaging Details :
305/box
Nominal Outer Diameter :
5.6mm
Conductor Material :
Copper
HS Code :
8536901100
Size of Conductor :
23 American Wire Gauge
Numbers of Conductor :
8
Wire Core Material :
Bare Copper Wire
Description

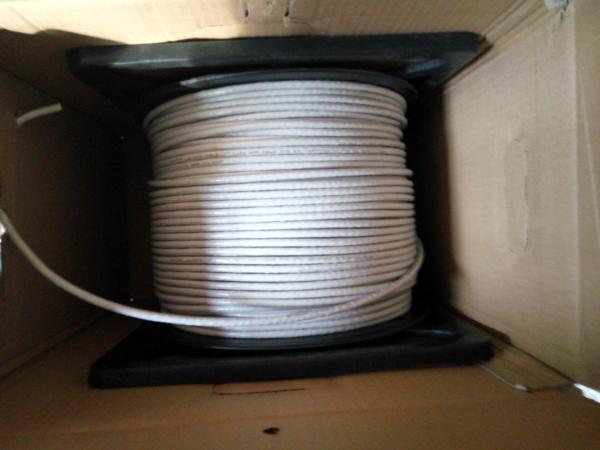

Copper 23 American Wire Gauge category 6 utp cable 0.5mm PVC 305m

Specifications:

Conductor: 24AWG(0.50+/-0.05mm) Solid/stranded Bare Copper,CCA,CCAG,CCAU,CU,22/23/24/26AWG
Cabling : 4 twishted pairs cabled around a cross shaped central filler into the cable core.
Colour:grey,blue,red,yellow,green,black,white, also as customers requirements.
Pair Insulation:Polyethylene, 0.90+/-0.05mm HDPE
Outer Cable Diameter: 5.7 ± 0.2 mm
Options:Jelly filled ,UV,FR,ROHS complied is available
Operating temperature: -20°C to +75°C

Description:

Bare copper, PE insulation, FR PVC/LSOH PVC RoHS jacket
Standards:
ISO/IEC11801, ANSI/TIA/EIA-568B,

Electrical Characteristics:

1.0`250.0MHz Impedance(ohms) 100±15
1.0~250.0MHz Delay Skew(ns/100m) ≤45
20ºC Conductor D.C, Resistance(ohms/km) ≤65.8
Unbalance of Pair(%) ≤1.0

Attenuations:

Frequency
(MHz)
Attenuation
(dB/100m)
Return loss
(dB/100m)
Pair to Pair
NEXT
(dB/100m)		 ELFEXT
(dB/100m)
0.77
1
4
8
10
16
20
25
31.25
62.5
100
155
200
300
350		 1.80
2.00
4.00
5.80
6.50
8.20
9.20
10.40
11.70
17.00
22.00
28.10
32.40
41.00
44.90		 NA
20.00
23.00
24.50
25.00
25.00
25.00
24.30
23.60
21.50
20.10
18.80
18.00
16.80
16.30		 70.00
68.30
59.30
54.80
53.30
50.30
48.80
47.30
45.90
41.40
38.30
35.50
33.80
32.30
30.20		 69.00
66.80
54.70
48.70
46.80
42.90
40.70
38.80
36.90
30.80
26.80
22.90
20.70
17.20
15.90

Copper 23 American Wire Gauge category 6 utp cable 0.5mm PVC 305m
