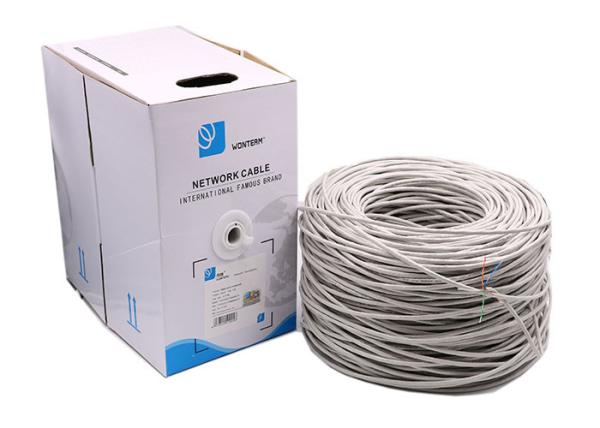

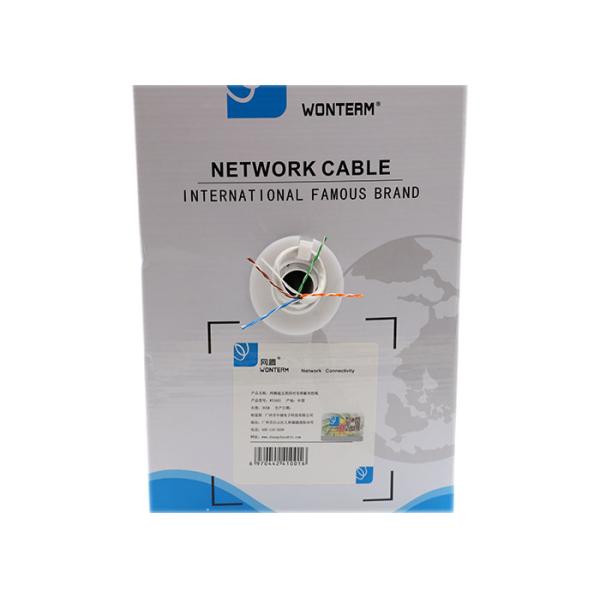

24AWG 0.5mm pass fluke Premium Solid UTP Cat5e Ethernet Cables grey 1000 Feet
24AWG 0.5mm pass fluke Premium Solid UTP Cat5e Ethernet Cables grey 1000 Feet
24AWG 0.5mm pass fluke Premium Solid UTP Cat5e Ethernet Cables grey 1000 Feet
24AWG 0.5mm pass fluke Premium Solid UTP Cat5e Ethernet Cables grey 1000 Feet
24AWG 0.5mm pass fluke Premium Solid UTP Cat5e Ethernet Cables grey 1000 Feet
24AWG 0.5mm pass fluke Premium Solid UTP Cat5e Ethernet Cables grey 1000 Feet
Specifications
Brand Name :
WONTERM
Model Number :
WT5803
Certification :
CE/FCC/UL/ROHS
Place of Origin :
China
MOQ :
30pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
2500pcs per month
Delivery Time :
10 working days after received your payment
Packaging Details :

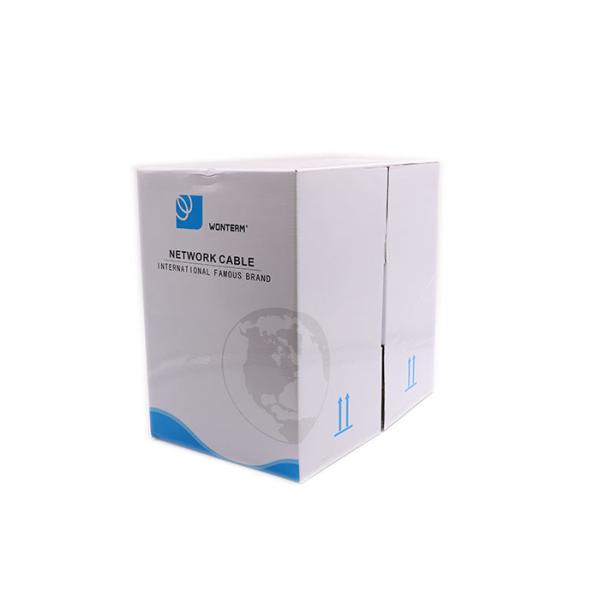

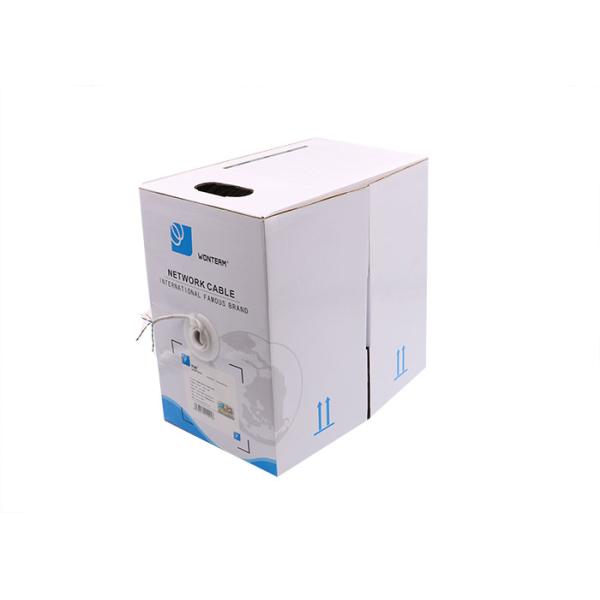

First packed in box and then put two boxes in one Carton.
Model :
UTP Cat5e lan cable
Application :
Local Communication Cable
Export Markets :
Global
Nominal Outer Diameter :
5.0mm
Temperature Rating :
Inatallation:0~+50°C/Operation:-20~+60°C
Number of Conductors :
8
Description

24AWG 0.5mm pass fluke Premium Solid UTP Cat5e Ethernet Cables grey 1000 Feet

Specifications:

Model cat5e cable
Conductor Size 24AWG
4*2*1/0.50mm
Conductor Material BC(copper)
Nuber Of Conductor 4P
Shiled UTP
Indoor / Outdoor Single jacket
Insulation Material PE , HDPE
Insulation Thickness 0.55mm
Number of pairs: 4 pairs

Pair1: Orange/White Orange

Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown
Jacket Material PVC /LSZH
Jacket Thickness 0.92-0.95mm
DC Resistance(Max.) 9.5Ω/100m
DC Resistance Imbalance 2.50%
Working Capacitance(Max.) 5.4nF/100m
Insulation Resistance 10000MΩ.km
Transmission Velocity 65%
Operating Temperation -20 °C - +75 °C
PVC Jacket Color As client’s request.

24AWG 0.5mm pass fluke Premium Solid UTP Cat5e Ethernet Cables grey 1000 Feet

Description:

-Rated Temperature:60°c, 75°c

-Bare Solid or Stranded Copper Conductor

-Colour-code PE Insulation

-Rip Cord(Optional)

-ETL verified to TLA/EIA-568B

DC Resistance <9.38Ω/100m
DC Resistance Unbalance 3%
Mutual Capacitance 5.6nf/100m
Capacitance Unbalance <330 pF/100m

Characteristic Impedance

(ohms)

1-100MHz:100+/-15%

101-250MHz:100+/-15%
NVP CMP-70% CMR-68%
TCL 30-10log(f/100|dB
Delay Skew ≤45ns

Applications:

1. Application structured cabling for computer networks such as Ethernet over twisted pair.

2. CAT5 cable support 10/100 Ethernet.

3. CAT5e cable will support Ethernet, and Gigabit Ethernet. It can completely backwards compatible 4. Product testing is using MEA network analyzer that imported from Germany.

24AWG 0.5mm pass fluke Premium Solid UTP Cat5e Ethernet Cables grey 1000 Feet

Competitive Advantage:

1000Base-T is the standard applied by the Cat5e system during the Gigabit Ethernet transaction, which could run
properly on the Cat5 Twist-Pair that meets the standard of ANSI/TIA/EIA-568B.1000Base-T would finish the data transaction by applying to 4 pairs of Cat5 Twist-Pair and each of them is responsible for a 250Mbps data properly on the Cat5 Twist-Pair that meets the standard of ANSI/TIA/EIA-568B .1000Base-T would finish the data transaction by applying to 4 pairs of Cat5 Twist-Pair and each of them is responsible for a 250Mbps data flow. However, as the designed bandwidth is only 100MHz
for the Cat5e Twist-Pair, it must satisfy some special requirements to achieve the two-way transmission within the 1000Mbps network.
