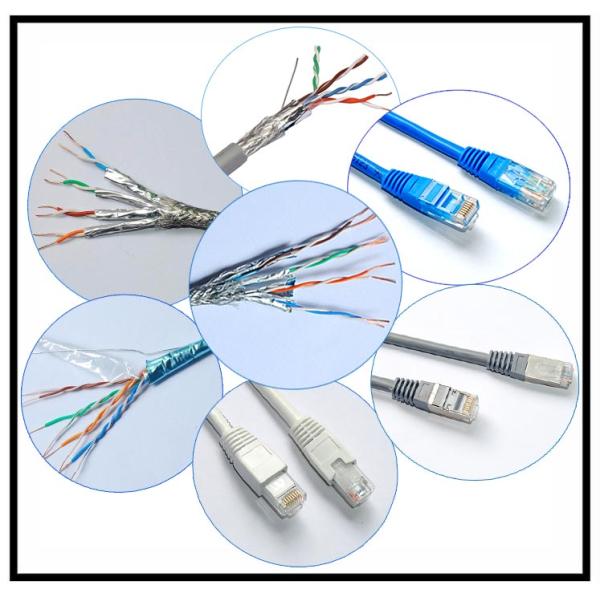

IEEE 802.3 Bare Copper Wire Sftp lan cable cat 7 305m or 500m / roll
IEEE 802.3 Bare Copper Wire Sftp lan cable cat 7 305m or 500m / roll
IEEE 802.3 Bare Copper Wire Sftp lan cable cat 7 305m or 500m / roll
IEEE 802.3 Bare Copper Wire Sftp lan cable cat 7 305m or 500m / roll
Specifications
Brand Name :
WONTERM
Model Number :
WT7803-SF
Certification :
CE/FCC/UL/ROHS
Place of Origin :
China
MOQ :
30pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
2500pcs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
305m/roll, PE film packaging, and paper
Carton CBM(mm) :
45*37*37
Nominal Outer Diameter :
8.0mm
HS Code :
8544421100
Color :
orange , black
Wire Core Material :
Bare Copper Wire
Description

IEEE 802.3 Bare Copper Wire Sftp lan cable cat 7 305m or 500m / roll

Specifications:

Bare copper 0.585mm+1.5Foam PE+ AL FOIL for every pair+ overall shield with tinned copper drain wire+ 96x0.12mm AL- MG braid+ OD8.50, FIRE RETARDANT orange PVC or LSZH Green PVC jacket.

APPLICATION:


1. 10BASE-T, 100BASE-T Fast Ethernet (IEEE 802.3)
2. All propose category 7 requirements as per ANSI/TIA/EIA, ISO/IEC, and CENELEC EN Standards
3. ANSI/TIA/EIA 568-B, 2-10. Draft
4. ISO/IEC 11801 CLASS F. 2ND Edition

Package


305m or 500m /roll, plastic reel or wooden reel in other length available upon request.

Description:

* Sheath material: LSZH or PVC
* Nominal Dia.: 7.5 ± 0.2mm
* Average thickness: 0.65mm
* Minimum point thickness: 0.55mm

Transmission Properties: (electric at 20°C)

Frequency [MHz] 1 10 16 20 31.25 62.5 100 300 600
Typical values (attenuation) [db/100m] 1.8 5.2 6.8 7.7 9.6 13.8 17.5 31.5 45.0
Typical values (NEXT) [db/100m] >100 >100 >100 >100 >100 >100 98.0 93.0 89.0
Typical values (PSNEXT) [db/100m] 98.0 98.0 98.0 98.0 98.0 98.0 96.0 91.0 87.0
Typical values (ELFEXT) [db/100m] 93.0 93.0 93.0 93.0 90.0 86.0 84.0 65.0 45.0
Typical values (PSELFEXT) [db/100m] 91.0 91.0 91.0 91.0 88.0 84.0 82.0 63.0 43.0
Typical values (RL) [db/100m] 26.2 34.7 36.3 35.7 36.3 36.1 36.1 31.7 27.5
Typical values (ACR) [db/100m] 98.2 94.8 93.2 92.3 90.4 86.2 80.5 61.5 44.0

IEEE 802.3 Bare Copper Wire Sftp lan cable cat 7 305m or 500m / roll
