1000ft Cat5e UTP 0.5mm Solid Bare Copper RJ45 -RJ45 Plug Lan Cable Blue PVC
1000ft Cat5e UTP 0.5mm Solid Bare Copper RJ45 -RJ45 Plug Lan Cable Blue PVC
1000ft Cat5e UTP 0.5mm Solid Bare Copper RJ45 -RJ45 Plug Lan Cable Blue PVC
1000ft Cat5e UTP 0.5mm Solid Bare Copper RJ45 -RJ45 Plug Lan Cable Blue PVC
Specifications
Brand Name :
WONTERM
Model Number :
WT5803
Certification :
CE/FCC/UL/ROHS
Place of Origin :
China
MOQ :
30pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
2500pcs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
First packed in box and then put two boxes in one Carton.
Conductor :
Bare Copper
Rip Cord: :
Yes
Jacket Color :
Any color by request
Jacket :
PVC/LSZH
Number of Conductors :
8
Description

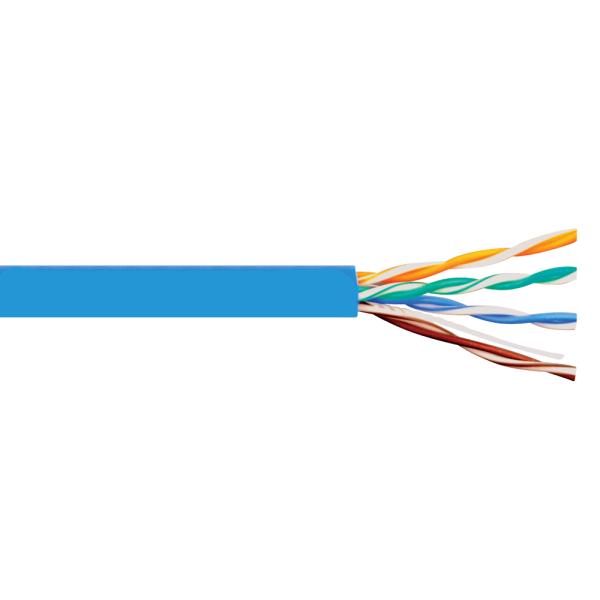

Cat5e UTP 0.5mm network cable RJ45 Plug Cat5e UTP Lan Cable Blue 1000ft

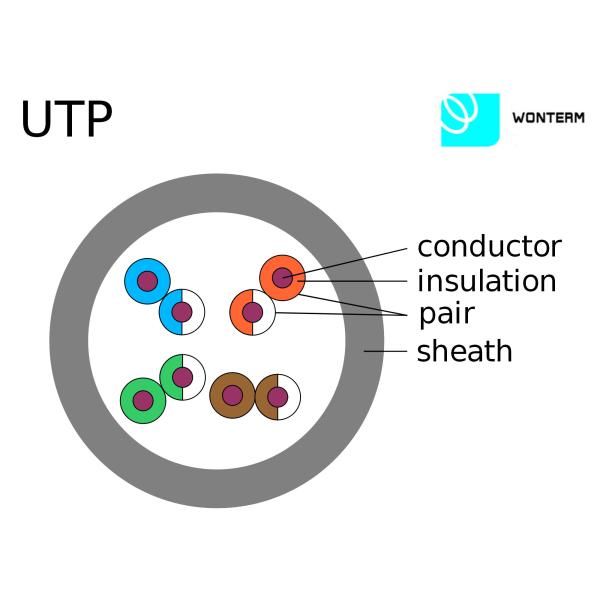

Cable Specifications:

Conductor Material: Solid Bare Copper CCA / CCAG available
A.W.G.: 24AWG (0.52mm) 25 or 26 AWG available
Pairs: 4 Twisted Pairs 2 Pairs available
Insulation Material: PE
Thickness: 0.21mm ± 0.02mm
O.D.: 0.95mm ± 0.02mm
Rip Cord Material: Nylon Cord
Jacket Material: PVC FR PVC or LSZH available
Thickness: 0.8mm
O.D.: 5.5mm ± 0.2mm
Color: White/Grey/Blue/Yellow/Green Any color by request

Physical Parameters:

Mutual Capacitance 5.8nF/100m
Characteristic Impedance 100Ω ± 15%,1~350MHz
Conductor DC Resistance 9.3Ω/100m Max.
Voltage 300 V
Delay Skew 25ns/100m Max.
Propagation Delay 536ns/100m Max.@ 100MHz
Velocity of Propagation 0.69
Bend Radius 4 × cable diameter
Storage Temp. –20 ℃ ~ 80℃
Operating Temp. –20 ℃ ~ 60℃

Packing Details:

Length per Roll 305m (1000ft) 100m / 500m /1000m by request
Inner Packing Easy Pull Box (Wooden or Plastic Reel available)
Size: 36×36×22cm
Outer Packing Carton
Size: 46×37.5×38cm 2 Boxes in 1 Carton

Welcome Your Cooperations:

1. Sample Policy:

Free samples can be provided as long as the esteemed customer undertakes the shipping charge.

2. Packing OEM Service:

We would like to provide packing OEM service when customer order quantity up to 500 boxes(305m per box).

3. Lead time:
when order quantity less than 500 boxes----within 10 days;
when order quantity between 500-2500 boxes----within 15 days;
when order quantity between 2500-20000 boxes----within 20 days.

(Lead time is negotiable when customer has special requirements.)

4. Payment terms:

T/T, 30-50% deposit before production, the rest shall be balanced after goods are ready or at sight of copy of Bill of Lading.

1000ft Cat5e UTP 0.5mm Solid Bare Copper RJ45 -RJ45 Plug Lan Cable Blue PVC1000ft Cat5e UTP 0.5mm Solid Bare Copper RJ45 -RJ45 Plug Lan Cable Blue PVC
