0.9mm Sc Multimode Fiber Optic Pigtail Sc Singlemode Optical Fiber Pigtail
0.9mm Sc Multimode Fiber Optic Pigtail Sc Singlemode Optical Fiber Pigtail
0.9mm Sc Multimode Fiber Optic Pigtail Sc Singlemode Optical Fiber Pigtail
0.9mm Sc Multimode Fiber Optic Pigtail Sc Singlemode Optical Fiber Pigtail
0.9mm Sc Multimode Fiber Optic Pigtail Sc Singlemode Optical Fiber Pigtail
0.9mm Sc Multimode Fiber Optic Pigtail Sc Singlemode Optical Fiber Pigtail
Specifications
Brand Name :
OEM
Model Number :
WTFP001
Certification :
CE/FCC/UL/ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
100000pcs per month
Delivery Time :
5 working days after received your payment
Packaging Details :
packed in box
Fiber Type :
Single Mode/Om1/Om2/Om3/Om4 for Option
Connection Structure :
LC-SC-DX Multi-mode Fiber
Diameter of The Cable :
0.9/2.0/3.0/4.8/7.0/9.8 and So on
Model :
Singlemode or Multimode
Sheath Material :
PVC; Lszh; PE;
Description

0.9mm Sc Multimode Fiber Optic Pigtail /Sc Singlemode Optical Fiber Pigtail

ORDERING OPTIONS

Fiber Type Cable Type Connector Boot Size Boot Color Polishing Type Length
SM: 9/125μm Simplex(2-fiber) Male 2.0mm Black PC Customized
MM: 50/125μm Duplex Female 3.0mm APC
MM: 62.5/125μm Ribbon Ribbon

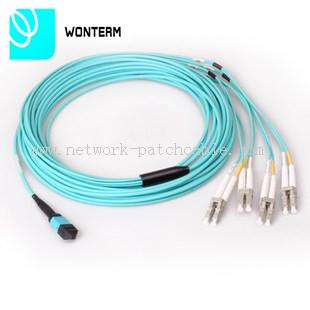

MM: OM3 Breakout

Features


1. Low insertion loss and high retum loss
2. Mechanicl properties meet standards of IEC874-7 and CECC86115-80.
3. For the connector,ceramic ferrule can provide APC type(conical type or step tye) and PC type.
4. All materials meet the RoHS standard.
5. The patch cable can be customized according to customers specific requirements
6. Compliant with Telcordia GR-326-CORE,IEC and ROHS standards
7. Strict quality testing:IL and RL 100% test.
8. A variety of BOOT color choices.

0.9mm Sc Multimode Fiber Optic Pigtail Sc Singlemode Optical Fiber Pigtail

Description:

Fiber jumper of the Single or multi mode is available

Cable jacket PVC or LSZH cable is available

Excellent changeability and repeatability

Operating temperature range: -20ºC to +70ºC

Storage temperature range: -40 to 80° C

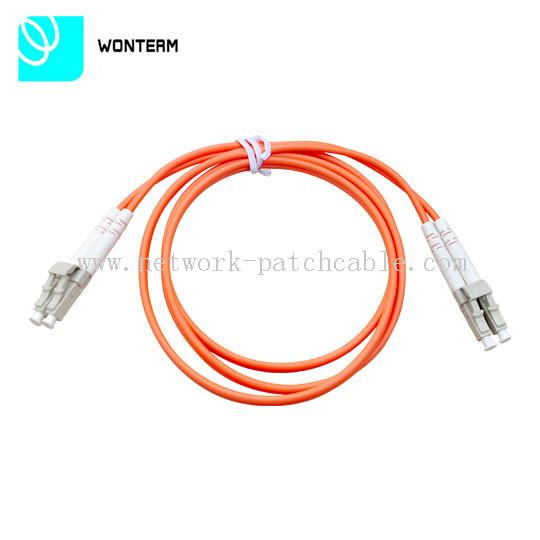

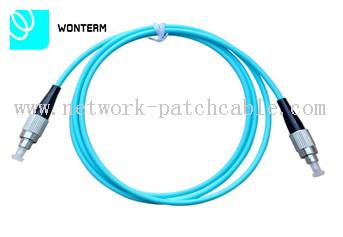

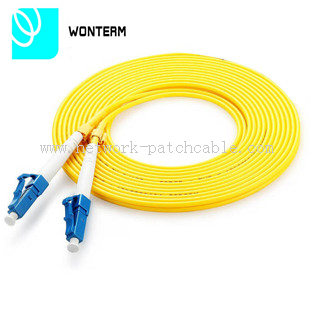

Color of cable: Yellow (SM), Orange (MM), and Aqua (OM3)

Patch Cord Production Conventional Process Flow Diagram:


Order Confirmation →Cleaving Cable →Passing Through Components And Parts →Striping Cable And Striping Fiber →Epoxy Defoaming →Checking Fiber And Cleaning →Polishing →Inserting Fiber And Curing →End Face Initial Inspection →Optical Indexes Testing →End Face Inspection →Assembling and Crimping →Machine Grinding →Cleaving Fiber And Manual Grinding → NG →Tensile Test →Analysis →Analysis →Appearance Inspection →Packing

0.9mm Sc Multimode Fiber Optic Pigtail Sc Singlemode Optical Fiber Pigtail
