GYXTC8S 2~24 cores Optical Fiber Cable Central Tube Figure
GYXTC8S 2~24 cores Optical Fiber Cable Central Tube Figure
GYXTC8S 2~24 cores Optical Fiber Cable Central Tube Figure
GYXTC8S 2~24 cores Optical Fiber Cable Central Tube Figure
Specifications
Brand Name :
OEM
Model Number :
GYXTC8S
Certification :
CE/FCC/UL/ROHS
Place of Origin :
China
MOQ :
3pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
100pcs per month
Delivery Time :
15 working days after received your payment
Packaging Details :
Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer's requirements are also welcomed
Number of Conductors :
≥ 10
Fiber count :
2~24
Jacket :
PE
shape :
figure 8
Description

GYXTC8S 2~24 cores Fiber Optic Cable Central Tube Figure 8 Self-support Cable

Technical Characteristics


1. Fiber count: 2~24
2. Low loss, low dispersion
3. Proper design and precise excess length control and cabling process offers cable superior mechanical and environmental properties
4. Corrugated steel tape armor brings better side pressure resistance and humidity proof performance
5. Compact construction, light weight, self-supporting installation.

Performance


1. Applicable to long distance, inter-exchange communication, CATV, computer network transmission system, etc.
2. Minimum bend radius: static 10D, Dynamic 20D
3. Operation temperature: -40 ~ +70

Fiber color code

No. 1 2 3 4 5 6
Color Blue Orange Green Brown Gray White
No. 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua
No. 13 14 15 16 17 18
Color Blue+R Orange+R Green+R Brown+R Gray+R White+R
No. 19 20 21 22 23 24
Color Red+R Natural+R Yellow+R Violet+R Pink+R Aqua+R

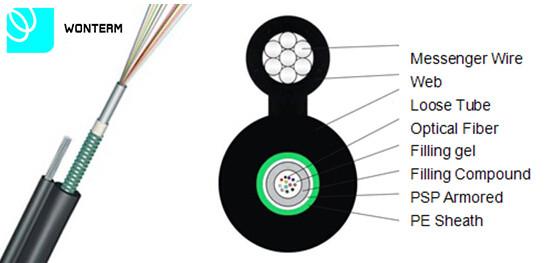

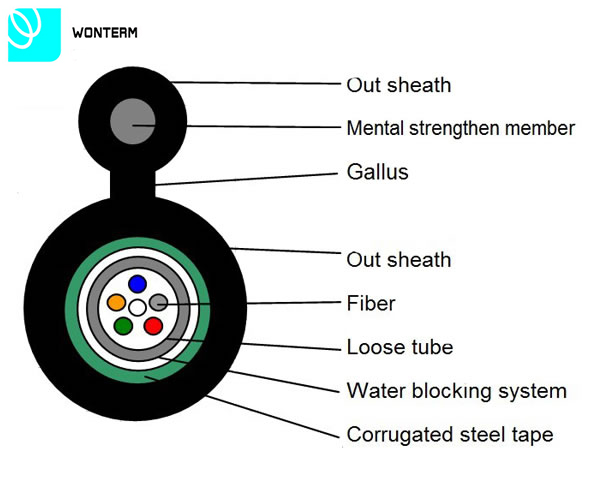

Cable structure and parameter

Fiber

number

 Tube Diameter Messenger strand steel wire diameter Sheath thickness (nominal*)

Diameter

W*H (Nominal*)

Weight

(Approx.)
mm mm mm mm kg/km
12 3.0 3.0 (1.0mm*7) 1.5 7.3*14.3 116
24 3.6 3.0 (1.0mm*7) 1.5 7.9*14.9 125

GYXTC8S 2~24 cores Optical Fiber Cable Central Tube Figure
