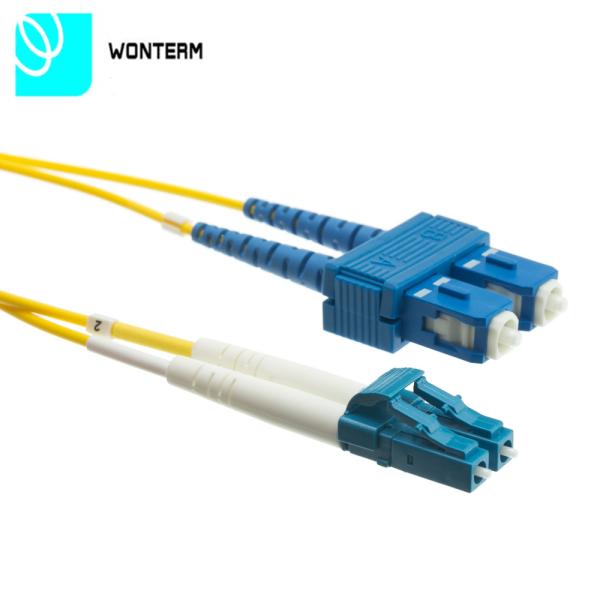

Multimode Fiber Optic Cabling Fiber Patch Cables OM3 LC-SC-DX ROHS
Multimode Fiber Optic Cabling Fiber Patch Cables OM3 LC-SC-DX ROHS
Multimode Fiber Optic Cabling Fiber Patch Cables OM3 LC-SC-DX ROHS
Multimode Fiber Optic Cabling Fiber Patch Cables OM3 LC-SC-DX ROHS
Specifications
Brand Name :
OEM
Model Number :
WTFP001
Certification :
CE/FCC/UL/ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
100000pcs per month
Delivery Time :
5 working days after received your payment
Packaging Details :
packed in box
Material Shape :
Round Wire
Connection Structure :
LC-SC-DX Multi-mode Fiber
Origin :
Shenzhen China
Cable Type :
Fiber Optics
Sheath Material :
PVC; Lszh; PE;
Cable Jacket Color :
Blue, Beige, Aqua, Black, Green, Yellow,Customized
Description

Multimode Fiber Optic Patch Cables OM3 LC-SC-DX Multi-mode Fiber

Product Description

ITEM PARAMETER
Applicative connector type MTRJ,MPO,MTP
Fiber mode Single mode(PC) Multi-mode(PC)
Operating wavelength 1250~1650nm 850nm, 1300nm
Test wavelength 1310nm, 1550nm 850nm, 1300nm
Insertion Loss MT-RJ: typical≤0.40dB,Max≤0.50dB
MPO: typical≤0.50dB,Max≤0.70 dB		 MT-RJ: typical≤0.25dB,Max≤0.30dB
MPO: typical≤0.40dB,Max≤0.50dB
Return Loss APC≥50dB /
Applicative cable OD. MTRJ: Duplex ∮2.0mm / Simplex ∮3.0mm; MPO: Ribbon fiber/breakout fiber
Repeatability ≤0.10dB
Interchangeability ≤0.20dB
Durability ≤0.20dB typical change,500 mating
Tensile Strength ≥120N(without 0.9mm patchcord) or customized

Multimode Fiber Optic Cabling Fiber Patch Cables OM3 LC-SC-DX ROHS

Description:

Fiber cable diameter: 0.9, 2.0, and 3.0mm

Fiber jumper of the Single or multi mode is available

Fiber optic cable implex or duplex is available

Cable jacket PVC or LSZH cable is available

Excellent changeability and repeatability

Tensile strength: 10N

Operating temperature range: -20ºC to +70ºC

Storage temperature range: -40 to 80° C

Color of cable: Yellow (SM), Orange (MM), and Aqua (OM3)

Applications:

1. Wiring of local area network between different enterprise buildings

2. Connection of optical links in optical active devices

3. Wiring in communication base station and distrinbtion case

4. Production and testing of optical devices

5. Optical fiber communication system ,CATV and telecommunication network

6. LANs and WANs

Multimode Fiber Optic Cabling Fiber Patch Cables OM3 LC-SC-DX ROHS

Multimode Fiber Optic Cabling Fiber Patch Cables OM3 LC-SC-DX ROHS
