HPE ProLiant DL345 Gen11Server

Technical Specifications

HPE ProLiant DL345 Gen11

Are you looking for a single-socket scalable server solution to power your virtualized data-intense, largecapacity storage workloads? The HPE ProLiant DL345 Gen11 server is a scalable 2U 1P solution that delivers exceptional compute performance and large capacity storage options at 1P economics. Powered by 4th Generation AMD EPYC™ Processors with up to 96 cores, increased memory bandwidth (up to 3 TB*), high-speed PCIe Gen5 I/O and EDSFF* storage, up to 20LFF/ 34SFF, and up to 4 GPUs* at the front, this server is a superb single-socket 2U solution for your data-intensive workloads. Enhanced security features with the HPE silicon root of trust are built into the firmware, creating a digital fingerprint for the AMD Secure Processor to validate safe operation prior to boot. The HPE DL345 Gen11 server provides impressive storage performance and options for data-intensive workloads like software-defined storage, video transcoding, and virtualized apps.

Chassis Types

• 8 SFF with options for aditional 16 SFF front drive bay, 8 SFF midtray and 2 SFF rear drives to total 34 SFF drives.

• 8 LFF with options for aditional 4 LFF front drive bay, 4LFF midtray and 4LFF rear drives to total 20 LFF drives.

• 36 EDSFF* drive bay.

• 4 Single Width or 2 Double Width GPUs* with 12 EDSFF* drive bay.

Notes: *EDSFF and GPU Mode-X support available 1H 2023, subject to change

Notes:

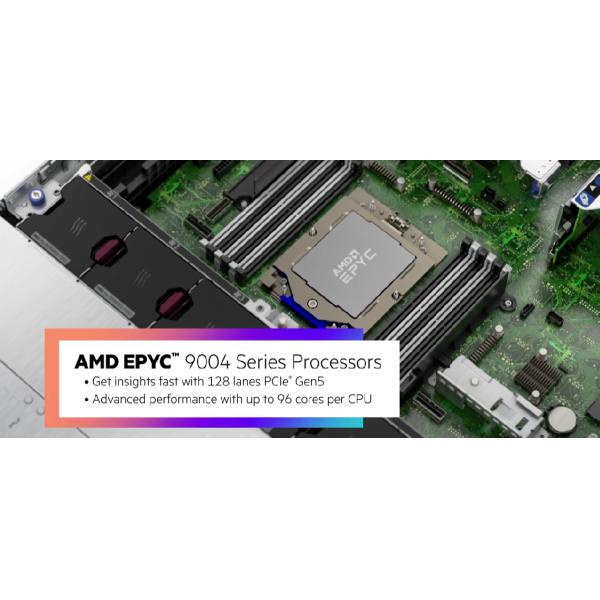

− 6096pin LGA SP5 new socket type.

− 1MB L2/Core, Up to 32MB L3/CCD

− All 4th generation AMD EPYC processors can support up to 3TB of memory each under 1DPC, 12 channel per processor.

− 128 PCIe 5.0 Lanes

− 64 IO Lanes support CXL1.1+ with bifurcations supported down to x4

− The wattage information indicates the cTDP (Configurable TDP) of the processor.

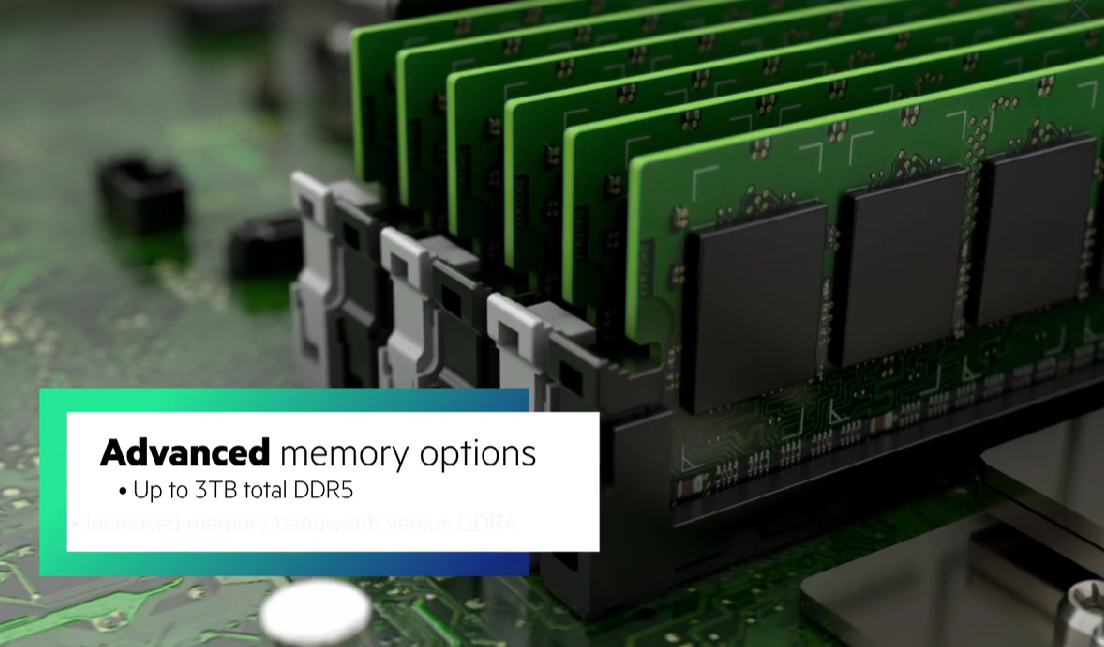

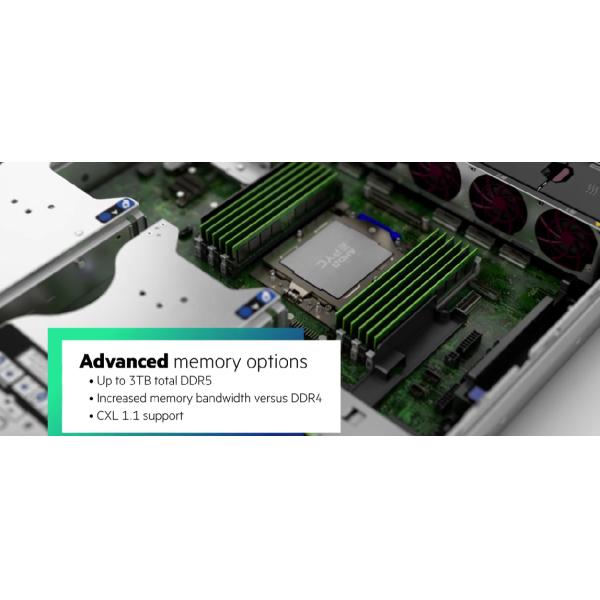

Memory Notes:

− All processors support up to 3TB memory per server. Maxmium Memory Capacity support available 1H 2023, subject to change

− LRDIMM and Persistent Memory is not supported.

− For additional information,

− For General Server Memory and Persistent Memory Population Rules and Guidelines,

Power Supply

• HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% Efficiency.

• HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% Power Efficiency.

• HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% Power Efficiency.

• HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit

Notes: Available in 94% Power Efficiency.200-240VAC power input only.
