Specifications
Brand Name :
H3C
Model Number :
H3C Switch S5720-56c-Ei-48s-AC
Place of Origin :
Fujian, China
Price :
$2,000.00/pieces 1-9 pieces
MOQ :
1 unit
Private Mold :
NO
Products Status :
Stock, Used, Stock
Ports :
≥ 48
Transmission Rate :
10/100/1000Mbps
Function :
LACP, SNMP
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
56 Gb/s
Product Name :
H3C Switch S5720-56c-Ei-48s-AC
Type :
Rack
Description
Huawei Switch S5720-56c-Ei-48s-AC 48*100/1000base-X 4*10ge SFP 48 Port 10/100/1000Mbps

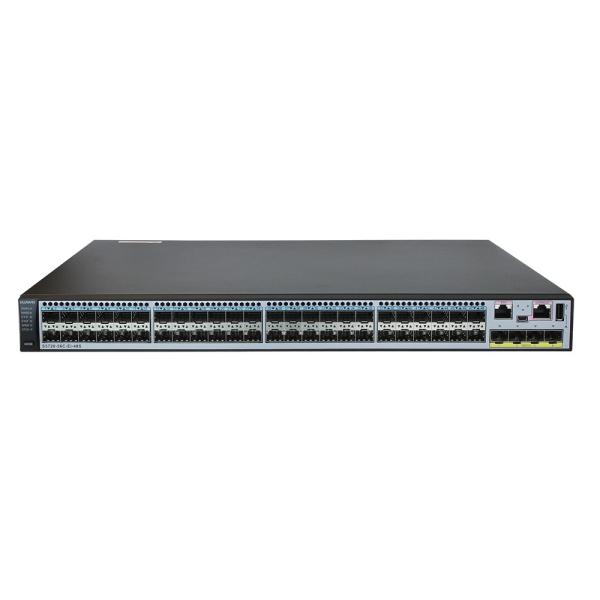

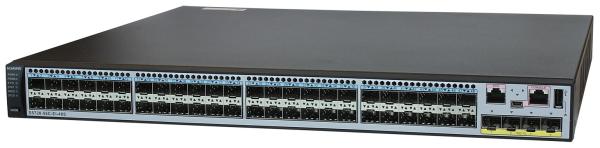

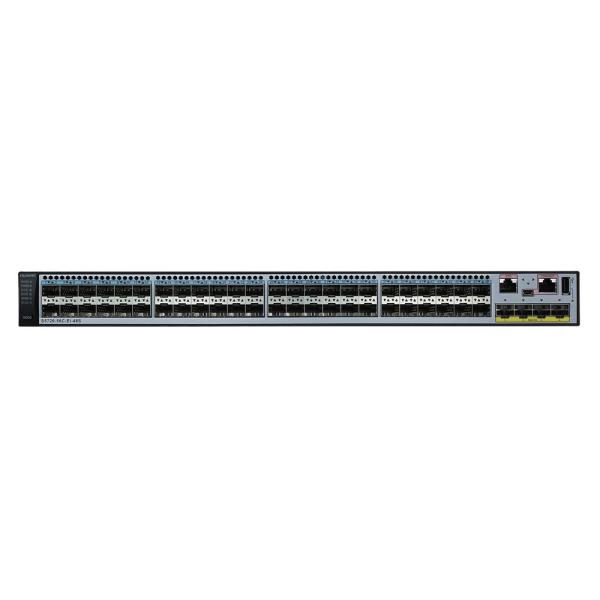

Huawei S5720-56C-EI-48S-AC Switch is an Enhanced Gigabit Switch with 48 Gig SFP, 4 10 Gig SFP+ and Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default

Huawei S5720-56C-EI-48S-AC Switch Product Overview

Thw switch offers Forwarding performance: 162 Mpps and Switching capacity: 598 Gbit/s. It provides flexible GE access ports (including optical, electrical, and combo ports) and 10GE uplink ports. Built on next-generation high-performance processors and Versatile Routing Platform (VRP), S5720-EI provides larger table sizes and higher hardware processing capabilities than equivalent switches. With enhanced network admission control (NAC) functions, S5720-EI supports 802.1x authentication, MAC address authentication, Portal authentication, and hybrid authentication, and can dynamically delivery user policies such as VLANs, QoS policies, and access control lists (ACLs). It also supports user management based on user groups. You can specify authentication-free IP network segments and enable redirection of HTTP connection requests to realize fast deployment of clients. If clients do not support HTTP access, the S5720-EI can trigger Portal authentication for the clients

Huawei S5720-56C-EI-48S-AC Switch Product Specifications

Item Description
Model S5720-56C-EI-48S-AC
Port 48 Gig SFP, 4 10 Gig SFP+
Part number 2359558
Memory (RAM) 2 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Ports on the 2-port 10GE RJ45 rear interface card: ±2 kV in common mode
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Weight (with packaging) 10.1 kg (22.27 lb)
Stack ports Ports on the 2-port 10GE SFP+ rear interface card
Ports on the 2-port 10GE RJ45 rear interface card
Ports on the 2-port QSFP+ rear stack card
RTC Supported
RPS Not supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
-48 V DC to -60 V DC
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
-36 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 104 W
Typical power consumption (30% of traffic load) 68.82 W (without card)
Tested according to ATIS standard 76.55 W (with 2*10GE optical card)
EEE enabled 81.23 W (with 2*QSFP+ stack card)
No PoE power consumption 83.78 W (with 2*10GE electrical card)
Operating temperature 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 51.2 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude AC power modules configured: 0-5000 m (0-16404 ft.)
DC power modules configured: 0-2000 m (0-6562 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.)

Huawei S5720-56C-EI-48S-AC Switch Product Features

  • S5720-EI provides excellent QoS capabilities and supports queue scheduling and congestion control algorithms. Additionally, it adopts innovative priority queuing and multi-level scheduling mechanisms to implement fine-grained scheduling of data flows, meeting service quality requirements of different user terminals and services
  • S5720-EI provides a series of mechanisms to defend against DoS and user-targeted attacks. DoS attacks are targeted at switches and include SYN flood, Land, Smurf, and ICMP flood attacks. User-targeted attacks include bogus DHCP server attacks, IP/MAC address spoofing, DHCP request flood, and change of the DHCP CHADDR value.
  • S5720-EI uses the mature, stable VRP software platform and supports IPv4/IPv6 dual stacks, IPv6 routing protocols (RIPng, OSPFv3, BGP4+, and IS-ISv6), and IPv6 over IPv4 tunnels (including manual, 6-to-4, and ISATAP tunnels). With these IPv6 features, the S5720-EI can be deployed on a pure IPv4 network, a pure IPv6 network, or a shared IPv4/IPv6 network, helping achieve IPv4-to-IPv6 transition.

Huawei S5720-56C-EI-48S-AC Switch Product and More S5720-EI Models

  • S5720-32P-EI-AC 24 Ethernet 10/100/1000 ports, 4 100/1000 SFP, 4 Gig SFP, 2 QSFP+ dedicated stack ports AC power supply
  • S5720-32X-EI-AC 24 Ethernet 10/100/1000 ports, 4 100/1000 SFP, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
  • S5720-32X-EI-24S-AC 24 Gig SFP, 4 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
  • S5720-32X-EI-24S-DC 24 Gig SFP, 4 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
  • S5720-36C-EI-28S-AC 28 Gig SFP, 4 of which are dual-purpose 10/100/1000, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies
  • S5720-36C-EI-28S-DC 28 Gig SFP, 4 of which are dual-purpose 10/100/1000, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies
  • S5720-36C-EI-AC 28 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC power module equipped by default
  • S5720-36C-PWR-EI-AC 28 Ethernet 10/100/1000 PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC power module equipped by default
  • S5720-36PC-EI-AC 28 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4 Gig SFP Double hot swappable AC or DC power supplies, one AC power module equipped by default
  • S5720-50X-EI-AC 46 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
  • S5720-50X-EI-DC 46 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
  • S5720-50X-EI-46S-AC 46 Gig SFP, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
  • S5720-50X-EI-46S-DC 46 Gig SFP, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
  • S5720-52X-EI-AC 48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC power supply
  • S5720-52P-EI-AC 48 Ethernet 10/100/1000 ports, 4 Gig SFP, 2 QSFP+ dedicated stack ports AC power supply
  • S5720-56C-EI-48S-AC 48 Gig SFP, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
  • S5720-56C-EI-48S-DC 48 Gig SFP, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
  • S5720-56C-EI-AC 48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
  • S5720-56C-EI-DC 48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
  • S5720-56C-PWR-EI-AC 48 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
  • S5720-56C-PWR-EI-AC1 48 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
  • S5720-56C-PWR-EI-DC 48 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
  • S5720-56PC-EI-AC 48 Ethernet 10/100/1000 ports, 4 Gig SFP Double hot swappable AC or DC power supplies, one AC power module equipped by default
