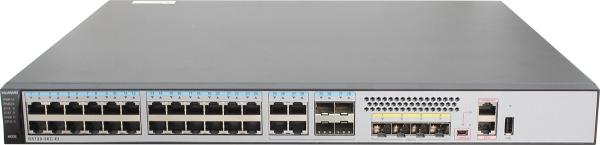

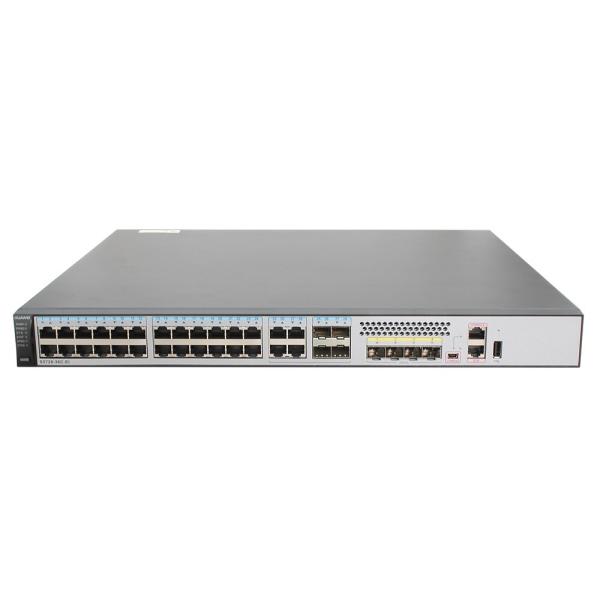

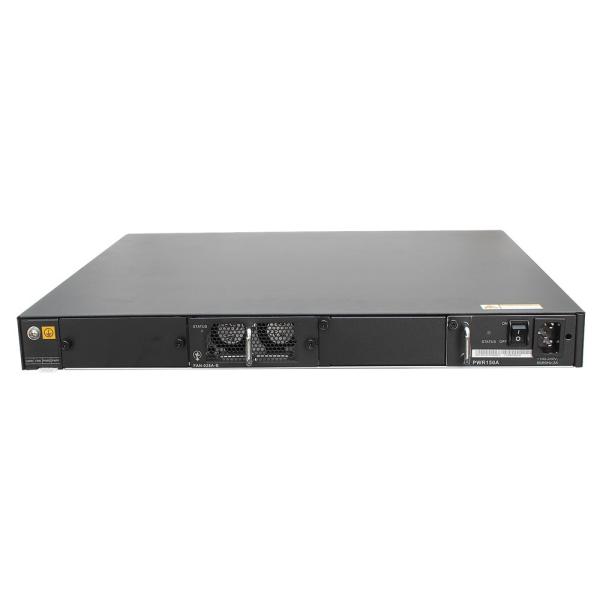

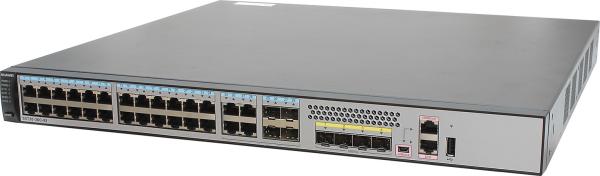

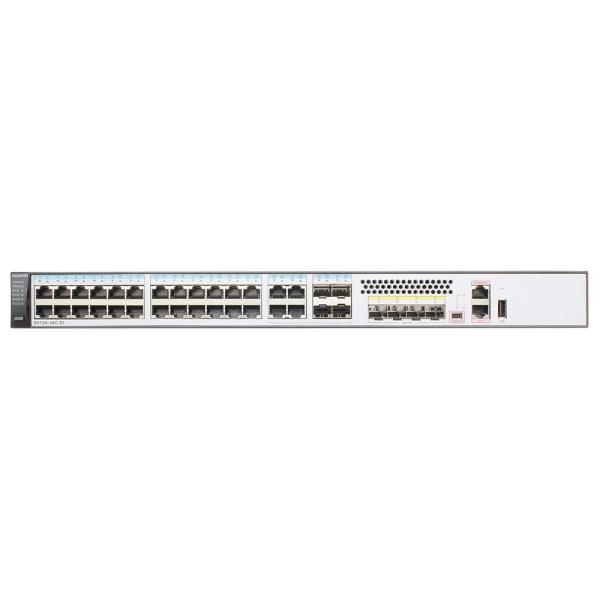

Used 5720-EI Series 28-Port 10/100/1000 Network Switch S5720-36C-EI-AC for Rack Mount
Used 5720-EI Series 28-Port 10/100/1000 Network Switch S5720-36C-EI-AC for Rack Mount
Used 5720-EI Series 28-Port 10/100/1000 Network Switch S5720-36C-EI-AC for Rack Mount
Used 5720-EI Series 28-Port 10/100/1000 Network Switch S5720-36C-EI-AC for Rack Mount
Used 5720-EI Series 28-Port 10/100/1000 Network Switch S5720-36C-EI-AC for Rack Mount
Used 5720-EI Series 28-Port 10/100/1000 Network Switch S5720-36C-EI-AC for Rack Mount
Used 5720-EI Series 28-Port 10/100/1000 Network Switch S5720-36C-EI-AC for Rack Mount
Used 5720-EI Series 28-Port 10/100/1000 Network Switch S5720-36C-EI-AC for Rack Mount
Used 5720-EI Series 28-Port 10/100/1000 Network Switch S5720-36C-EI-AC for Rack Mount
Used 5720-EI Series 28-Port 10/100/1000 Network Switch S5720-36C-EI-AC for Rack Mount
Used 5720-EI Series 28-Port 10/100/1000 Network Switch S5720-36C-EI-AC for Rack Mount
Used 5720-EI Series 28-Port 10/100/1000 Network Switch S5720-36C-EI-AC for Rack Mount
Specifications
Brand Name :
H3C
Model Number :
H3C Switch S5720-36C-EI-AC
Place of Origin :
Fujian, China
Price :
$1,000.00/pieces 1-9 pieces
MOQ :
1 unit
Private Mold :
NO
Products Status :
Stock, Used, Stock
Ports :
≥ 48
Transmission Rate :
10/100/1000Mbps
Function :
LACP, SNMP
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
56 Gb/s
Product Name :
H3C Switch S5720-36C-EI-AC
Type :
Rack
Description
Used 5720-EI Series 28-Port 10/100/1000 Network Switch S5720-36C-EI-AC for Rack Mount

Huawei S5720-36C-EI-AC Switch is an Enhanced Gigabit Switch with 28 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4 10 Gig SFP+ and Double hot swappable AC or DC power supplies, one AC power module equipped by default

Huawei S5720-36C-EI-AC Switch Product Overview

Huawei S5720-36C-EI-AC provides flexible GE access ports (including optical, electrical, and combo ports) and 10GE uplink ports. Built on next-generation high-performance processors and Huawei Versatile Routing Platform (VRP), S5720-EI provides larger table sizes and higher hardware processing capabilities than equivalent switches. Besides, it provides comprehensive service processing capabilities, enhanced security control, and mature IPv6 features. in addition, With enhanced network admission control (NAC) functions, S5720-36C-EI-AC supports 802.1x authentication, MAC address authentication, Portal authentication, and hybrid authentication, and can dynamically delivery user policies such as VLANs, QoS policies, and access control lists (ACLs). It also supports user management based on user groups

Huawei S5720-36C-EI-AC Switch Product Specifications

Item Description
Model S5720-36C-EI-AC
Port 28 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4 Gig SFP
Part number 2359562
Memory (RAM) 2 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 80.05 years when no card is configured; 73.65 years when a 2-port 10GE SFP+ interface card is configured; 71.58 years when a 2-port 10GE RJ45 interface card is configured; 71.74 years when a stack card is configured
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Service ports on front panel: ±6 kV in common mode
Ports on the 2-port 10GE RJ45 rear interface card: ±2 kV in common mode
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Weight (with packaging) 9.8 kg (21.61 lb)
Stack ports Ports on the 2-port 10GE SFP+ rear interface card
Ports on the 2-port 10GE RJ45 rear interface card
Ports on the 2-port QSFP+ rear stack card
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
-48 V DC to -60 V DC
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
-36 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 75.8 W
Typical power consumption (30% of traffic load) 39.5 W (without subcard)
Tested according to ATIS standard 47.28 W (with 2*10G optical subcards)
EEE enabled 52.17 W (2*QSFP+ stack cards)
No PoE power consumption 55.14 W (with 2*10G electrical subcards)
Operating temperature 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 51.2 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude AC power modules configured: 0-5000 m (0-16404 ft.)
DC power modules configured: 0-2000 m (0-6562 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.)

Huawei S5720-36C-EI-AC Switch Product Features

  • S5720-EI models with power sockets on the front panel can be installed in a 300 mm deep cabinet and maintained from the front panel. This simplifies equipment O&M and allows more flexible cabinet deployment. The small-sized cabinets can be placed against a wall or back to back to save space in the equipment room.
  • S5720-EI allows management personnel to remotely switch on the SYS indicator on the front panel. After configuration commands are used, the SYS indicator quickly blinks within a certain period, helping the management personnel locate the device in the equipment room quickly and efficiently.
  • S5720-EI supports Smart Link and Virtual Router Redundancy Protocol (VRRP), which implement backup of uplinks. One S5720-EI switch can connect to multiple aggregation switches through multiple links, significantly improving reliability of access devices
  • S5720-EI provides excellent QoS capabilities and supports queue scheduling and congestion control algorithms. Additionally, it adopts innovative priority queuing and multi-level scheduling mechanisms to implement fine-grained scheduling of data flows, meeting service quality requirements of different user terminals and services

Huawei S5720-36C-EI-AC Switch and More S5720-EI Models

  • S5720-32P-EI-AC 24 Ethernet 10/100/1000 ports, 4 100/1000 SFP, 4 Gig SFP, 2 QSFP+ dedicated stack ports AC power supply
  • S5720-32X-EI-AC 24 Ethernet 10/100/1000 ports, 4 100/1000 SFP, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
  • S5720-32X-EI-24S-AC 24 Gig SFP, 4 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
  • S5720-32X-EI-24S-DC 24 Gig SFP, 4 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
  • S5720-36C-EI-28S-AC 28 Gig SFP, 4 of which are dual-purpose 10/100/1000, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies
  • S5720-36C-EI-28S-DC 28 Gig SFP, 4 of which are dual-purpose 10/100/1000, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies
  • S5720-36C-EI-AC 28 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC power module equipped by default
  • S5720-36C-PWR-EI-AC 28 Ethernet 10/100/1000 PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC power module equipped by default
  • S5720-36PC-EI-AC 28 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4 Gig SFP Double hot swappable AC or DC power supplies, one AC power module equipped by default
  • S5720-50X-EI-AC 46 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
  • S5720-50X-EI-DC 46 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
  • S5720-50X-EI-46S-AC 46 Gig SFP, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
  • S5720-50X-EI-46S-DC 46 Gig SFP, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC or DC power supply
  • S5720-52X-EI-AC 48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, 2 QSFP+ dedicated stack ports AC power supply
  • S5720-52P-EI-AC 48 Ethernet 10/100/1000 ports, 4 Gig SFP, 2 QSFP+ dedicated stack ports AC power supply
  • S5720-56C-EI-48S-AC 48 Gig SFP, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
  • S5720-56C-EI-48S-DC 48 Gig SFP, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
  • S5720-56C-EI-AC 48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
  • S5720-56C-EI-DC 48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
  • S5720-56C-PWR-EI-AC 48 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
  • S5720-56C-PWR-EI-AC1 48 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
  • S5720-56C-PWR-EI-DC 48 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
  • S5720-56PC-EI-AC 48 Ethernet 10/100/1000 ports, 4 Gig SFP Double hot swappable AC or DC power supplies, one AC power module equipped by default
