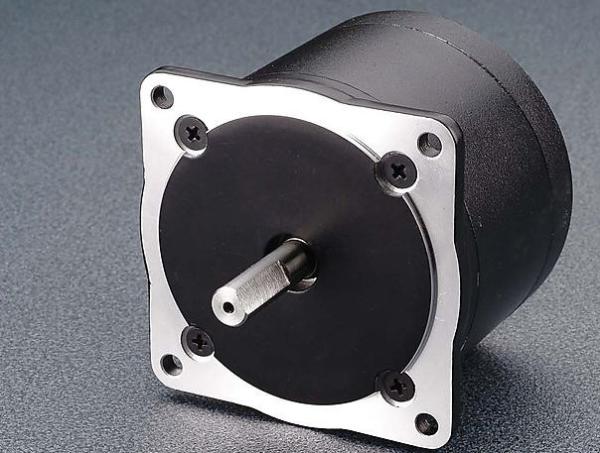

1.8 Degree Size 86mm 2-Phase Round High Torque Hybrid Stepper Motor
1.8 Degree Size 86mm 2-Phase Round High Torque Hybrid Stepper Motor
Specifications
Place of Origin :
CHANGZHOU
Brand Name :
DK
Certification :
CE, ROHS, CCC.
MOQ :
5PCS
Price :
CONFIRMED
Packaging Details :
SUIT EXPORT
Delivery Time :
CONFIRMED
Payment Terms :
T/T inadvance
Supply Ability :
500pcs/month
Description

1.8 Degree Size 86mm 2-Phase Round High Torque Hybrid Stepper Motor

Features:

High Precision, large torque,small inertia, low noise

Application:

Advertising industry: Engraving machine, Printing machine

Textile industry: Flating knitting machine, Circular knitting machine, Computer jacquard hosiery machine

Item

Specifications
Step Angle
1.8.
Step Angle Accuracy
±5% (full step, no load)
Resistance Accuracy
±10% (20℃)
Inductance Accuracy
±20% (1KHz)
Temperature Rise
80.C Max.(rated current,2 phase on)
Ambient Temperature
-20.C~+50.C
Insulation Resistance
100MΩMin. ,500VDC
Dielectric Strength
820VAC , 1s , 3mA
Shaft Radial Play
0.02Max. (450 g-load)
Shaft Axial Play
0.08Max. (450 g-load)
Max. radial force
220N (20mm from the flange)
Max. axial force
60N

Model No.
Rated
Voltage
Current
/Phase
Resistance
/Phase
Inductance
/Phase
Holding
Torque
# of Leads
Rotor
Inertia
Weight
Detent
Torque
Length
V
A
Ω
mH
Kg.cm
g-cm2
kg
kg-cm
mm
DK86ST67-2808AH
3.64
2.8
1.3
5.1
28
8
660
1.6
1.2
67
DK86ST94-2808AH
4.76
2.8
1.7
7.7
48
8
1200
2.4
1.8
94
DK86ST125-3508AH
4.97
3.5
1.42
7.9
76
8
1800
3.6
2.3
125

♦ All above items are standard products, we can design as customer's request.
