2-Phase 23HM(0.9º) hybrid stepper motor
2-Phase 23HM(0.9º) hybrid stepper motor
Specifications
Place of Origin :
CHANGZHOU
Brand Name :
DK
Certification :
CE, ROHS, CCC.
Model Number :
23HM Series
MOQ :
5PCS
Price :
CONFIRMED
Packaging Details :
SUIT EXPORT
Delivery Time :
CONFIRMED
Payment Terms :
T/T inadvance
Supply Ability :
500pcs/month
Description
hybrid stepper motor
Product Model:2-Phase 23HM(0.9º)

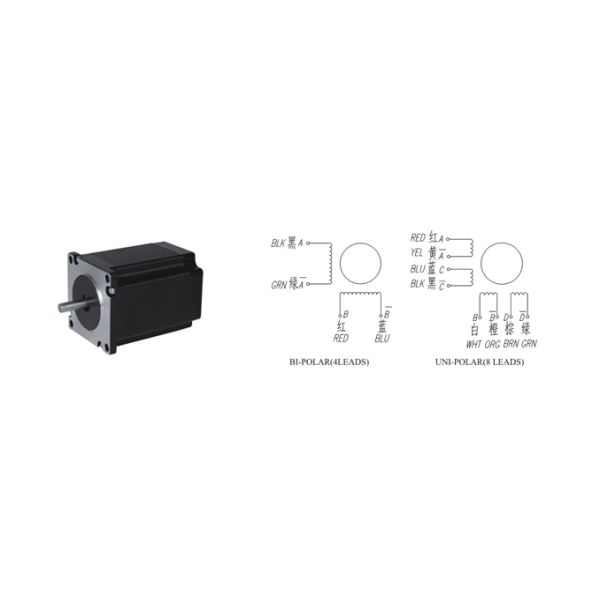

Wiring Diagram:

2-Phase 23HM(0.9º) hybrid stepper motor

Electrical Specifications:

Series Model Step Angle (°) Motor Length (mm) Rated Current (A) Phase Resistance (Ω) Phase Inductance (mH) Holding Torque (N.m Min) Detent Torque (N.cm Max) Rotor Inertia (g.cm²) Lead Wire (No.) Motor Weight (g)
23HM0405 0.9 41 0.62 12 28 0.32 2.5 150 4 470
23HM0408 0.9 41 2.0 1.2 3.0 0.32 2.5 150 4 470
23HM4425 0.9 45 2.5 1.0 3.0 0.62 2.8 190 4 520
23HM5406 0.9 51 0.62 13 34 0.7 3.0 230 4 590
23HM5425 0.9 51 2.5 1.2 3.8 0.7 3.0 230 4 590
23HM6403 0.9 56 2.5 1.3 5.2 1.0 3.5 280 4 680
23HM6430 0.9 56 3.0 0.8 2.8 1.0 3.5 280 4 680
23HM6404 0.9 56 4.2 0.4 1.5 1.0 3.5 280 4 680
23HM7401 0.9 64 1.0 7.5 28 1.1 5.0 380 4 850
23HM7425 0.9 64 2.5 1.5 5.8 1.1 5.0 380 4 850
23HM7430 0.9 64 3.0 0.8 3.0 1.1 5.0 380 4 850
23HM7404 0.9 64 4.2 0.55 1.5 1.14 5.0 380 4 850
23HM8603 0.9 76 1.5 4.5 10 1.25 6.0 440 6 1050
23HM8425 0.9 76 2.5 1.8 8.2 1.2 6.0 440 4 1050
23HM8430 0.9 76 3.0 1.0 4.3 1.5 6.0 440 4 1050
23HM8404 0.9 76 4.2 0.65 2.2 1.5 6.0 440 4 1050


*Note: We can manufacture products according to customer’s requirements

Dimensions:unit=mm Motor Length:

2-Phase 23HM(0.9º) hybrid stepper motor
Series Model Motor Length
23HM0XXX 41 mm
23HM4XXX 45 mm
23HM5XXX 51 mm
23HM6XXX 56 mm
23HM7XXX 64 mm
23HM8XXX 76 mm
