Specifications
Model NO. :
NEXUS686
Usage :
Roof, Wall
Transmission Method :
Electric
Product Name :
Ibr Roof Sheet Roll Forming Making Machine
Raw Material :
PPGI Sheet
Thickness Range :
0.3-0.8mm
Machine Power :
4kw+3kw
Machine Weight :
About 5 Tons
Afer-Sales Service :
Engineer Is Availble to Overseas
Speed :
15-25m/Min
Trademark :
NEXUS MACHINERY
Transport Package :
Plastic Film & Steel Wire Fixed
Specification :
8500mm*1500mm*1500mm(L*W*H)
Origin :
China
HS Code :
8455221000
Package size per unit product :
880.00cm * 150.00cm * 180.00cm
Gross weight per unit product :
6000.000kg
Trade Guarantee :
From payment to delivery, we guarantee your trading security without charges.
Shipping Cost :
Freight Cost Calculator
Port :
Tianjin, China
Supply Ability :
30 Sets / Months
Payment Terms :
L/C, T/T, D/P, Western Union, Paypal, Money Gram
After-sales Service :
Provide Overseas Service
Warranty :
12 Months
Tile Type :
Colored Steel
Certification :
CE, ISO
Condition :
New
Customized :
Customized
Description

Product Description

Customer Question & Answer
Ask something for more details

Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine
A bold, square-fluted profile able to effectively cover widths of 686mm, Inverted Box Rib (more commonly known as IBR) is an attractive, practical and highly-durable side cladding and roofing option in residential, commercial and industrial build projects.
Apart from superior draining capabilities and an ideal weight to load/span ratio, there are more than a few reasons why IBR is a South African building industry favourite: IBR can be factory cranked, curved and bull-nosed to exact specifications, making it a malleable material across builds big and small.
IBR roof sheeting can be used in small scale residential, and medium to large commercial and industrial building projects, for everything from garages, carports, sheds and Wendy Houses, to low cost housing, offices, factories, and warehouses.

1. Processing flow diagram of machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table

2. Profile Drawings for Reference:
Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine
3. Technical parameters for Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine :
Article No.Item NameSpecification
1Width of feeding material1000 mm coil sheet
2 Thickness of feeding material0.3-0.8 mm coil sheet
3Roller station13 stations
4Shaft Diameter 75 mm
5Productivity8-15 m/min
6Rollers' material45# steel with 0.05 mm chrome
7 Shaft material 45# steel with 0.05 mm chrome
8Weight6.5 tons
9length5.5 m
10Voltage380V 50Hz 3phases
11Control PLC
12Decoiler5 tons
13Motor5.5 kw
14Driving wayChain transmission
15Chain size1 inch
16Cutting systemHydraulic cutter

4. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

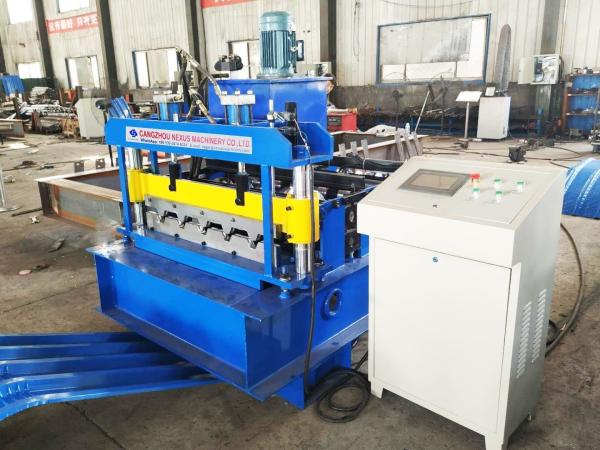

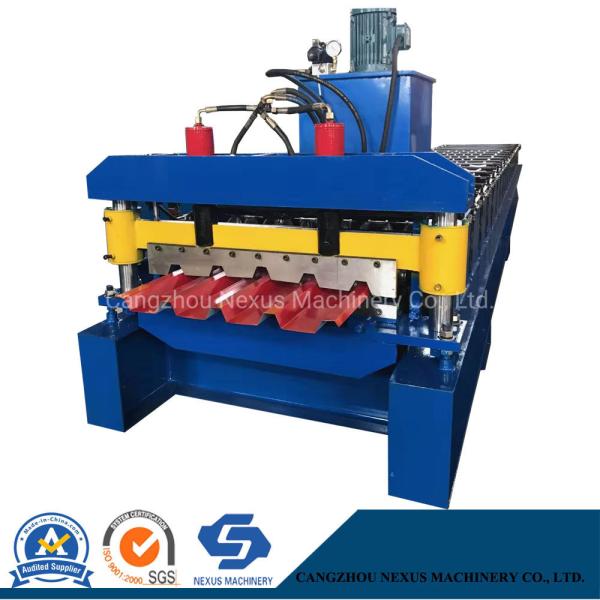

5. Photos of Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine for Reference:
Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine
Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine
Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine
Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine
Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine
ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
