C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes
Specifications
Model NO. :
NM1153
Automatic Grade :
Automatic
Product Name :
C Steel Shape Purline Rollforming Machine
Coil Material Thickness :
1--3mm
Processing Material :
Galvanized Steel
Roller Material :
Cr12MOV
Roller Station :
12-18 Stations
Driven :
Chain Transmission
Forming Speed :
10-15m/Min
Punching Type :
Hydraulic Punching
Cutting Type :
Hydraulic Post-Cutting
Operation Type :
Touching Screen
Trademark :
Nexus Machinery
Transport Package :
Plastic Film
Specification :
80-300
Origin :
Cangzhou
HS Code :
8455221000
Package size per unit product :
850.00cm * 120.00cm * 120.00cm
Gross weight per unit product :
5000.000kg
Trade Guarantee :
From payment to delivery, we guarantee your trading security without charges.
Shipping Cost :
Freight Cost Calculator
Port :
Tianjin, China
Supply Ability :
10
Payment Terms :
L/C, T/T, Western Union, Money Gram
After-sales Service :
Provide Overseas Service
Warranty :
2 Years
Certification :
CE, ISO9001
Customized :
Customized
Condition :
New
Control Type :
Electric
Description

Product Description

Customer Question & Answer
Ask something for more details

C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes is designed and produced in NEXUS company. We are roll forming machine manufacturer. We have rich experiences in purlin field. We have engineer and professional to produce China factory steel frame and purlin making machines c z purlin roll forming machine.

Technical parameters :

o :

Decoiler System Main Parameter :

1

Loading capacity

1.5-3.0T

2

Uncoiling width

300-1000mm

3

Inner diameter

450-550mm

No :

Roll Forming System Main Parameter :

1

Length of the main part

about 3000*1000*400-8800*1500*1200

2

Weight of main part

3-8 tons

3

Voltage

380V/50HZ3Phase (as customer's request)

4

Roller fixer

guide column

5

Frame

steel plate welded/ Memorial arch frame type

6

Frame thickness

25mm

7

Drive mode

gear

8

Material of rollers

GCr15MoV

9

Material of shafts

45# steel with tempering

10

Diameter of shafts

φ40mm

11

Number of rollers

10-16 rollers

12

Main power

3-11kw

No :

Cutting System Main Parameter :

1

Material of blades

Gcr12MoV quenched

2

Power supply

hydraulic power

3

Frame

Pillar style with rack & pinion system

4

Stroke switch

non-contact photoelectric switch

5

Hydraulic motor Power

3-5kw

6

Hydraulic oil:

46#

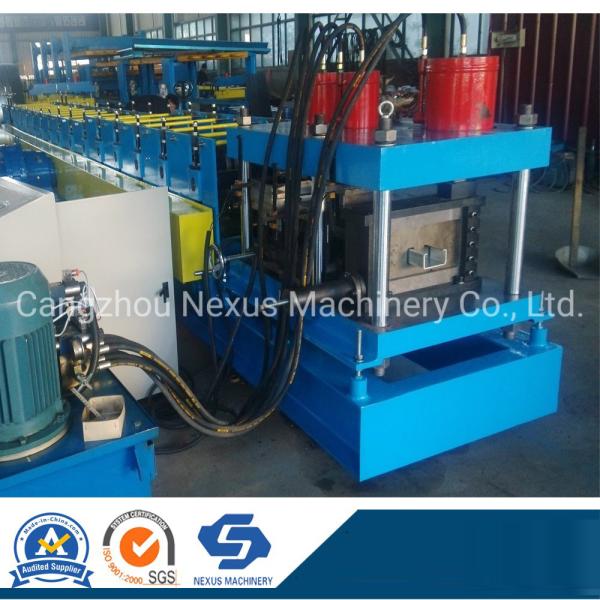

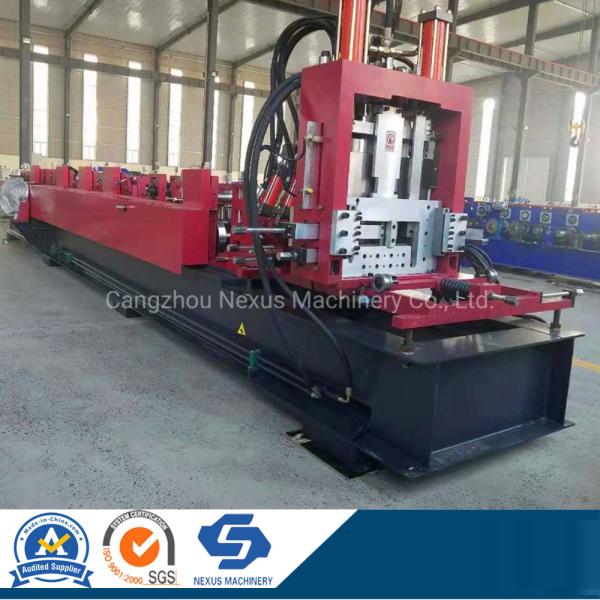

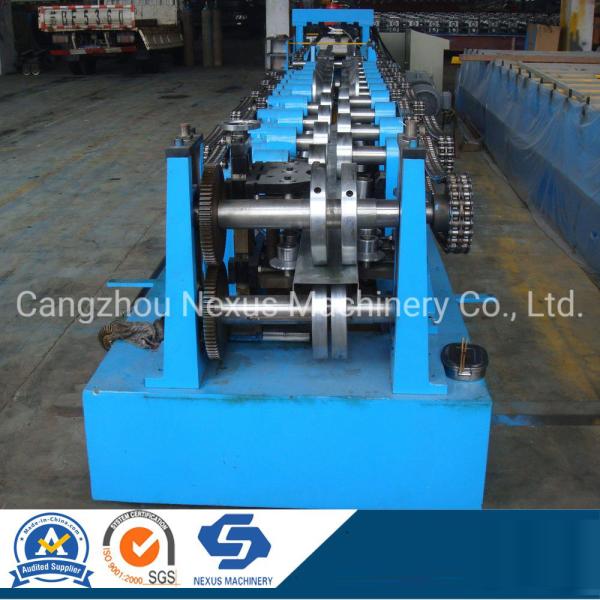

Photo for C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes
C Steel Shape Purline Rollforming Machine with Holes

Exhibitions Photos:
C Steel Shape Purline Rollforming Machine with Holes

ABOUT US:
CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich panel line all kinds of roll forming machines, such as glazed tile roll forming machine, roof/wall panel roll forming machine, double layer roll forming machine, Full-Automatic C and Z Purlin Roll Forming Machine, floor deck roll forming machine, highway guardrail machine, dust shield machine, ridge cap machine, roll shutter door machine, uncoiling & leveling & slitting & recoiling line, all kinds of decoilers and stackers, and many other related equipments like shear, punch, slitter, leveler, crimping curving, bending and so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! !We will 24 hourse services for you ,please don't hesitate to contact us when you need.

Company Certificates:
C Steel Shape Purline Rollforming Machine with Holes

FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
