Specifications
Product Name :
C Z Purlin Shape Frame Purling Machine
Coil Material Thickness :
1--3mm
Processing Material :
Galvanized Steel
Roller Material :
Cr12MOV
Roller Station :
12-18 Stations
Driven :
Chain Transmission
Forming Speed :
10-15m/Min
Punching Type :
Hydraulic Punching
Cutting Type :
Hydraulic Post-Cutting
Operation Type :
Touching Screen
Trademark :
Nexus Machinery
Transport Package :
Plastic Film
Specification :
80-300
Origin :
Cangzhou
HS Code :
8455221000
Port :
Tianjin, China
Supply Ability :
10
Payment Terms :
L/C, T/T, Western Union, Money Gram
Warranty :
1 Year
Certification :
CE, ISO9001
Customized :
Customized
Condition :
New
Control Type :
Electric
Automatic Grade :
Automatic
Description

Product Description

Customer Question & Answer
Ask something for more details

C Z Purlin Shape Frame Roof Steel Purling Making Machine Automatic C Purling Roll Forming Machine

Equipment components of C Z Purlin Shape Frame Roof Steel Purling Making Machine Automatic C Purling Roll Forming Machine:

Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting

Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.


C Z Purlin Shape Frame Roof Steel Purling Making Machine Automatic C Purling Roll Forming Machine

Technical parameters :

1.

Configurations

Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.

2.

Control System

PLC Inverter Encoder Touch Screen

3.

Main Frame

400mm H-Beam

4.

Total Power

22 kw

5.

Power Supply

380V, 3-Phase,50Hz

6.

Forming Speed

12-24m/min

7.

Roll Station

18 stands

8.

Roller Diameter

80mm

9.

Effective Width

80-300mm

10.

Feeding Thickness

1.5-3.0mm

11.

Backboard Thickness

20mm

12.

Cutter Standard

GCr12

13.

Roller Standard

Gcr15#

14.

Overall Size

About 8500×1000×1400mm

15.

Total Weight

About 10T

16.

Custom

According to customer's requirements

NOTE: All technical parameters can be changed according to user s need, and only as a reference.

2.C Z Purlin Roll Forming Machine Components specification

(1) Manual Uncoiler

Max.Capacity:5T

(2)Pre- Cutting Device& Pre-Punching Device

It adopts hydraulic motor drive and PLC computer-controlled to fix length of die cutting.

Cutting length tolerance:±2mm

Material:GCr12 with quenched treatment 60-62°C

(3)Hydraulic System

Match equipment: Electro motor, a set of hydraulic tank, a set of hydraulic oil pump, and electromagnetic valve.

Power: 22 KW

(4)Control System

It adopts PLC control system, Color Touch Screen; the target length can be adjusted by it.

Computed mode: automatic or manual

(5)Encoder

The counter gauges length, and modulates pulses.

(6)Simple Stack

It is used for loading the formed plate.

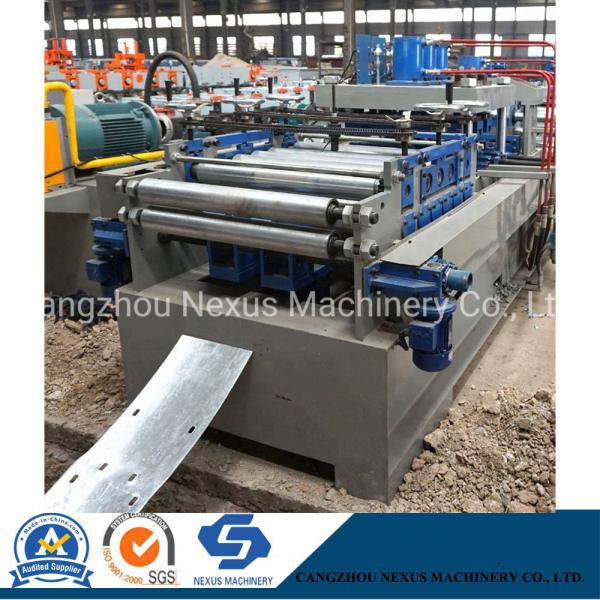

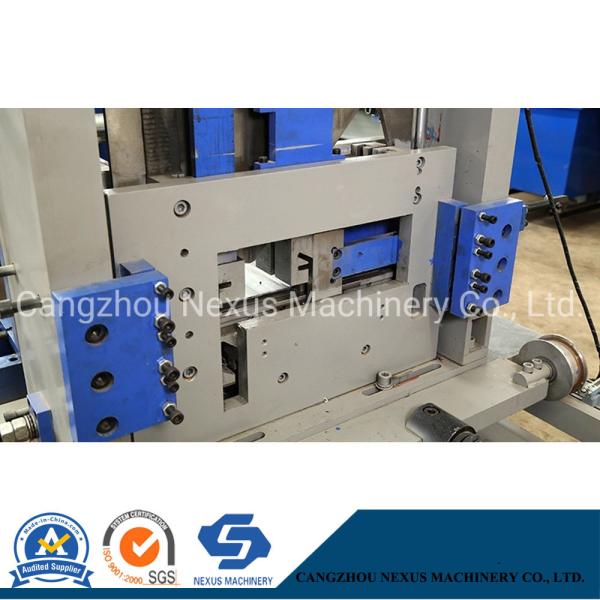

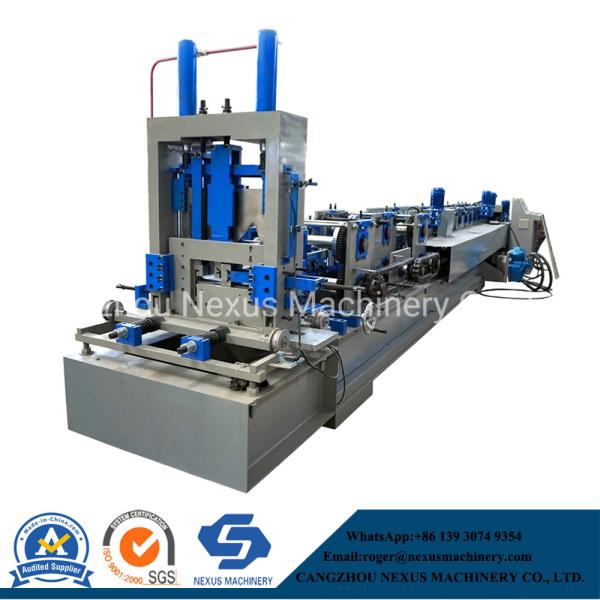

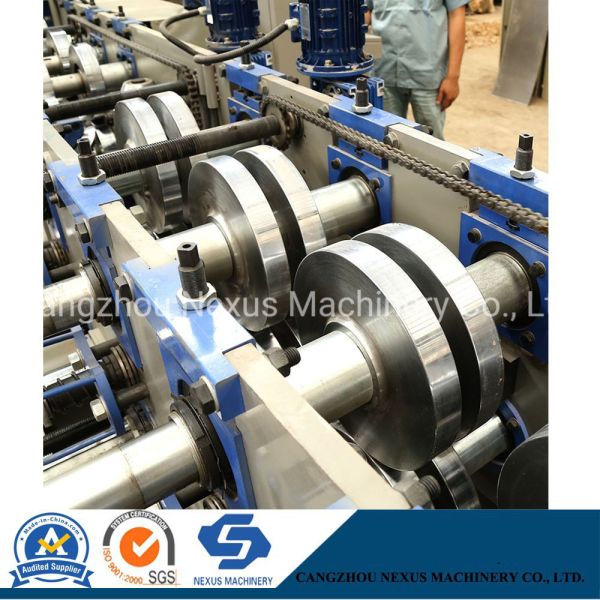

Photo for C Z Purlin Shape Frame Roof Steel Purling Making Machine Automatic C Purling Roll Forming Machine:

C Z Purlin Shape Frame Roof Steel Purling Making Machine Automatic C Purling Roll Forming Machine
C Z Purlin Shape Frame Roof Steel Purling Making Machine Automatic C Purling Roll Forming Machine
C Z Purlin Shape Frame Roof Steel Purling Making Machine Automatic C Purling Roll Forming Machine
C Z Purlin Shape Frame Roof Steel Purling Making Machine Automatic C Purling Roll Forming Machine



Exhibitions Photos:
C Z Purlin Shape Frame Roof Steel Purling Making Machine Automatic C Purling Roll Forming Machine

ABOUT US:
CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich panel line all kinds of roll forming machines, such as glazed tile roll forming machine, roof/wall panel roll forming machine, double layer roll forming machine, Full-Automatic C and Z Purlin Roll Forming Machine, floor deck roll forming machine, highway guardrail machine, dust shield machine, ridge cap machine, roll shutter door machine, uncoiling & leveling & slitting & recoiling line, all kinds of decoilers and stackers, and many other related equipments like shear, punch, slitter, leveler, crimping curving, bending and so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! !We will 24 hourse services for you ,please don't hesitate to contact us when you need.


FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
