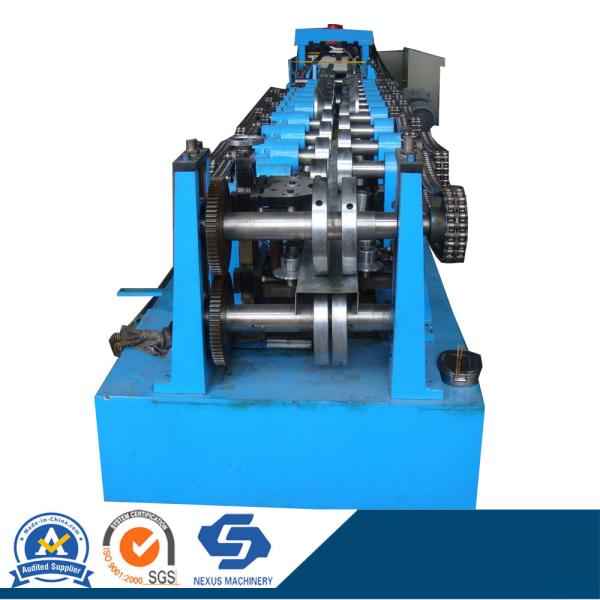

Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine
Specifications
Model NO. :
NM500
Product Name :
C and Z Steel Purline Roll Forming Machine
Coil Material Thickness :
1--3mm
Processing Material :
Galvanized Steel
Roller Material :
Cr12MOV
Roller Station :
12-18 Stations
Driven :
Chain Transmission
Forming Speed :
10-15m/Min
Punching Type :
Hydraulic Punching
Cutting Type :
Hydraulic Post-Cutting
Operation Type :
Touching Screen
Trademark :
Nexus Machinery
Transport Package :
Plastic Film
Specification :
80-300
Origin :
Cangzhou
HS Code :
8455221000
Port :
Tianjin, China
Supply Ability :
10
Payment Terms :
L/C, T/T, Western Union, Money Gram
Warranty :
1 Year
Certification :
CE, ISO9001
Customized :
Customized
Condition :
New
Control Type :
Electric
Automatic Grade :
Automatic
Description

Product Description

Customer Question & Answer
Ask something for more details

Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ changeable Purlin Machine

CZ-shaped purlin is good in bending resistance, straightness, and it can cut, punch automatically, it is very easy and convenient to use. It can be used as bearing structure in big and medium sized building, such as factories, warehouses, garages, hangars, gyms, exhibitions, theater and so on.

Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine

Technical parameters :

Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ changeable Purlin Machine
No.
Item
Main performance parameters
1.
Processing material
1.5-3.0mm
2.
Processing thickness
GI Steel
3.
Profile sizes
C80-300mm Z120-300mm
4.
Material of rollers
Cr12
5.
Material of shaft
45#
6.
Diameter of shaft
80mm
7.
Roller driven
Decelerating Motor+Chain Transmission
8.
Cutting model
Hydraulic cutting
9.
Total power
2+4kw
10.
Voltage
380V 50HZ or at buyer's request
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine

Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine

ABOUT US:
CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich panel line all kinds of roll forming machines, such as glazed tile roll forming machine, roof/wall panel roll forming machine, double layer roll forming machine, Full-Automatic C and Z Purlin Roll Forming Machine, floor deck roll forming machine, highway guardrail machine, dust shield machine, ridge cap machine, roll shutter door machine, uncoiling & leveling & slitting & recoiling line, all kinds of decoilers and stackers, and many other related equipments like shear, punch, slitter, leveler, crimping curving, bending and so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! !We will 24 hourse services for you ,please don't hesitate to contact us when you need.

Company Certificates:
Full-Automatic C and Z Steel Purline Roll Forming Machine/CZ Changeable Purlin Machine

FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
