Nickel alloy flanges are specialized pipe fittings designed for use in demanding industrial applications where high corrosion resistance, temperature extremes, and strength are critical. These flanges are made from nickel-based alloys, which are known for their exceptional performance in harsh environments.

Composition:

• Nickel Content: Nickel alloy flanges contain a high percentage of nickel, which typically ranges from 30% to 80% depending on the specific alloy. The nickel content provides excellent corrosion resistance and stability at high temperatures.
• Other Elements: In addition to nickel, these alloys often include chromium, iron, molybdenum, copper, and other elements that enhance the material’s properties. For example, alloys like Inconel, Monel, and Hastelloy are known for their unique combinations of strength, resistance to corrosion, and ability to withstand high temperatures.

Properties:

• Corrosion Resistance: Nickel alloy flanges are highly resistant to corrosion from a wide range of chemicals, including acids, alkalis, and salts, making them suitable for use in chemical processing, marine environments, and oil and gas extraction.
• High Temperature Strength: These flanges maintain their structural integrity and mechanical properties at high temperatures, which is crucial for applications in the aerospace, power generation, and refining industries.
• Mechanical Strength: Nickel alloys offer good mechanical strength, which allows the flanges to withstand high pressures and mechanical stress without deforming.

Design and Construction:

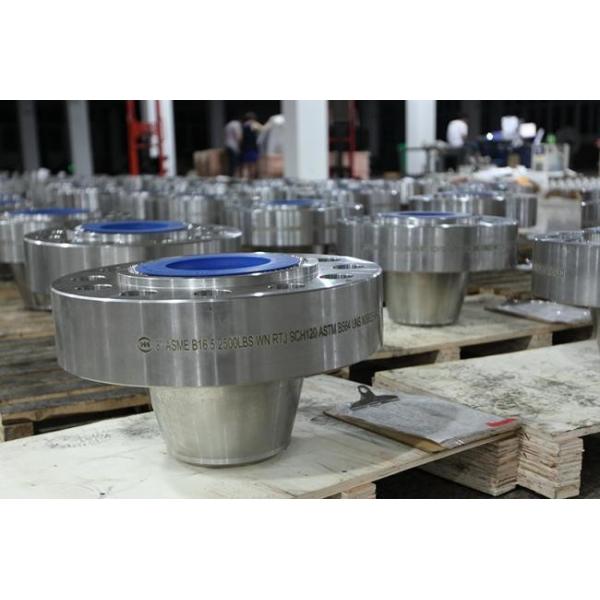

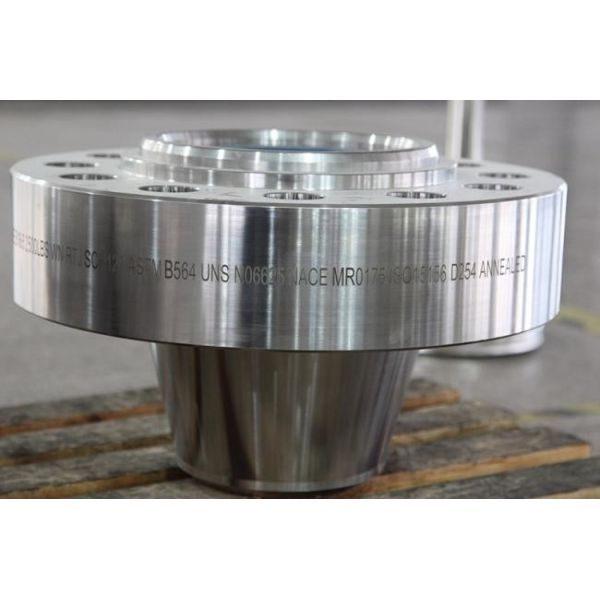

• Shape: Nickel alloy flanges are typically available in standard shapes such as weld neck, slip-on, blind, socket weld, and lap joint, similar to other metal flanges.
• Dimensions: They are manufactured to meet industry standards for flange dimensions, such as ASME B16.5, ASME B16.47, MSS SP-44, and DIN EN 1092-1, ensuring compatibility with other pipeline components.
• Bolt Holes: These flanges have bolt holes for securing them to other flanges or equipment using bolts, nuts, and gaskets.

Applications:

• Chemical Processing: Nickel alloy flanges are used in chemical plants where corrosive media and high temperatures are common.
• Oil and Gas: They are used in offshore platforms, refineries, and other oil and gas facilities due to their resistance to sour gas and hydrogen sulfide.
• Aerospace: Nickel alloy flanges are used in aircraft engines and other high-performance aerospace applications.
• Power Generation: In power plants, particularly nuclear reactors, these flanges can withstand the extreme conditions and radiation exposure.
• Marine Industry: They are used in shipbuilding and marine engineering for their resistance to saltwater and other corrosive elements.

Advantages:

• Durability: Nickel alloy flanges have a long service life due to their resistance to corrosion and ability to perform under extreme conditions.
• Safety: They contribute to the overall safety of industrial processes by reducing the risk of leaks and failures in critical systems.
• Versatility: Available in various alloys and grades, nickel alloy flanges can be tailored to meet the specific requirements of different industrial applications.

In conclusion, nickel alloy flanges are essential components in industries where standard materials would not suffice due to the challenging operating conditions. Their unique properties make them a reliable choice for ensuring the integrity and efficiency of piping systems in harsh environments.
