Heat Treatment Nickel Alloy Forged Metal Rings Incoloy 825/925/800 For Nuclear Industrial
Heat Treatment Nickel Alloy Forged Metal Rings Incoloy 825/925/800 For Nuclear Industrial
Heat Treatment Nickel Alloy Forged Metal Rings Incoloy 825/925/800 For Nuclear Industrial
Heat Treatment Nickel Alloy Forged Metal Rings Incoloy 825/925/800 For Nuclear Industrial
Specifications
Brand Name :
DINGSCO
Model Number :
According to customers' requirements
Certification :
ISO 9001:2015,PED 2014/68/EU,API 6A,API-20B,TSG,NORSOK
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
(Sample order) 7 days
Packaging Details :
According to customers' requests
Product Name :
Heat Treatment Nickel Alloy
Material :
Nickel Alloy
Size :
Customized
Grade :
Inconel,Monel,Incoloy,Hastelloy,Duplex
Shape :
Ring
Application :
Oil & Gas,Aerospace, Chemical Processing, Petrochemical, Power Generation,
Description

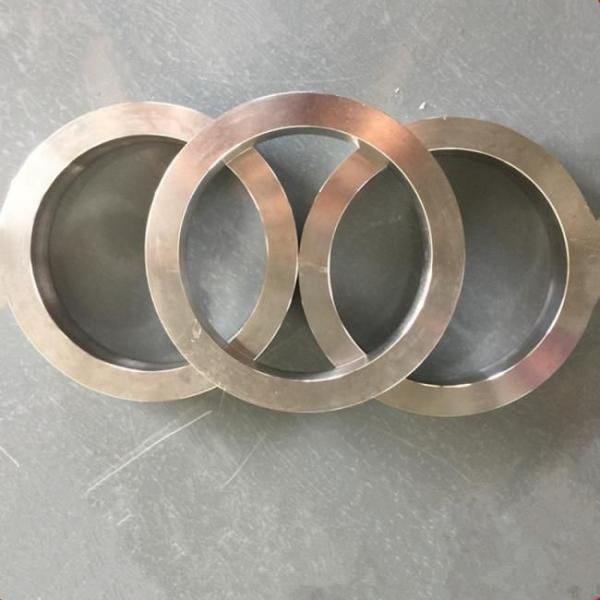

Heat Treatment Nickel Alloy Forged Ring Incoloy 825/925/800 in Nuclear Industrial

Incoloy 825, 925, and 800 are part of the family of nickel-iron-chromium superalloys known for their high resistance to corrosion and high-temperature environments. The following are specific details regarding these alloy rings:
  1. Incoloy 825: This alloy is particularly resistant to sulfuric and phosphoric acids and is often used in chemical processing, oil and gas recovery, acid production, and pickling operations.
  2. Incoloy 925: With the addition of titanium and aluminum, this alloy has enhanced strength and hardness. It is primarily used in high-strength piping systems, pumps, and valves in the oil and gas industry.
  3. Incoloy 800: Known for its resistance to oxidation and carburization at high temperatures, this is one of the most versatile Incoloy alloys. It is used in a variety of applications including heat treatment furnaces and chemical and petrochemical processing.
Each ring is forged using a process where the metal is heated before it's shaped to the desired dimensions and specifications. This not only ensures a more uniform internal structure but also results in greater strength and reduced stress.
After forging, the rings undergo a series of tests to confirm their dimensional accuracy and mechanical properties such as tensile strength, yield strength, hardness, and elongation.
In summary, Incoloy 825, 925, and 800 alloy rings offer excellent strength, corrosion resistance, and durability, making them ideal for high-stress, high-temperature, and corrosive environments.

Grade UNS Density

Tensile Strength

(MPa min)

Yield Strength

(MPa min)

 Reduction of Area min (%) Elongation min (%) Hardness (HRC)
INCOLOY 825 N08825 8.14 586MPa min 241MPa min / 30% min HRC35 max
INCOLOY 925 N09925 8.08 965MPa min 724MPa min 25% 18% min HRC38 max
INCOLOY 800 N08800 7.94 448MPa min 172MPa min / 30% min HRC35 max

Production Process:

Heat Treatment Nickel Alloy Forged Metal Rings Incoloy 825/925/800 For Nuclear Industrial

Heat Treatment Nickel Alloy Forged Metal Rings Incoloy 825/925/800 For Nuclear Industrial
