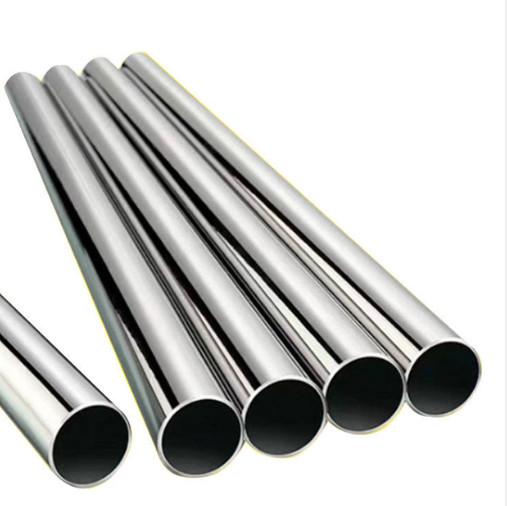

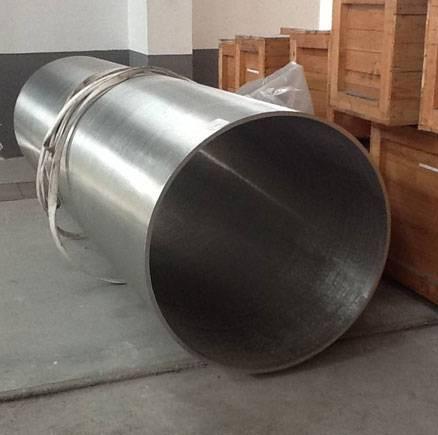

ASTM B575 Hastelloy C4 Welded Pipe for Oil Casing in Automotive Industry
ASTM B575 Hastelloy C4 Welded Pipe for Oil Casing in Automotive Industry
ASTM B575 Hastelloy C4 Welded Pipe for Oil Casing in Automotive Industry
ASTM B575 Hastelloy C4 Welded Pipe for Oil Casing in Automotive Industry
Specifications
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
(Sample order) 7 days
Packaging Details :
According to customers' requests
Brand Name :
DINGSCO
Model Number :
According to customers' requirements
Certification :
ISO 9001:2015,PED 2014/68/EU,API 6A,API-20B,TSG,NORSOK
Place of Origin :
China
Product Name :
Hastelloy C4 Welded Pipe
UNS :
N06455
Modulus of Elasticity :
30.8 x1000ksi
Elongation :
40%
Hardness :
100Rb
Yield Strength :
40ksi or 276Mpa
Description

Hastelloy C4 Welded Pipe ASTM B575 Metalworking Automotive Industry Oil Casing

1. As a leading Chinese Hastelloy alloy supplier, DINGSCO manufactures and produces different sizes of Hastelloy Alloy C-4 pipes.

2. HASTELLOY® C-4 alloy (UNS N06455) is the most (microstructurally) stable of the widely used nickel-chromium-molybdenum materials, which are well known for their resistance to many aggressive chemicals, in particular hydrochloric acid, sulfuric acid, and chlorides.

3.Hastelloy C-4 welded pipe & tube is a kind of Hastelloy C-4 pipe or tube formed by bending and welding the Hastelloy C-4 strip or Hastelloy C-4 plate, so the quality of raw materials is very important and decisive. In DINGSCO, we choose the raw materials from big factory and use the most advanced splitting and welding technology to manufacture every Hastelloy C-4 welded pipe & tube. If you need solution annealed Hastelloy C-4 welded pipe or tube to meet the higher demand, we can also anneal the pipe or tube with our online solid solution equipment.

4. Customized Dimensions

  • Outside Diameter (OD) 6~200mm
  • Wall Thickness (THK) 0.35~6.00mm
  • Length (L) 0.5~12m
  • The size can be customized according to ASME B36.10 / ASME B36.19

5. Standards for Hastelloy C-4 Welded Pipe & Tube

  • ASTM B619
  • ASTM B626
  • ASTM B751
  • ASTM B775
  • ASME SB 619
  • ASME SB 626
  • ASME SB 751
  • ASME SB 775

6. Surface to be Customized

  • Pickled Surface
  • Polished Surface

7. Chemical Compositions

S C P Co Fe Cr
0.03max 0.015max 0.04max 2max 3max

14-18
Si Mn Ti Cu Mo Ni
0.08max 1max 0.7max 0.5max 14-17 58.2-72

8. Physical Properties

Density g/cm3 8.64
lb/in3 0.312

9. Mechanical Properties

Condition & Size Tensile Strength

Yield Strength

(0.2%, offset)

 Elongation Reduction of Area Hardness
Mpa, min Mpa, min %, min %, min Rockwell B, max
All 690 276 40 ... ...

10. Progress Processing

ASTM B575 Hastelloy C4 Welded Pipe for Oil Casing in Automotive Industry

ASTM B575 Hastelloy C4 Welded Pipe for Oil Casing in Automotive Industry
