Rolling Nickel Plated Copper Strip For New Energy Vehicle Power Battery Cover
Rolling Nickel Plated Copper Strip For New Energy Vehicle Power Battery Cover
Rolling Nickel Plated Copper Strip For New Energy Vehicle Power Battery Cover
Rolling Nickel Plated Copper Strip For New Energy Vehicle Power Battery Cover
Rolling Nickel Plated Copper Strip For New Energy Vehicle Power Battery Cover
Rolling Nickel Plated Copper Strip For New Energy Vehicle Power Battery Cover
Rolling Nickel Plated Copper Strip For New Energy Vehicle Power Battery Cover
Rolling Nickel Plated Copper Strip For New Energy Vehicle Power Battery Cover
Rolling Nickel Plated Copper Strip For New Energy Vehicle Power Battery Cover
Rolling Nickel Plated Copper Strip For New Energy Vehicle Power Battery Cover
Rolling Nickel Plated Copper Strip For New Energy Vehicle Power Battery Cover
Rolling Nickel Plated Copper Strip For New Energy Vehicle Power Battery Cover
Specifications
Brand Name :
Dingfan
Model Number :
4NC
Place of Origin :
China
MOQ :
500 kg
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
100 tons per year
Delivery Time :
5-8 workdays
Packaging Details :
Standard Export Package
Thickness(mm) :
0.2,0.3,0.4,0.5T
Width :
3-500mm
Nickel plating thickness :
1um±0.5um
Chamfering (Edge treatment) :
20W~100W(mm) can be chamfered
Tensile strength :
(MPa) 150-170
Length :
Customized
Application :
Electronic Components
Certificate :
ISO9001, SGS
Elongation :
≥20%
Hardness :
≤HV100
Material :
Copper
Packing :
Standard Export Packing
Processing Technology :
Rolling
Product Name :
Nickel Plated Copper Strip
Surface Roughness :
Ra≤0.8μm
Surface Treatment :
Nickel Plated
Tensile Strength :
≥170N/mm2
Thickness :
0.1-3mm
Description

Nickel-Plated Copper Strip For New Energy Vehicle Power Battery Cover

Product Description

Material composition:

Copper: ■T2(C1100)

Alloy elements Cu+Ag Bi Sb As Fe Pb S … …
Copper/T2 99.98 0.001 0.002 0.002 0.001 0.005 0.005

Product structure:

Upper and lower composite (single panel)

Upper, middle and lower composite (double panel)

Single face composite,

Double-face composite

Right-right butt structure (transition row, transition piece)

4-sided all-inclusive structure (copper-clad aluminum row)

Can be customized without standard

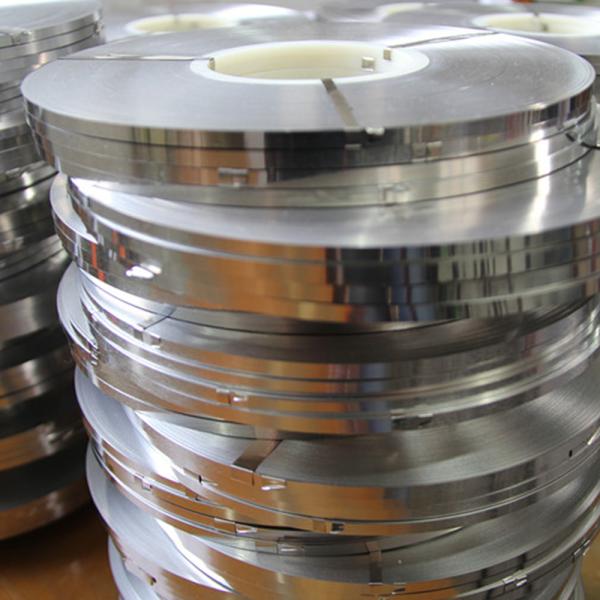

Product display

Rolling Nickel Plated Copper Strip For New Energy Vehicle Power Battery Cover

Rolling Nickel Plated Copper Strip For New Energy Vehicle Power Battery Cover

Scope of specifications:

Total thickness: □ 0.07 mm to 14.5 mm □ 0.1 mm to 60 mm□0.1 mm, 15 mm ■ can be customized without standard

Steel thickness of total thickness ratio: □5% □ 10% □15% □30% □25% □30% □＞30% ■ can be customized without standardSteel

layer length: ■ can be customized without standard

Width: ■ can be customized without standard

Length: ■ can be customized without standard

Use
- For lithium battery tabs (soft-packed cells)

Other physical properties

The resistivity: (Ωm㎡/m) ≦0.024

Elongation: (%) 15～30

Tensile strength: (MPa) 150-170

Peel strength: (N/mm) ＞12

Surface hardness: (HV 0.3) 76/37

Package

-Product packaging: Spool, plastic seal, and aluminum-plastic film seal packaging
- Outer packaging size: paper (L410mm*W410mm*H95mm)
- Product packaging inner diameter: 100mm and 200mm, or other inner diameters are optional.

FAQ

1.Are you trading or manufacturer ?
We are company,and we have our own factory

2.How long is your delivery time?

Quantity(kilograms) 1 - 500 >500
Est. Time(days) 10 To be negotiated

3.Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you have another question, pls feel free to contact us
