ASTM A494 M25S Nickel Copper Alloy Bush Castings High Temperature EB25012
ASTM A494 M25S Nickel Copper Alloy Bush Castings High Temperature EB25012
ASTM A494 M25S Nickel Copper Alloy Bush Castings High Temperature EB25012
ASTM A494 M25S Nickel Copper Alloy Bush Castings High Temperature EB25012
ASTM A494 M25S Nickel Copper Alloy Bush Castings High Temperature EB25012
ASTM A494 M25S Nickel Copper Alloy Bush Castings High Temperature EB25012
ASTM A494 M25S Nickel Copper Alloy Bush Castings High Temperature EB25012
ASTM A494 M25S Nickel Copper Alloy Bush Castings High Temperature EB25012
ASTM A494 M25S Nickel Copper Alloy Bush Castings High Temperature EB25012
ASTM A494 M25S Nickel Copper Alloy Bush Castings High Temperature EB25012
Specifications
Place of Origin :
China
Brand Name :
Eternal Bliss
Certification :
ISO9001-2008
Model Number :
EB25012
MOQ :
30 kg
Price :
USD13/ kg ~ USD85/ kg
Packaging Details :
Pallets
Delivery Time :
It depends on the quantity to be ordered.
Payment Terms :
by T/T or L/C, Western Union
Supply Ability :
100,000,000.00
Material Grade :
ASTM A494 M25S
Certificate :
ISO9001
Corrosion Resistance :
High
Surface Treatment :
Shot Blast
Cast Process :
Silica Sol Investment Cast Process
Application :
Valve Seat, bearing sleeve,pump shaft
Description

ASTM A494 M25S Nickel Copper Alloy Bush Castings High Temperature EB25012

ASTM A494 M25S Nickel Copper Alloy Bush Castings High Temperature EB25012

Because of the sticky and high surface extension force of metal drops of Nickel Base Alloy melting metal is inferior to carbon steel’s metal drops which have higher wetting effect; welder might have false impression that by raising welding current the metal pool’s wetting effect will be enhanced. Actually, using strong welding current will not improve the wetting effect, but instead will create more defects because the high heat will cause the melting pool’s deoxidizer to evaporate ; which will allow welding groove to form blow holes more easily.

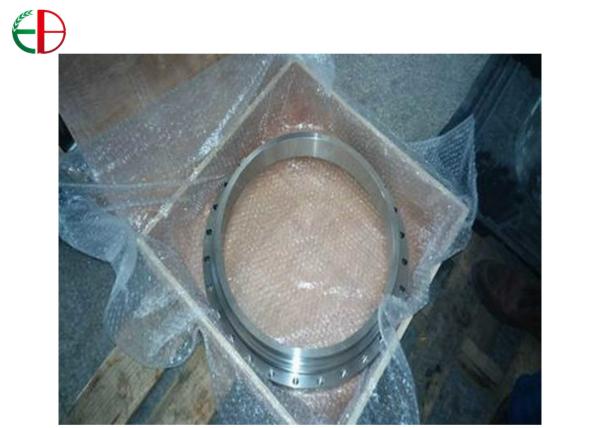

Items suitably crated to avoid damage during transit & storage one item per crate.

Quality Level: As per National Standard & International Standards.

Sizes available: Dia.50mm--1500mm.

Application Field: Mining Industry, Valve and Pump Industry,Heat-treatment Industry, Metallurgical Industry, Cement Industry,Power plants, Oil, Gas Industry.

Material Grade:

Metal No: Chemical Compostion(W%)
C Si Cr Mo Mn Fe Cu Ti Ai Ni
Ni200Z 1.00 2.00 -- -- 1.50 3.00 1.25 -- -- Bal
Ni202Z 0.15 3.30 -- -- -- -- -- B2.3 -- Bal
Ni205Z 0.12 1.00 16.50 17.00 1.00 6.50 -- W:4.50 V:0.30 Bal
Ni206Z 0.12 1.00 1.00 28.00 1.00 5.00 -- -- V:0.40 Bal
Ni207Z-NZ -- 1.20 25.00 11.00 -- -- -- -- -- Bal
Ni219Z -- -- 12.70 9.00 -- -- Be
2.0		 0.4 2 Bal
Ni222Z -- 0.50 22.00 13.00 0.70 4.00 　 -- -- Bal
Ni230 0.30 1.50 -- -- 1.50 3.50 30.00 Nb:2.00 -- Bal
Ni235 0.35 2.00 -- -- 1.50 3.50 30.00 Nb:0.50 -- Bal
Ni240Z 0.35 1.25 -- -- 1.50 3.50 29.50 Nb:0.50 -- Bal
Ni250Z 0.12 0.30 -- -- 1.50 2.00 27-33 0.60 3.00 68.00
Ni255 0.05 0.50 12.50 3.00 1.50 1.70 bi:4.00 sn:4.00 -- Bal
Ni260Z 0.40 3.00 15.5 -- 1.50 11.00 -- -- -- Bal
Ni262Z 0.06 1.00 21.5 9.5 1.00 5.00 -- Nb:4.00 -- Bal
Ni264 0.03 -- 60.00 -- -- 0.40 -- -- -- Bal
Ni274Z 0.02 0.80 16.00 16.5 1.00 2.00 -- W:1.00 -- Bal
Ni278Z 0.08 0.35 19.00 3.00 0.35 Bal 0.30
Co:1.00		 0.90
Nb:5.00		 0.60 53.00

Production Process

Step 1: Getting orders.

Step 2: Process design by technical department

Step 3: Purchase of raw materials and pattern making &checking

Step 4: Inspection of raw materials

Step 5: Melting by middle-frequency induction furnaces

Step 6: Ladle analysis by Spectrometer

Step 7: De-oxidization, slag-removal, tapping

Step 8: Pouring

Step 9: Openning & fettling

Step 10: Surface & dimensional check

Step 11: Heat treatment

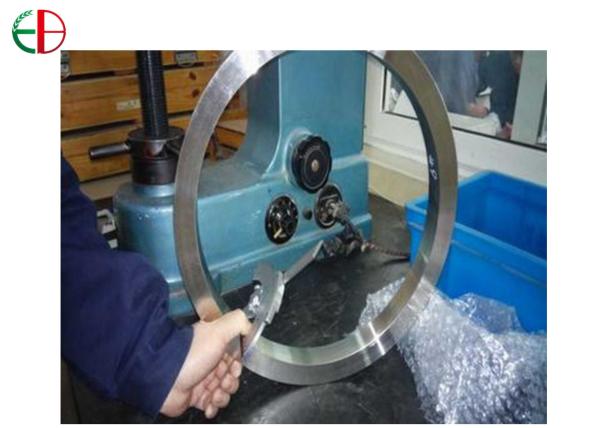

Step 12: Inspection of physical property (UT test,MT test, hardness,impact value µstructure)

Step 13: Packing

Step 14: Shipping

ASTM A494 M25S Nickel Copper Alloy Bush Castings High Temperature EB25012

1. 18-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.

Our Trade Show ASTM A494 M25S Nickel Copper Alloy Bush Castings High Temperature EB25012

Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.

Contact Us for further information about products & service:

Mr.John Liu

Project Manager

Cell: 0086-130 930 23772(What's App)

Tel: 0086-188 0059 6372

Fax: 0086-510-6879 2172

E-mail: cast@ebcasting.com； ebcastings@163.com

Skype ID:julia.zhu26

QQ: 217 039 6403

www.ebcastings.com

Eternal Bliss Alloy Casting & Forging Co.,LTD.

Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
