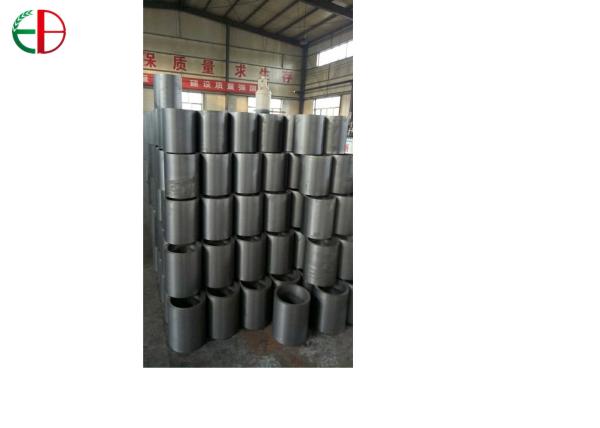

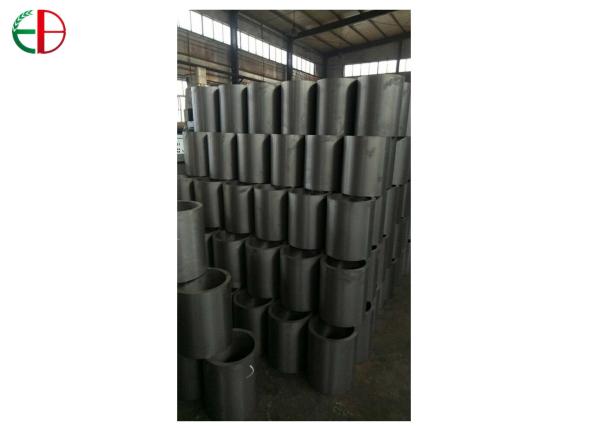

HT350 Centrifugally Cast Tubes Ductile Cast Iron Sleeves Fully Machined EB12219
HT350 Centrifugally Cast Tubes Ductile Cast Iron Sleeves Fully Machined EB12219
HT350 Centrifugally Cast Tubes Ductile Cast Iron Sleeves Fully Machined EB12219
HT350 Centrifugally Cast Tubes Ductile Cast Iron Sleeves Fully Machined EB12219
HT350 Centrifugally Cast Tubes Ductile Cast Iron Sleeves Fully Machined EB12219
HT350 Centrifugally Cast Tubes Ductile Cast Iron Sleeves Fully Machined EB12219
HT350 Centrifugally Cast Tubes Ductile Cast Iron Sleeves Fully Machined EB12219
HT350 Centrifugally Cast Tubes Ductile Cast Iron Sleeves Fully Machined EB12219
HT350 Centrifugally Cast Tubes Ductile Cast Iron Sleeves Fully Machined EB12219
HT350 Centrifugally Cast Tubes Ductile Cast Iron Sleeves Fully Machined EB12219
Specifications
Brand Name :
Eternal Bliss
Model Number :
EB12219
Certification :
ISO 9001
Place of Origin :
China
MOQ :
500kg
Price :
USD1~USD3/kg
Payment Terms :
by T/T or L/C, Western Union, Western Union
Supply Ability :
20,000 tons per year
Delivery Time :
It depends on the quantity to be ordered.
Packaging Details :
Pallets
Material Grade :
HT100, HT150, HT200, HT250,HT300, HT350
Cast Process :
Horizontal Centrifugal Cast
Surface Finish :
Ra6.3, Ra12.5
Hardness :
About HB200
Application Field :
Diesel Engine Cylinder
Description

HT350 Centrifugally Cast Tubes Ductile Cast Iron Sleeves Fully Machined EB12219

HT350 Centrifugally Cast Tubes Ductile Cast Iron Sleeves Fully Machined EB12219

Ductile iron is a family of cast graphitic irons possessing high strength, resistance to shock and ductility. Annealed cast ductile iron resists fracture even when it is being bent, twisted or deformed. Its strength, toughness and ductility greatly exceed that of standard gray irons and its properties are very similar to many grades of steel. Additionally Ductile Iron has a lower cost of casting procedure compared to steel; as well as the advantage of design flexibility.

Outstanding Features:

1.We use Spetrometer to control the chemlcal elements；

2.We check the matrix with our mlcroscope;

3.We can do fully machining on the sleeve parts.

4.We adopt Centrifugal Cast process with higher efficiency to shortening the process time;

5.Production Process: centrifugal cast process + machining process

6.We can make the cast sleeves as per customer design.

7.Diameter: 50mm - 500mm; Length: less than 400mm.

8.Material Grades:

Chemistry standard for Gray Iron

No. C Si Mn S P
HT100 3.2-3.8 2.1-2.7 0.5-0.8 <0.3 <0.15
HT150 3.0-3.7 1.8-2.4 0.5-0.8 <0.2 <0.12
HT200 3.0-3.6 1.4-2.2 0.6-1.0 <0.15 <0.12
HT250 2.9-3.5 1.4-2.1 0.7-1.1 <0.15 <0.12
HT300 2.8-3.4 1.3-1.8 0.8-1.2 <0.15 <0.12
HT350 2.7-3.2 1.1-1.7 0.9-1.4 <0.15 <0.12

HT350 Centrifugally Cast Tubes Ductile Cast Iron Sleeves Fully Machined EB12219

Production Flow Chart

Step 1: Getting orders.

Step 2: Process design by technical department

Step 3: Purchase of raw materials and pattern making &checking

Step 4: Inspection of raw materials

Step 5: Melting by middle-frequency induction furnaces

Step 6: Ladle analysis by Spectrometer

Step 7: De-oxidization, slag-removal, tapping

Step 8: Pouring

Step 9: Openning & fettling

Step 10: Surface & dimensional check

Step 11: Heat treatment

Step 12: Inspection of physical property (UT test,MT test, hardness,impact value, matrix structure)

Step 13: Packing

Step 14: Shipping

HT350 Centrifugally Cast Tubes Ductile Cast Iron Sleeves Fully Machined EB12219

1. 18-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.

Our Trade Show HT350 Centrifugally Cast Tubes Ductile Cast Iron Sleeves Fully Machined EB12219

Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.

Contact Us for further information about products & service:

Mr.John Liu

Project Manager

Tel: 0086-188 0059 6372

Fax: 0086-510-6879 2172

E-mail:cast@ebcastings.com；ebcastings@163.com

Skype ID:julia.zhu26

QQ: 217 039 6403

What's app: 0086-130 930 23772

www.ebcastings.com

Eternal Bliss Alloy Casting & Forging Co.,LTD.

Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China

Our Inspection Video:

https://www.youtube.com/watch?v=3Gr9ThIUgIA
