Description

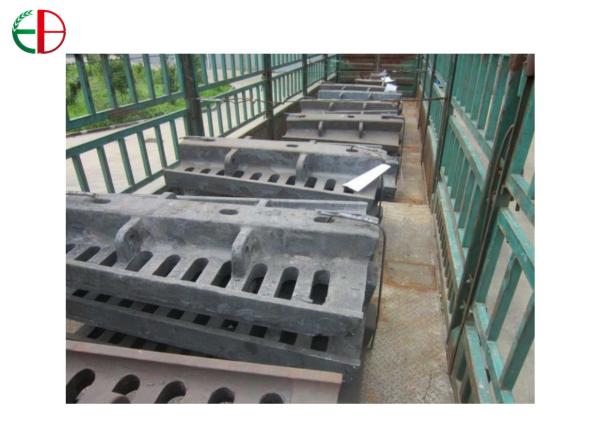

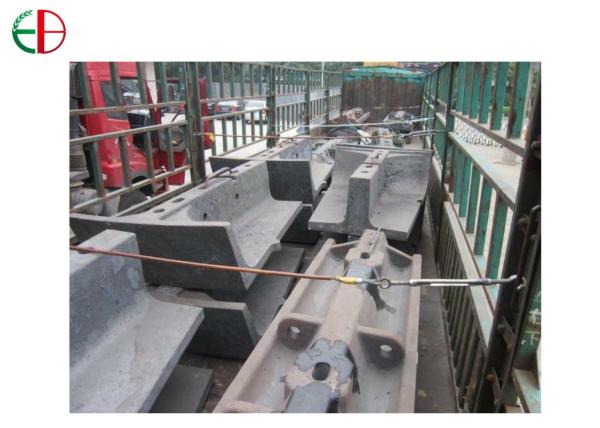

Large Cr-Mo Steel Liners for SAG Mills EB17002

Sand Process Large Cr-Mo Steel Liners Cr - Mo Alloy Steel Material Grade

Detailed Description:

Material Grade:Cr-Mo Alloy Steel;

Quality Level: As per National Standard & International Standards.

Production Process: Sand Process

Special Features:

1.The material of SAG mill liners are low C or high C Cr-Mo Alloy steel,which depends on the specific working condition of the SAG mill.

2.The hardness of AS2074 L2B is HB310-HB380.

3. We can make big size SAG mill liner castings with Sodium Silicate Sand Process & Resin Sand Process.

4. We can supply alloy steel SAG mill liner castings with proper heat-treatment process.

5. We can produce Cr-Mo alloy steel SAG Mill castings as per AS2074 L2B, L2C, GB/T 26651-2011.

6. Metallographic structure of AS2074 L2B Steel is Pearlitic.

7. Chemical Composition

Material Grade C Si Mn P S Cr Mo
AS2074 L2B 0.55-0.65 <0.75 0.50-1.00 <0.06 <0.06 0.80-1.50 0.20-0.40
AS 2074 L2C 0.70-0.90 <0.75 0.50-1.20 <0.06 <0.06 1.30-2.40 0.20-0.40
Sand Process Large Cr-Mo Steel Liners Cr - Mo Alloy Steel Material Grade
Sand Process Large Cr-Mo Steel Liners Cr - Mo Alloy Steel Material Grade

Production Process

Sand Process Large Cr-Mo Steel Liners Cr - Mo Alloy Steel Material Grade

Sand Process Large Cr-Mo Steel Liners Cr - Mo Alloy Steel Material Grade

1. 16-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.

Our Trade Show Sand Process Large Cr-Mo Steel Liners Cr - Mo Alloy Steel Material Grade

Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.
