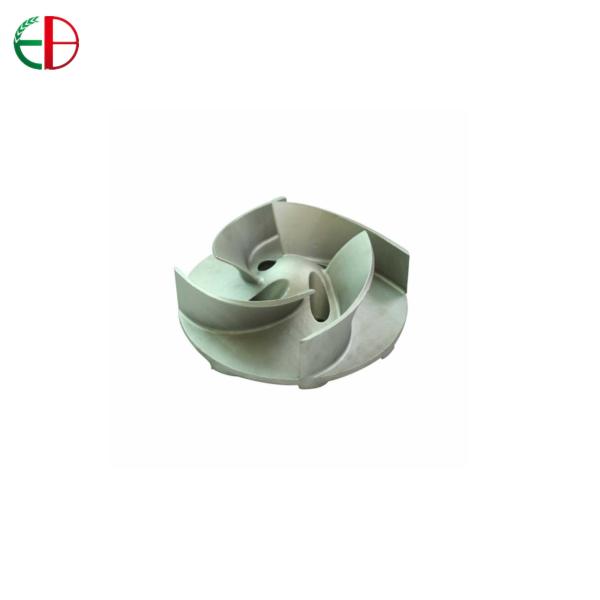

High Wear Resistance Copper Alloy Casting / High Precision Die Casting
High Wear Resistance Copper Alloy Casting / High Precision Die Casting
High Wear Resistance Copper Alloy Casting / High Precision Die Casting
High Wear Resistance Copper Alloy Casting / High Precision Die Casting
High Wear Resistance Copper Alloy Casting / High Precision Die Casting
High Wear Resistance Copper Alloy Casting / High Precision Die Casting
High Wear Resistance Copper Alloy Casting / High Precision Die Casting
High Wear Resistance Copper Alloy Casting / High Precision Die Casting
Specifications
Brand Name :
Eternal Bliss
Model Number :
EB9050
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
100kg
Price :
USD10/KG ~ USD20/KG
Payment Terms :
by T/T or L/C
Supply Ability :
2000 tons per year
Delivery Time :
It depends on the quantity to be ordered.
Packaging Details :
Pallets
Matrerial Grade :
UNS C90700 Tin Bronze,Copper Alloy Casting
Process :
Investment Casting,Sand Cast, Gravity Cast
Dimensions :
Customer's Drawings
Description

ASTM UNS C90700 Tin Bronze 65 high precision die casting EB9050

High Wear Resistance Copper Alloy Casting / High Precision Die Casting

We can make Al castings with Sand Cast Process, Investment Cast Process, Gravity Cast Process and DIe Cast Process.

We can produce copper based alloys including Tin Bronze, Manganese Bronze, Aluminum Bronze, Nickel Bronze and Phosphor Bronze.

The Tin Bronzes are used for the fittings under 550 F, gears, bushings, bearings, pump impellers.

Tin can strengthen these bronze alloys. Tin bronze is hard and has very high impact value. This combination of properties gives them better wear resistance and better corrosion resistance in seawater and brine.

Table 1 : Standard for Copper Alloys

UNS Cu Pb Sn Zn Fe P Ni Al Mg Mn S Sb Si
C90200 91-94 ≤0.30 6-8 ≤0.50 ≤0.20 ≤0.05 ≤0.50 ≤0.005 0 0 ≤0.05 ≤0.20 ≤0.005
C90250
Tin Bronze		 89-91 ≤0.30 9-11 ≤0.50 ≤0.25 ≤0.05 ≤2.0 ≤0.005 0 ≤0.20 ≤0.05 ≤0.02 ≤0.005
C90280 87-90 ≤0.30 9-11 ≤0.50 ≤0.25 ≤0.05 0 0 0 0 0.3-0.6 0 0
C90300
Tin Bronze		 86-89 ≤0.30 7.5-9.0 3.0-5.0 ≤0.20 ≤0.05 ≤1.0 ≤0.005 0 0 ≤0.05 ≤0.20 ≤0.005
C90400 Tin Bronze 86-89 ≤0.09 7.5-8.5 1.0-5.0 ≤0.40 ≤0.05 ≤1.0 ≤0.005 0 0.01-0.20 0.10-0.65 ≤0.02 ≤0.005
C90410 Tin Bronze 86-89 ≤0.09 7.5-8.5 1.0-5.0 ≤0.40 ≤0.05 ≤1.0 ≤0.005 0 0.01-0.20 0.10-0.65 ≤0.03 ≤0.005
C90420
Tin Bronze		 86-89 ≤0.09 7.5-8.5 1.0-5.0 ≤0.40 ≤0.05 ≤1.0 0 0 ≤0.20 0.10-0.65 ≤0.02 0
C90430 Low-Lead Tin Bronze 86-89 ≤0.09 7.5-8.5 1.0-5.0 ≤0.40 ≤0.05 ≤1.0 0 0 ≤0.20 0.10-0.65 0.1-1.5 0
C90500 Gun Metal 86-89 ≤0.09 9-11 1.0-3.0 ≤0.20 ≤0.05 ≤1.0 ≤0.005 0 0 ≤0.05 ≤0.20 ≤0.005
C90700 Tin Bronze,65 88-90 ≤0.50 10-12 ≤0.50 ≤0.15 ≤0.30 ≤0.50 ≤0.005 0 0 ≤0.05 ≤0.20 ≤0.005

Production Process

High Wear Resistance Copper Alloy Casting / High Precision Die Casting

High Wear Resistance Copper Alloy Casting / High Precision Die Casting

1. 18-year Foundry Operation Experience.

2. Friendly & High Efficient Technical & Commercial Communication.

3. Professional Export Practices: Have Exported to +60 Overseas Countries.

Our Trade Show High Wear Resistance Copper Alloy Casting / High Precision Die Casting

Our booth No. 14-A29-5 in Newcast 2015,Germany

Hall 14, Stand No.A29-5.

Contact Us for further information about products & service:

Mr.John Liu

Project Manager

Tel: 0086-188 0059 6372

Fax: 0086-510-6879 2172

E-mail:ebcastings@163.com;cast@ebcastings.com

Skype ID:julia.zhu26

QQ: 217 039 6403

www.ebcastings.com

Eternal Bliss Alloy Casting & Forging Co.,LTD.

Add.: J-Sci-Tech Park, Binhu District,Wuxi,214122, Jiangsu,China
