QT600-3 270HB Ductile Iron Heat Resistant Cast Steel Slag Pots
QT600-3 270HB Ductile Iron Heat Resistant Cast Steel Slag Pots
QT600-3 270HB Ductile Iron Heat Resistant Cast Steel Slag Pots
QT600-3 270HB Ductile Iron Heat Resistant Cast Steel Slag Pots
QT600-3 270HB Ductile Iron Heat Resistant Cast Steel Slag Pots
QT600-3 270HB Ductile Iron Heat Resistant Cast Steel Slag Pots
QT600-3 270HB Ductile Iron Heat Resistant Cast Steel Slag Pots
QT600-3 270HB Ductile Iron Heat Resistant Cast Steel Slag Pots
Specifications
Brand Name :
Eternal Bliss
Model Number :
EB4039
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1 Piece
Price :
USD 1.40~3.10/Kilogram
Payment Terms :
By T/T or L/C
Supply Ability :
10000 Tons Per Year
Delivery Time :
It depends on the quantity to be ordered.
Packaging Details :
Pallets
Material :
Heat-resistant Cast Iron
Grade :
QT600-3
Dimensions :
Drawings
Hardness :
180-270HB
Surface Treatment :
Maching
Capactities :
10 Tons,20 Tons,25 Tons,etc
Process :
Sand Cast Process
Quality Control :
100% Inspected
Description

QT600-3 Casting Slag Pot, Ductile Iron Slag Pot Sand Casting Slag Pots

QT600-3 270HB Ductile Iron Heat Resistant Cast Steel Slag Pots

Product Description:

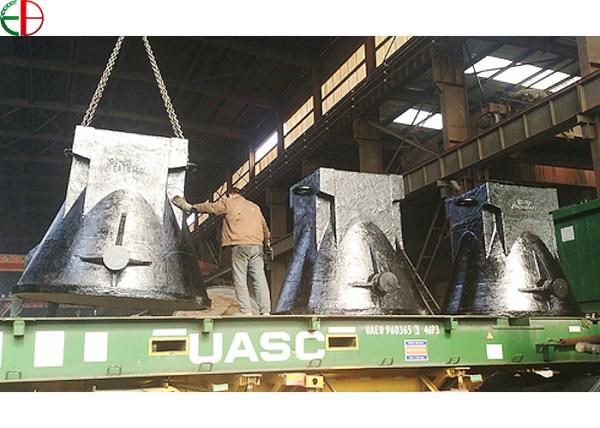

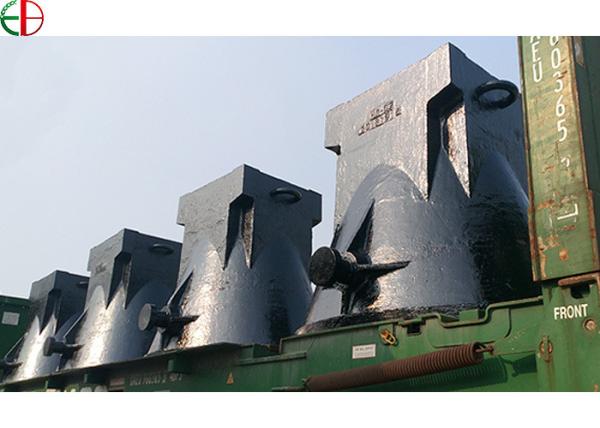

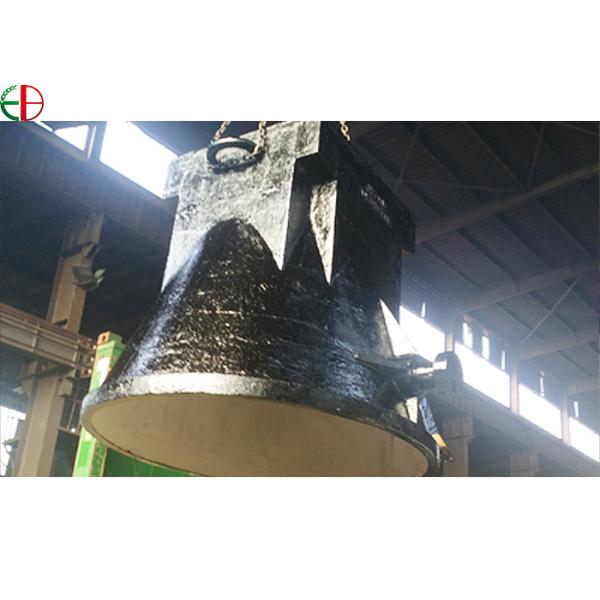

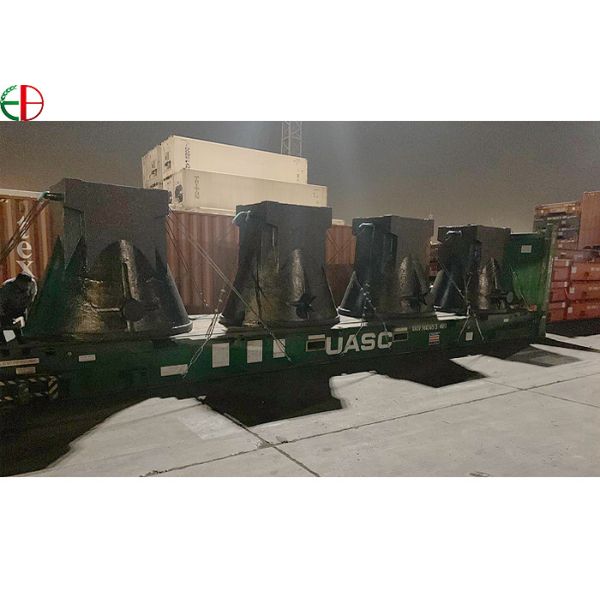

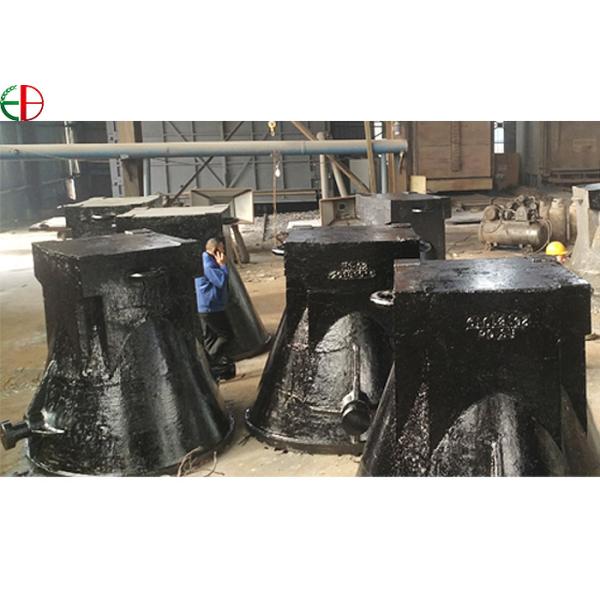

The Slag Pot is an important equipment in steelmaking production. It is a container for high-temperature

slag produced during the smelting process of steel. It has a bowl-shaped container with lifting trunnions

on both sides.

Slag Pot purchased by metallurgical companies generally use the traditional casting process, which has a

long manufacturing cycle, short service life, and a large number of scraps. Great Wall Cast Steel has

increased innovation in the production of slag tanks, and its slag tanks have a short casting period and a

long service life Strong anti-deformation ability.

The Trends for Material Selection:
Due to obvious advantages in terms of service life,maintenance and cost-efficiency, cast steel has been

becoming more significant in the melting pot construction over the last few years against both materials,

spheroidal cast-iron and lamellar graphite cast-iron. In comparison with other materials, cast steel offers

excellent repair possibilities as it is well-suited to welding.

Detailed Description:
Material: Heat Resistant Cast Iron, QT600-3;
Quality Level: As per National Standard & International Standards.
Production Process: Sand Process Heat-treatment Process.
Including machining process,such as drilling and tapping holes.

Special Features:
1. We can make big size alloy steel castings with Sodium Silicate Sand Process.
2. We can supply finished alloy steel castings with heat-treatment and machining process.
3. We can produce alloy Steel castings as per ASTM A27, GB/T 20878, DIN 17440, DIN 17224, AISI, ASTM,

JIS SUH35, NF A35-572/584, BS970,BS1449, ISO 683/13.
4. The biggest steel castings we can achieve so far is 300 tons per piece.

Chemical Composition(%)

C

Si

Mn

P

S

Mg

Hardness

QT600-3

3.00-3.80

2.00-2.80

0.30-0.70

≤0.06

≤0.06

0.035-0.050

180-270HB

Product Details:

QT600-3 270HB Ductile Iron Heat Resistant Cast Steel Slag PotsQT600-3 270HB Ductile Iron Heat Resistant Cast Steel Slag PotsQT600-3 270HB Ductile Iron Heat Resistant Cast Steel Slag Pots
